约翰迪尔零件查询93 - BACKHOE BOOM 93 ( -005700), 93 SERIES A ( -007400), 94 ( -001800), 95 ( -002450), 95 SEREPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 877 次

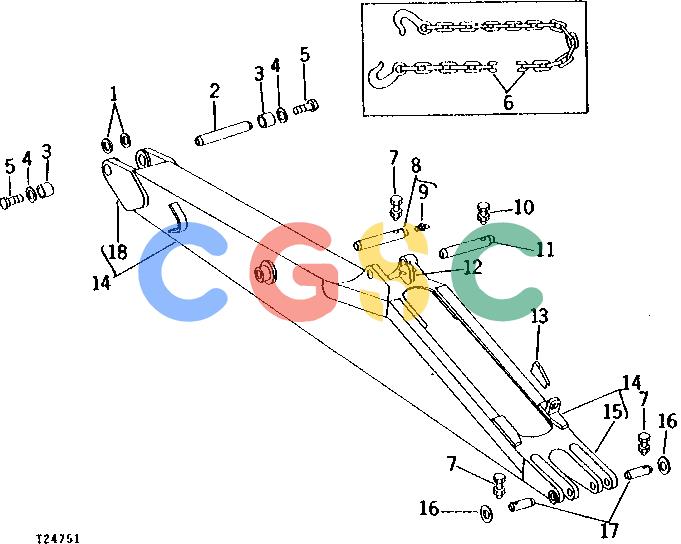

Pos.	Part No	Qty	Parts name	Comments
1.	........	[2]	Washer	( 24H1579 NO LONGER AVAILABLE)
2.	U43448	[1]	Pin	BOOM TO DIPPERSTICK
3.	U43177	[2]	Tapered Sleeve
4.	U43445	[2]	Spacer
5.	19H1768	[2]	Cap Screw	HS, SAE 8, 3/4" X 2"
6.	........	[1]	Lock	( AU13613 NO LONGER AVAILABLE) (83" HOOK EYE TO HOOK EYE) (FOR 93 BACKHOE)
6.	........	[1]	Link Chain	( AU13629 NO LONGER AVAILABLE) (105" HOOK EYE TO HOOK EYE) (FOR 95 BACKHOE)
7.	19H1781	[3]	Cap Screw	HS, SAE 8, 1/2" X 3-1/2"
7.	BP12214	[3]	Lock Nut	(SUB FOR U12622)
8.	AU13296	[1]	Pin
9.	JD7759	[1]	Lubrication Fitting	STRAIGHT, 1/8"
10.	19H1868	[1]	Cap Screw	HS, SAE 8, 1/2" X 3-3/4"
10.	BP12214	[1]	Lock Nut	(SUB FOR U12622)
11.	U15822	[1]	Pin
12.	........	[1]	Hook	(FOR 93 BACKHOE) ( U16295 NO LONGER AVAILABLE)
12.	........	[1]	Hook	(FOR 95 BACKHOE) ( U16295 NO LONGER AVAILABLE)
13.	T43740	[1]	Wedge	(FOR 93 SERIES A BACKHOE) (SUB FOR U16970)
13.	T43740	[1]	Wedge	(FOR 94 BACKHOE) (SUB FOR U16970)
13.	T43740	[1]	Wedge	(FOR 95 SERIES A BACKHOE) (SUB FOR U16970)
14.	........	[1]	Backhoe Boom	( AU44031 NO LONGER AVAILABLE) (SUB FOR AU13293, AU40897 AND AU41073)
14.	........	[1]	Backhoe Boom	( AU44031 NO LONGER AVAILABLE) (SUB FOR AU42843)
15.	U15797	[1]	Pivot	LOWER BOOM
16.	U11650	[AR]	Washer
17.	U15845	[2]	Pin
18.	........	[1]	Pivot	UPPER BOOM (FOR BACKHOES WITH AU41067 OR AU41073 BOOM) ( U46742 NO LONGER AVAILABLE) (ALSO ORDER U46745, BP12214, 19H3544 AND 24H1579)
