约翰迪尔零件查询93 - BACKHOE BOOM 93 SERIES A (007401- ), 94 (001801- ) AND 95 SERIES A (003101- ) [A23]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 544 次

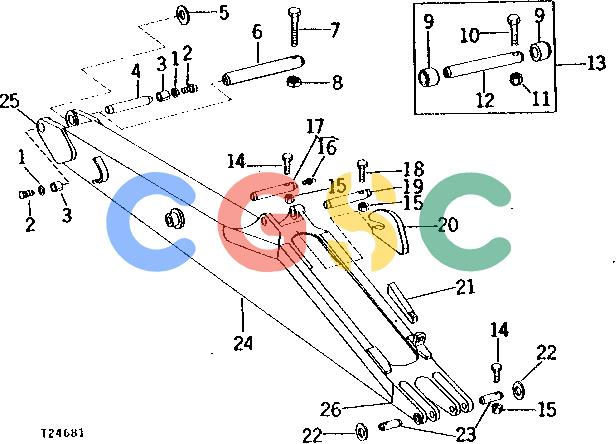

Pos.	Part No	Qty	Parts name	Comments
1.	U43445	[2]	Spacer	(B) (BOOM WITHOUT BOSS)
2.	19H2717	[2]	Cap Screw	(B) HS, SAE 8, 3/4" X 1-3/4" (BOOM WITHOUT BOSS)
3.	U43177	[2]	Tapered Sleeve	(B) (BOOM WITHOUT BOSS)
4.	U43448	[1]	Pin	(B) BOOM TO DIPPERSTICK (BOOM WITHOUT BOSS)
5.	24H1579	[2]	Washer	(A) 1-27/32" X 2-1/2" X 1/4", (BOOM TO DIPPERSTICK)
6.	U46745	[1]	Pin Fastener	(A) (BOOM TO DIPPERSTICK) (BOOM WITH BOSS)
7.	19H3544	[1]	Cap Screw	(A) 1/2" X 4-1/2", (BOOM WITH BOSS)
8.	BP12214	[1]	Lock Nut	(A) (BOOM WITH BOSS) (SUB FOR U12622)
9.	T37130	[2]	Bushing
10.	19H1868	[1]	Cap Screw	1/2" X 3-3/4"
11.	BP12214	[1]	Lock Nut	(SUB FOR U12622)
12.	T37131	[1]	Pin Fastener
13.	AT35981	[1]	Kit	WITH BOSS, PIN CHANGEOVER, BOOM TO DIPPERSTICK (USED WHEN AU42843 BOOM WITHOUT BOSS HAS BEEN INSTALLED)
14.	19H1781	[3]	Cap Screw	HS, SAE 8, 1/2" X 3-1/2"
15.	BP12214	[4]	Lock Nut	(SUB FOR U12622)
16.	JD7759	[1]	Lubrication Fitting	STRAIGHT, 1/8"
17.	AU13296	[1]	Pin
18.	19H1868	[1]	Cap Screw	HS, SAE 8, 1/2" X 3-3/4"
19.	U15822	[AR]	Pin	(1 USED WITH BUCKET CYLINDER) (TWO USED WITH CROWD CYLINDER)
20.	........	[1]	Hook	(B) (A) ( U16295 NO LONGER AVAILABLE)
21.	T43740	[1]	Wedge	(SUB FOR U16970)
22.	U11650	[AR]	Washer
23.	U15845	[2]	Pin
24.	........	[1]	Backhoe Boom	INCLUDES ALL PARTS IDENTIFIED BY (B) (SUB FOR AU41067) (SUB AU44031)
24.	........	[1]	Backhoe Boom	( AU44031 NO LONGER AVAILABLE) INCLUDES ALL PARTS IDENTIFIED BY (A)
25.	........	[1]	Pivot	(A) UPPER BOOM ( U46742 NO LONGER AVAILABLE)
26.	U15797	[1]	Pivot	(B) (A) LOWER BOOM
