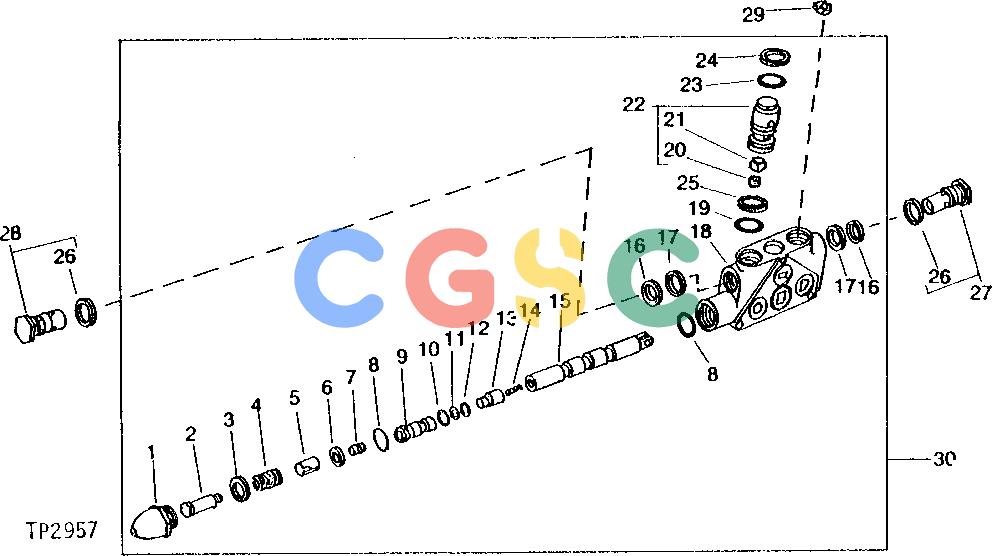

约翰迪尔零件查询93 - BACKHOE BOOM VALVE FOR AU41807 AND AU41809 CONTROL VALVES 93 ( -005700) AND 95 ( -002450) 93 SERIEEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 214 次

Pos.	Part No	Qty	Parts name	Comments
1.	AU41892	[1]	Cap	(SUB FOR U11335)
2.	U11428	[1]	Bolt
3.	N31767	[1]	Washer
4.	U11336	[1]	Spring
5.	........	[1]	Bushing	( U13358 NO LONGER AVAILABLE)
6.	U11345	[1]	Washer
7.	........	[1]		( U13947 NO LONGER AVAILABLE)
8.	T57247	[2]	O-Ring
9.	U41390	[1]	Plug
10.	R394R	[1]	O-Ring	(A)
11.	U15414	[1]	Ring	(A)
12.	A3917R	[1]	O-Ring	(A)
13.	U41168	[1]	Check Valve	ANTI-CAVITATION
14.	U41170	[1]	Spring
15.	........	[1]	Spool	(SUB AU40914)
16.	U11326	[2]	O-Ring
17.	P51212	[2]	O-Ring
18.	........	[1]	Housing	(SUB AU40914)
19.	R27928	[1]	O-Ring	(A)
20.	U16015	[1]	Spring
21.	U16016	[1]	Poppet
22.	AU13748	[1]	Check Valve	(INCLUDES U16015 AND U16016)
23.	32240	[1]	O-Ring	(A)
24.	U40729	[1]	Back-Up Ring	(A)
25.	U40728	[1]	Back-Up Ring	(A)
26.	32240	[2]	O-Ring
27.	AU40527	[1]	Pressure Relief Valve	20 685 KPA (207 BAR) (3000 PSI)
28.	AU40529	[1]	Pressure Relief Valve	16 376 KPA (164 BAR) (2375 PSI)
29.	U11425	[1]	Orifice	5.56 MM (.219")
30.	........	[1]	Valve	( AU40914 NO LONGER AVAILABLE)
...	AU13654	[1]	Kit	O-RING AND SEAL REPAIR
