约翰迪尔零件查询93 - BACKHOE SWING CYLINDER 93 SERIES-A, 94, AND 95 SERIES-A [F02]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 150 次

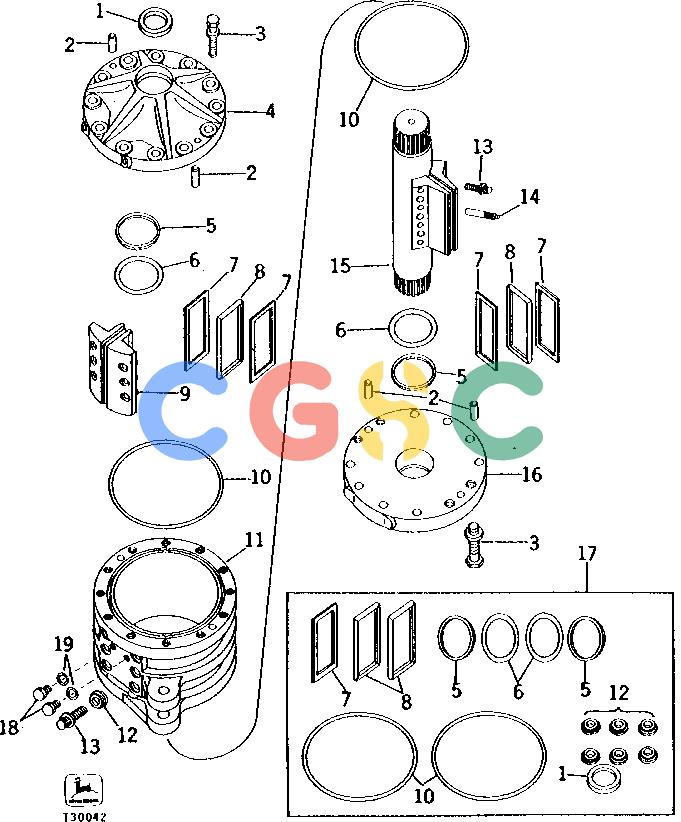

Pos.	Part No	Qty	Parts name	Comments
1.	T34330	[1]	Bushing
2.	U16334	[4]	Dowel Pin
3.	19H3158	[24]	Cap Screw	3/4" X 2", (USE WITH U41094)
3.	19H3158	[4]	Cap Screw	3/4" X 2", (USE WITH R78440)
3.	19H2406	[20]	Cap Screw	3/4" X 3-3/4", (USE WITH R78440)
3.	R78019	[24]	Washer	(SUB FOR T21397)
4.	R70412	[1]	Plate	TOP, (SUB FOR U41096 AND T50783)
5.	U41101	[2]	Back-Up Ring
6.	F950R	[2]	O-Ring
7.	........	[4]	Packing	( U41340 USE IF AVAILABLE)
8.	........	[2]	Seal	( U41104 USE IF AVAILABLE)
9.	U41092	[1]	Vane
10.	U10624	[2]	O-Ring
11.	R78440	[1]	Hydraulic Cylinder Barrel	(SUB FOR U41094) (ALSO ORDER (4) U16334 AND (20) 19H2406)
12.	U41562	[6]	Washer	(SUB FOR U41105)
13.	R70141	[12]	Screw	(SUB FOR U41350 AND U41561, THIS APPLICATION)
14.	R69970	[8]	Stud	(SUB FOR U12071)
15.	AU40710	[1]	Stator
16.	U41095	[1]	Plate	BOTTOM
17.	AU40976	[1]	Kit	REPAIR SWING CYLINDER
18.	R27218	[2]	Fitting Plug
19.	R26448	[2]	O-Ring
...	AR92369	[1]	Cylinder	ROTARY SWING, (SUB FOR AU40708 AND AT49349)
