约翰迪尔零件查询93 - BACKHOE OIL LINES AND FITTINGS-STABILIZER AND SWING CIRCUIT 95 SERIES A BACKHOE [F13]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 587 次

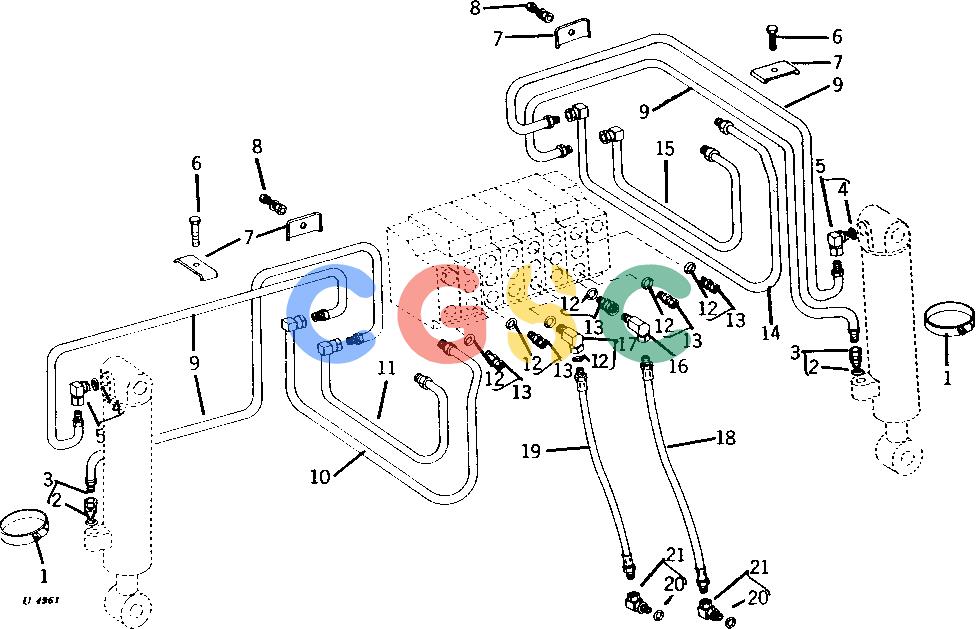

Pos.	Part No	Qty	Parts name	Comments
1.	AU13630	[2]	Clamp
2.	R26375	[2]	O-Ring	(SUB FOR U10778)
3.	AU11569	[2]	Adapter
4.	R26375	[2]	O-Ring
5.	AN31756	[2]	Elbow Fitting	90°
6.	19H1849	[2]	Cap Screw	5/16" X 1-1/4"
7.	U10516	[4]	Hose Clamp
8.	19H1849	[2]	Cap Screw	5/16" X 1-1/4"
8.	12H326	[2]	Lock Washer	9/16"
8.	14H785	[2]	Nut	5/16"
9.	AU11576	[4]	Hydraulic Hose - Fabricate	1 829 MM (3/8" X 72")
9.	AU41217	[4]	Hydraulic Hose	(SUB FOR AU11828) 1 930.4 MM (1/4" X 76")
10.	........	[1]	Tube	( AU13398 NO LONGER AVAILABLE) UPPER, R.H.
11.	........	[1]	Tube	( AU13400 NO LONGER AVAILABLE) LOWER, R.H.
12.	R26906	[6]	O-Ring
13.	AW10633	[5]	Adapter
14.	........	[1]	Tube	( AU13399 NO LONGER AVAILABLE) UPPER, L.H.
15.	........	[1]	Tube	( AU13401 NO LONGER AVAILABLE) LOWER, L.H.
16.	U11461	[1]	Elbow Fitting	90°
17.	AW10635	[1]	Elbow Fitting	90°
18.	AH12285	[1]	Hydraulic Hose	508 MM (3/8" X 20")
19.	AU40481	[1]	Hydraulic Hose	559 MM (3/8" X 22") (SUB FOR AW11014, THIS APPLICATION)
20.	R26448	[2]	O-Ring
21.	AU11669	[2]	Elbow Fitting	90°
