约翰迪尔零件查询9300 - BACKHOE OIL LINES AND FITTINGS-BACKHOE BOOM, CROWD AND BUCKET CYLINDERS [D04]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 566 次

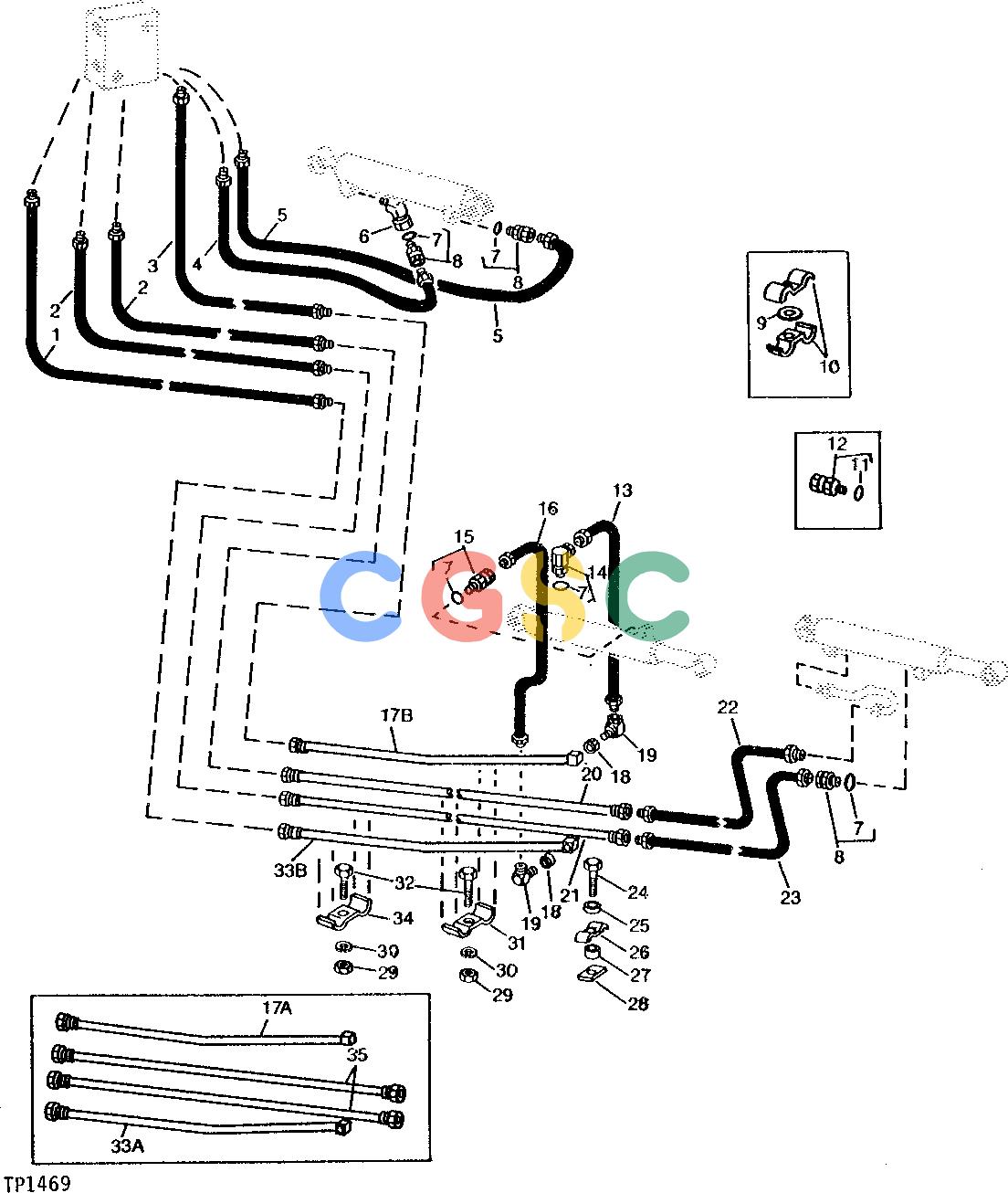

Pos.	Part No	Qty	Parts name	Comments
1.	AU40429	[1]	Hydraulic Hose - Fabricate	MANIFOLD BLOCK TO L.H. CROWD CYLINDER 1 397 MM LONG (1/2" X 55")
2.	TY3010	[2]	Hydraulic Hose	1 168 MM (1-1/2" X 46") LONG MANIFOLD BLOCK TO BUCKET TUBES, (SUB FOR AU13295, THIS APPLICATION)
3.	AT33004	[1]	Hydraulic Hose - Fabricate	1 321 MM (1/2" X 52") LONG
4.	AT34934	[1]	Hydraulic Hose - Fabricate	2 159 MM (1/2" X 85") LONG
4.	AU13294	[1]	Hydraulic Hose - Fabricate	1 270 MM (1/2" X 50") LONG
5.	TY3013	[1]	Hydraulic Hose	(SUB FOR AU10852) 2 235 MM (1/2" X 88") LONG
6.	JD184	[1]	Elbow Fitting	45°
7.	R26906	[5]	O-Ring
8.	AU11753	[3]	Union Fitting
9.	M1407T	[1]	Washer
10.	U13055	[2]	Clamp
11.	R26906	[1]	O-Ring
12.	AU11753	[1]	Union Fitting
13.	AU10862	[1]	Hydraulic Hose - Fabricate	572 MM (1/2" X 22-1/4") LONG
14.	AU11752	[1]	Fitting	(HEAD END)
15.	AU11753	[1]	Union Fitting	(SUB FOR AU11752, THIS APPLICATION) (ROD END)
16.	AU10861	[1]	Hydraulic Hose - Fabricate	864 MM (1/2" X 34") LONG
17A.	AU11679	[1]	Tube	(A) CROWD CYLINDER, L.H.
17B.	AT64862	[1]	Tube	(B) CROWD CYLINDER, L.H.
18.	14H873	[2]	Nut	1-1/4"
19.	U16163	[2]	Elbow Fitting	90°
20.	AT64860	[1]	Tube	(B) L.H.
21.	AT64861	[1]	Tube	(B) R.H.
22.	AU10810	[1]	Hydraulic Hose - Fabricate	775 MM (1/2" X 30-1/2") LONG
23.	AU10810	[1]	Hydraulic Hose - Fabricate	775 MM (1/2" X 30-1/2") LONG
23.	AU13294	[1]	Hydraulic Hose - Fabricate	1 270 MM (1/2" X 50") LONG
24.	19H1765	[1]	Cap Screw	3/8" X 1-3/4"
25.	N10445	[1]	Bushing	(SUB FOR T26144, THIS APPLICATION)
26.	U13055	[1]	Clamp
27.	28H2481	[1]	Spacer	3/8" X 1/2"
28.	T38968	[1]	Strap
29.	14H812	[2]	Nut	3/8"
30.	12H304	[2]	Lock Washer	3/8"
31.	U10737	[1]	Clamp	L.H.
32.	19H3065	[2]	Cap Screw	3/8" X 2"
33A.	AU11678	[1]	Tube	(A) CROWD CYLINDER R.H.
33B.	AT64862	[1]	Tube	(B)
34.	U10736	[1]	Clamp	R.H.
35.	AT33003	[2]	Tube	(A)
