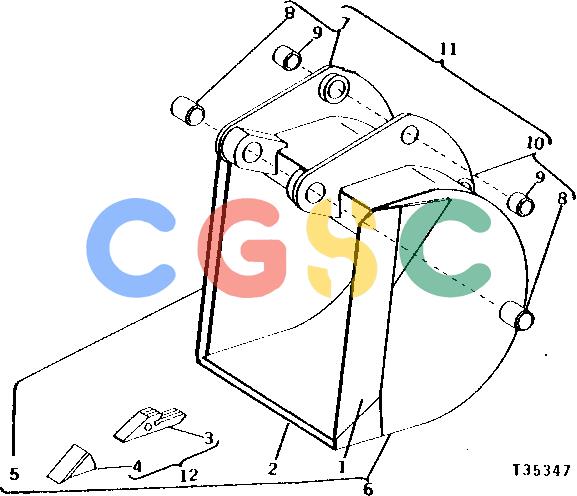

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | U42744 | [1] | Cutting Edge | SIDE, R.H. |
| 2. | U42753 | [1] | Cutting Edge | FRONT, FOR 457 MM (18") BUCKET |
| 2. | U42752 | [1] | Cutting Edge | FRONT, FOR 609 MM (24") BUCKET |
| 2. | U42754 | [1] | Cutting Edge | FRONT, FOR 762 MM (30") BUCKET |
| 2. | U42755 | [1] | Cutting Edge | FRONT, FOR 914 MM (36") BUCKET |
| 3. | U14436 | [AR] | Shank | (4 USED WITH 457 MM (18") AND 609 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKET, 6 USED WITH 914 MM (36") BUCKET) |
| 4. | U14437 | [AR] | Point | (4 USED WITH 457 MM (18") AND 609 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKET, 6 USED WITH 914 MM (30") BUCKET) |
| 5. | U42745 | [1] | Cutting Edge | SIDE, L.H. |
| 6. | ........ | [1] | Backhoe Bucket | STANDARD, 457 MM (18") ( AT37729 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) |
| 6. | ........ | [1] | Backhoe Bucket | STANDARD, 609 MM (24") ( AT37730 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) |
| 6. | ........ | [1] | Backhoe Bucket | STANDARD 762 MM (30") ( AT37731 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) |
| 6. | ........ | [1] | Backhoe Bucket | STANDARD 914 MM (36") ( AT37732 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) |
| 7. | ........ | [1] | Plate | (SUB AT36087) |
| 8. | U42738 | [2] | Bushing | |
| 9. | U42737 | [4] | Bushing | |
| 10. | ........ | [1] | Plate | (SUB AT36087) |
| 11. | AT36087 | [1] | Plate | BACK (4 USED WITH 457 MM (18") AND 609 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKET, AND 6 USED WITH 914 MM (36") BUCKET) (SUB U14436 ALONG WITH U14437) ( AU12534 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) |
