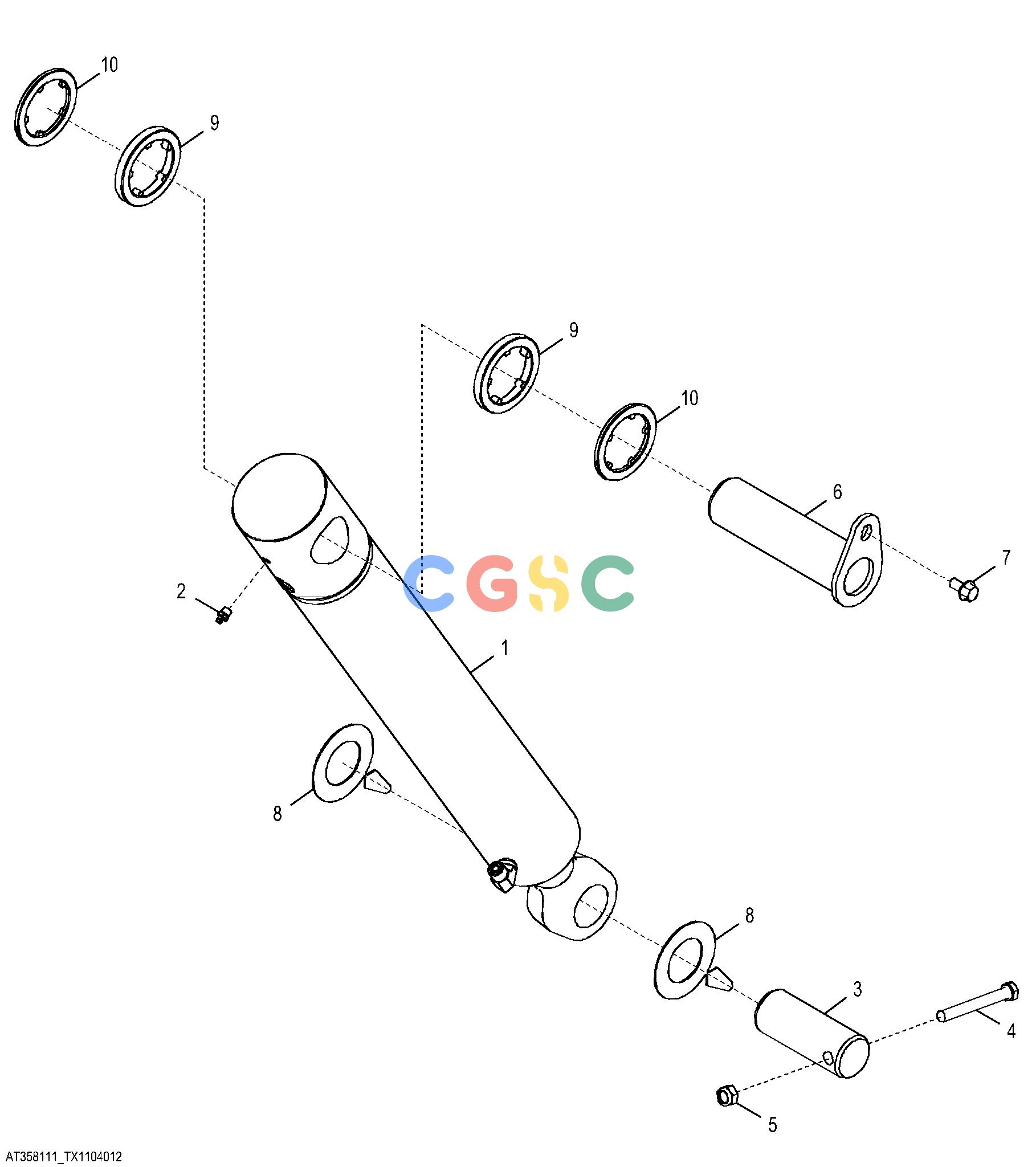

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AHC11115 | [1] | Hydraulic Cylinder | COMPONENTS LISTED ON SEPARATE PAGE |
| 2. | T162396 | [1] | Lubrication Fitting | |
| 3. | T244675 | [1] | Pin Fastener | |
| 4. | 19M7949 | [1] | Cap Screw | M12 X 100 |
| 5. | 14M7319 | [1] | Lock Nut | M12 |
| 6. | AT356868 | [1] | Pin Fastener | |
| 7. | 19M7784 | [1] | Screw | M10 X 20 |
| 8. | T223740 | [2] | Shim | |
| 9. | T160303 | [2] | Spacer | |
| 10. | T160300 | [2] | Wear Plate |
