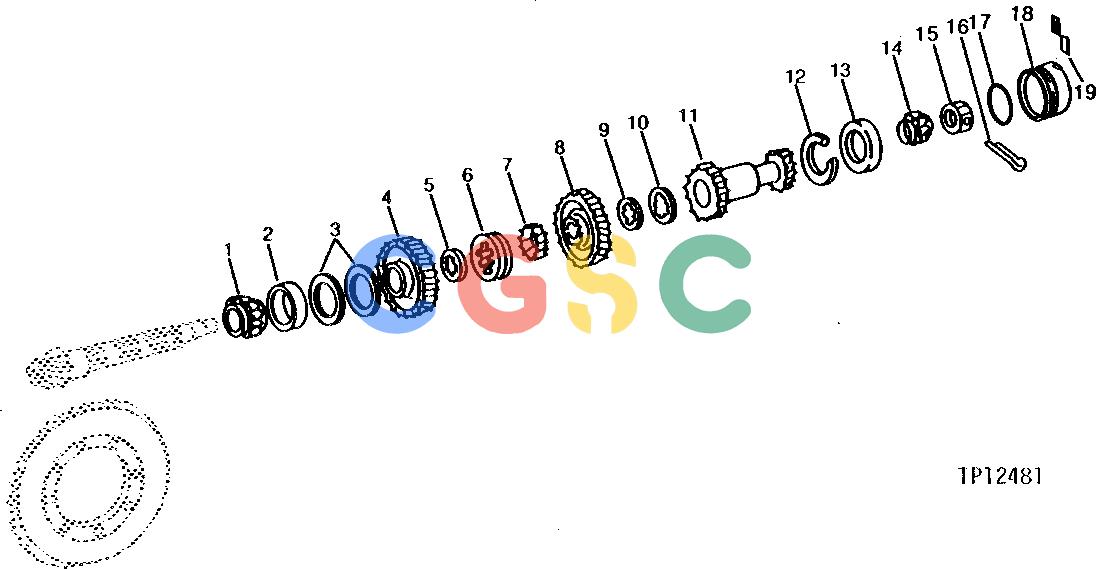

约翰迪尔零件查询315CH - BACKHOE, LOADER DIFFERENTIAL DRIVE SHAFT ASSEMBLY [01D04]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
707 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
JD8997
|
[1] |
Bearing Cone
|
|
| 2. |
JD8255
|
[1] |
Bearing Cup
|
|
| 3. |
T31792
|
[AR] |
Shim
|
|
| 3. |
T31793
|
[AR] |
Shim
|
|
| 3. |
T31794
|
[AR] |
Shim
|
|
| 4. |
T112973
|
[1] |
Gear
|
|
| 5. |
R55721
|
[1] |
Thrust Washer
|
|
| 6. |
T21970
|
[1] |
Shift Collar
|
|
| 7. |
T21964
|
[1] |
Sleeve
|
|
| 8. |
T78397
|
[1] |
Gear
|
|
| 9. |
R55722
|
[1] |
Thrust Washer
|
|
| 10. |
R56473
|
[1] |
Thrust Washer
|
|
| 11. |
T78398
|
[1] |
Gear
|
|
| 12. |
T19242
|
[1] |
Snap Ring
|
|
| 13. |
JD8257
|
[1] |
Bearing Cup
|
|
| 14. |
AR94761
|
[1] |
Bearing Cone
|
|
| 15. |
14H927
|
[1] |
Nut
|
|
| 16. |
11M7040
|
[1] |
Cotter Pin
|
|
| 17. |
T122076
|
[1] |
O-Ring
|
|
| 18. |
T100019
|
[1] |
Cover
|
|
| 19. |
T100021
|
[1] |
Strap
|
|
