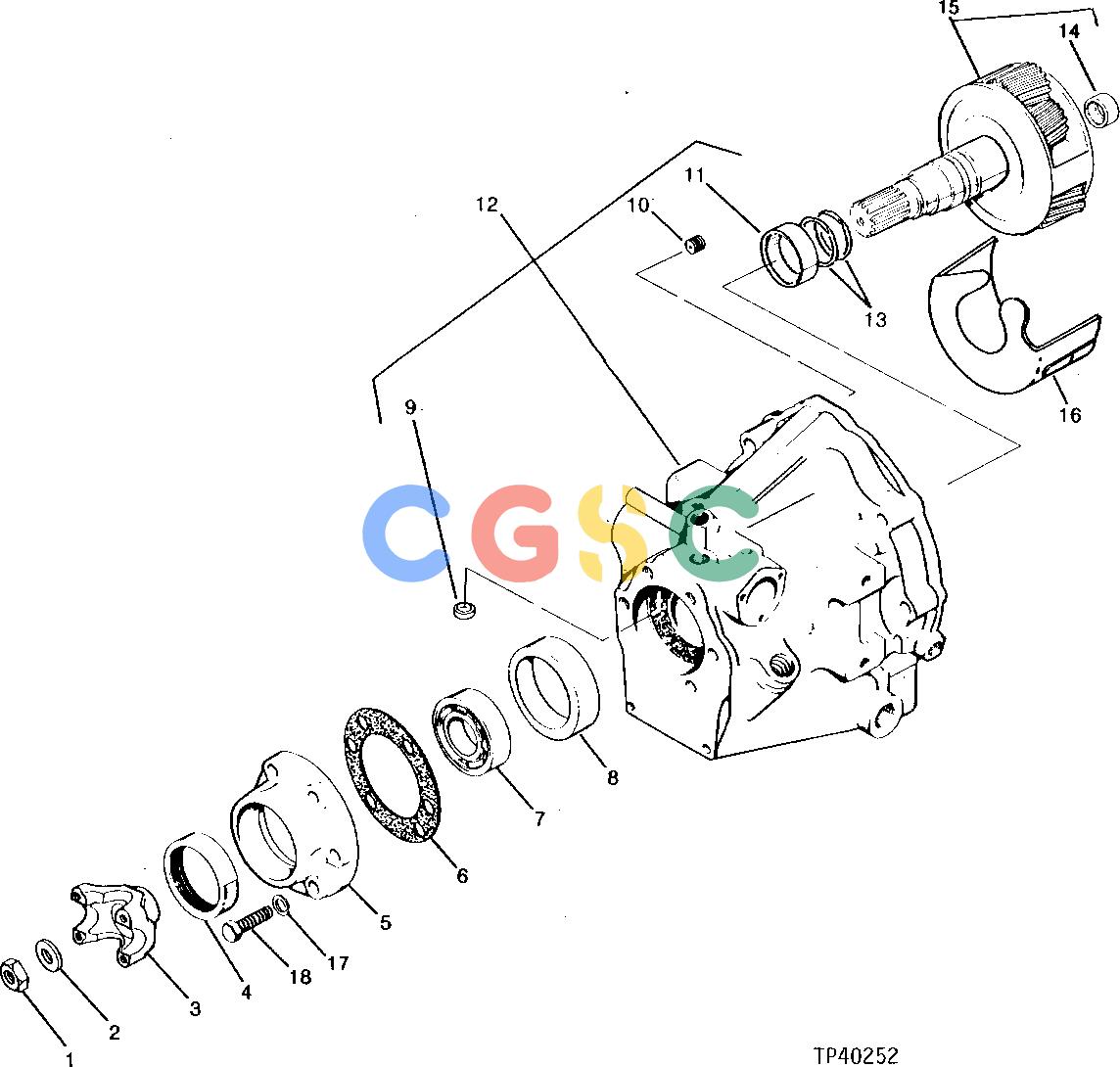

约翰迪尔零件查询315CH - BACKHOE, LOADER REVERSER CARRIER ASSEMBLY [01D05]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
969 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
N101345
|
[1] |
Lock Nut
|
|
| 2. |
T101035
|
[1] |
Washer
|
|
| 3. |
T100739
|
[1] |
Yoke
|
|
| 4. |
AN152163
|
[1] |
Seal
|
|
| 5. |
T101018
|
[1] |
Retainer
|
|
| 6. |
........
|
[1] |
Gasket
|
|
| 7. |
JD8518
|
[1] |
Ball Bearing
|
|
| 8. |
T101019
|
[1] |
Spacer
|
|
| 9. |
T101061
|
[1] |
Plug
|
|
| 10. |
T101062
|
[1] |
Plug
|
|
| 11. |
JD8861
|
[1] |
Needle Bearing
|
|
| 12. |
AT101474
|
[1] |
Case
|
|
| 13. |
........
|
[2] |
Ring
|
|
| 14. |
JD10352
|
[1] |
Needle Bearing
|
|
| 15. |
AT101448
|
[1] |
Planet Pinion Carrier
|
|
| 16. |
T133315
|
[1] |
Deflector
|
|
| 17. |
12H293
|
[6] |
Lock Washer
|
|
| 18. |
19H1773
|
[6] |
Cap Screw
|
|
