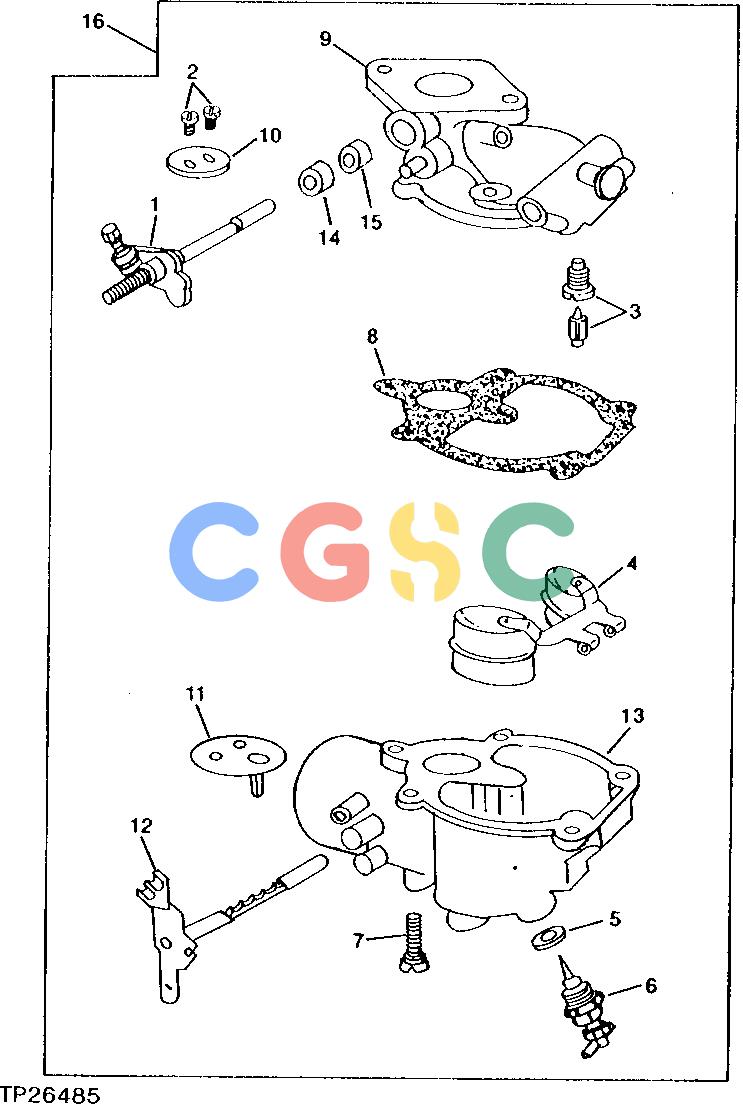

约翰迪尔零件查询410 - BACKHOE, LOADER REPLACEMENT CARBURETOR [01E16]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RE19405
|
[1] |
Shaft
|
|
| 2. |
E49903
|
[4] |
Screw
|
|
| 3. |
AH80032
|
[1] |
Valve
|
|
| 4. |
RE19403
|
[1] |
Float
|
|
| 5. |
H20925
|
[1] |
Washer
|
|
| 6. |
RE39190
|
[1] |
Jet
|
|
| 7. |
........
|
[1] |
Screw With Washer
|
|
| 8. |
........
|
[1] |
Washer
|
|
| 9. |
........
|
[1] |
Housing
|
|
| 10. |
........
|
[1] |
Cover
|
|
| 11. |
........
|
[1] |
Cover
|
|
| 12. |
........
|
[1] |
Shaft
|
|
| 13. |
........
|
[1] |
Bowl
|
|
| 14. |
........
|
[1] |
Bushing
|
|
| 15. |
........
|
[1] |
Bushing
|
|
| 16. |
RE39188
|
[1] |
Carburetor
|
|
| 16. |
RE39189
|
[1] |
Carburetor
|
|
