约翰迪尔零件查询410 - BACKHOE, LOADER POWER STEERING VALVE, HOUSING, WHEEL AND SHAFT (SERIAL NO. -235785) [01G08]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 822 次

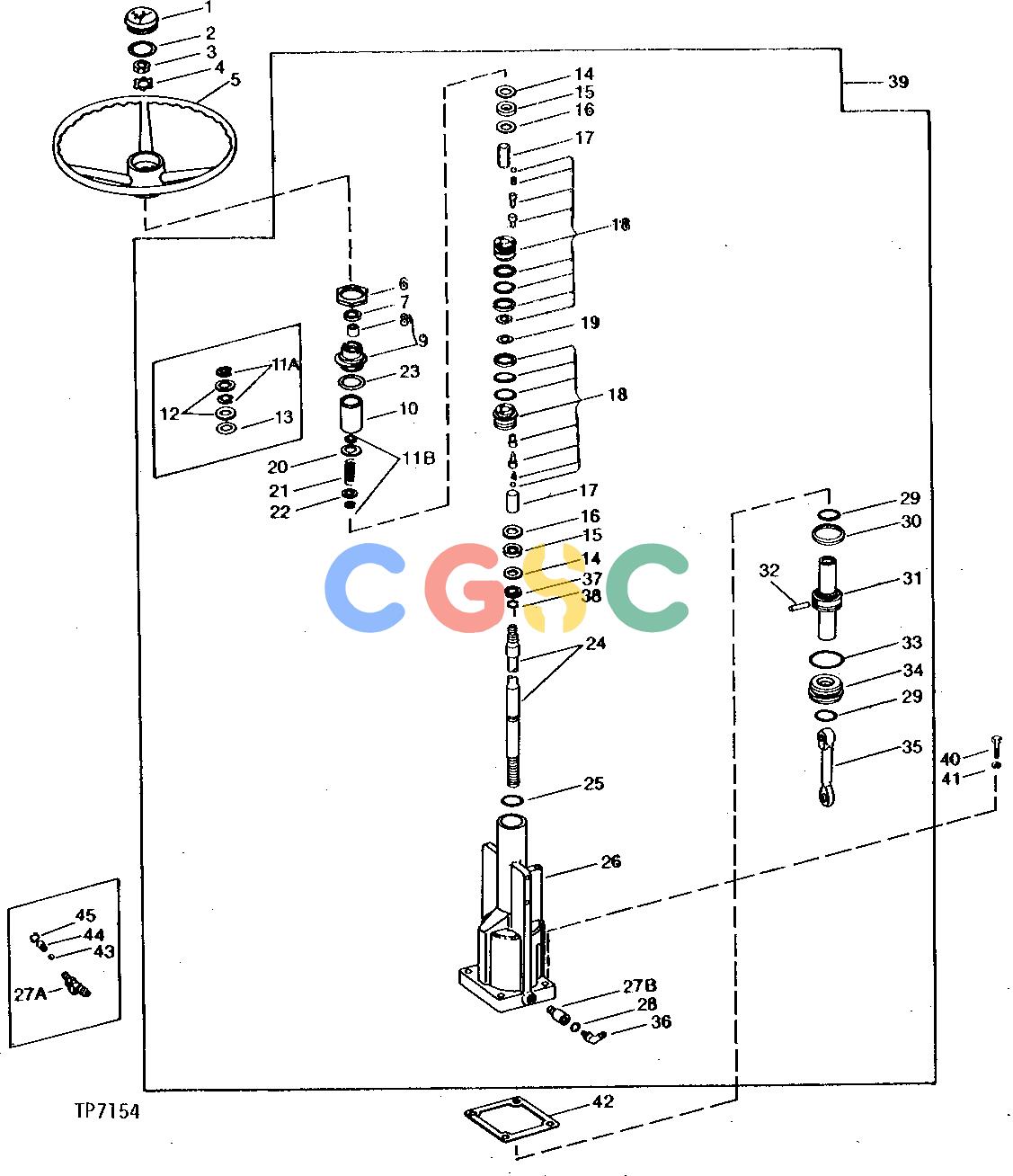

Pos.	Part No	Qty	Parts name	Comments
1.	AL155227	[1]	Cover	(SUB FOR R47998 OR AL118173)
2.	P50631	[1]	O-Ring	(A) (SUB FOR B3690R, THIS APPLICATION)
3.	14H904	[1]	Nut	3/4"
4.	R71650	[1]	Lock Washer	(SUB FOR T17148, THIS APPLICATION)
5.	AR78405	[1]	Steering Wheel	(SUB FOR T22875, THIS APPLICATION)
6.	T21718	[1]	Nut
7.	T22260	[1]	Seal	(A)
8.	R27320	[1]	Bushing
9.	AT19858	[1]	Adjuster
10.	T22823	[1]	Sleeve
11A.	R35226	[3]	Snap Ring	(A)
11B.	R35226	[2]	Snap Ring
12.	T22824	[2]	Round Retainer	(USED WITH T34249 STEERING SHAFT)
13.	T25741	[2]	Shim	0.05 MM (.002") (USED WITH T34249 STEERING SHAFT)
13.	T22825	[6]	Shim	0.13 MM (.005") (USED WITH T34249 STEERING SHAFT)
14.	T21716	[2]	Washer
15.	JD9832	[2]	Thrust Bearing
16.	T25329	[2]	Washer
17.	T25330	[2]	Bushing
18.	AR81610	[2]	Housing	(SUB FOR AT25490)
18.	R49982	[2]	Sleeve	VALVE OPERATING
18.	T25333	[AR]	Shim	0.05 MM (0.002")
18.	T25334	[AR]	Shim	0.25 MM (0.010")
19.	T27409	[2]	Washer
20.	T22824	[1]	Round Retainer
21.	T13555	[1]	Spring
22.	L29197	[1]	Thrust Washer
23.	B3690R	[1]	O-Ring
24.	T34249	[1]	Shaft	(SUB T43602 STEERING SHAFT, T13555 SPRING, AND L29197 WASHER)
24.	T43602	[1]	Steering Shaft
25.	T25335	[6]	O-Ring	(A)
26.	AT33296	[1]	Housing	(MARKED T31729) (SUB AT72460)
26.	AT72460	[1]	Housing	(MARKED T74743 OR T82325) (SUB FOR AT41310)
27A.	AT38033	[1]	Elbow Fitting	(SUB FOR AR26722, THIS APPLCATION)
27A.	AT37206	[1]	Elbow Fitting	(SUB AT54132) (ALSO ORDER AT35121)
27B.	AT54132	[1]	Check Valve
28.	R26448	[1]	O-Ring	(A)
29.	T34248	[2]	O-Ring	(A)
30.	........	[1]	Piston Ring	(A) ( T34246 NO LONGER AVAILABLE)
31.	T34244	[1]	Piston
32.	T34247	[1]	Pin
33.	T34252	[1]	O-Ring
33.	T35893	[1]	O-Ring	(A)
34.	T34251	[1]	Guide	(SUB T35892 AND T35893)
34.	T35892	[1]	Guide	(SUB T40194)
34.	T40194	[1]	Guide
35.	T34245	[1]	Tie Rod Assembly
36.	AT35121	[1]	Elbow Fitting	(USE WITH AT54132)
37.	T22824	[1]	Round Retainer
38.	R35226	[1]	Snap Ring
39.	........	[1]	Valve	(STEERING) ( AT73462 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
40.	19H2735	[4]	Cap Screw	1/2" X 2"
41.	12H301	[4]	Lock Washer	1/2"
42.	T34253	[1]	Gasket	(A)
43.	R26552	[1]	Ball	(USED WITH AT37206)
44.	T38448	[1]	Spring	(USED WITH AT37206)
45.	T38449	[1]	Retainer	(USED WITH AT37206)
...	AT43532	[1]	Kit	OVERHAUL STEERING VALVE
