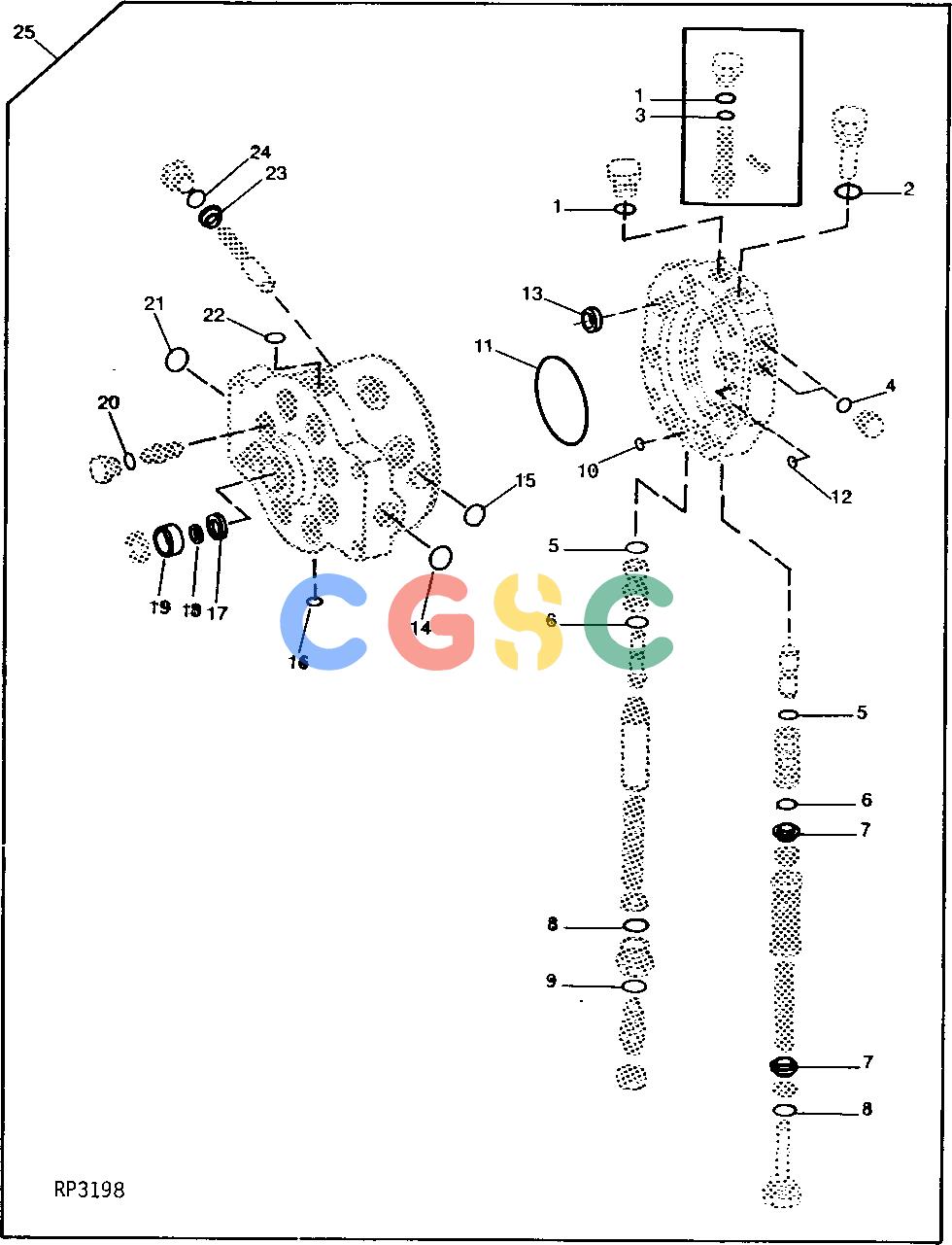

约翰迪尔零件查询410 - BACKHOE, LOADER NON-SERIALIZED HYDRAULIC PUMP AND STROKE CONTROL VALVE OVERHAUL KIT 66 CM3 (4 IN.3) [01H08]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R26448
|
[1] |
O-Ring
|
|
| 2. |
R26906
|
[1] |
O-Ring
|
|
| 3. |
A4365R
|
[1] |
O-Ring
|
|
| 4. |
R26287
|
[2] |
O-Ring
|
|
| 5. |
R27564
|
[2] |
O-Ring
|
|
| 6. |
R27166
|
[2] |
O-Ring
|
|
| 7. |
R27174
|
[2] |
Packing
|
|
| 8. |
R56751
|
[2] |
O-Ring
|
|
| 9. |
R28782
|
[1] |
O-Ring
|
|
| 10. |
R56755
|
[1] |
Washer
|
|
| 11. |
R56757
|
[1] |
O-Ring
|
|
| 12. |
R63548
|
[1] |
O-Ring
|
|
| 13. |
R107239
|
[8] |
Packing
|
|
| 14. |
U13639
|
[1] |
O-Ring
|
|
| 15. |
R56751
|
[1] |
O-Ring
|
|
| 16. |
R26287
|
[1] |
O-Ring
|
|
| 17. |
R39729
|
[1] |
O-Ring
|
|
| 18. |
R56753
|
[1] |
Shim
|
|
| 19. |
RE28790
|
[1] |
Seal
|
|
| 20. |
R27149
|
[8] |
O-Ring
|
|
| 21. |
R56751
|
[1] |
O-Ring
|
|
| 21. |
R29936
|
[1] |
O-Ring
|
|
| 22. |
R27928
|
[2] |
O-Ring
|
|
| 22. |
P47908
|
[1] |
O-Ring
|
|
| 23. |
AR101237
|
[1] |
Shield
|
|
| 24. |
R56751
|
[8] |
O-Ring
|
|
| 25. |
RE29104
|
[1] |
Kit
|
|
