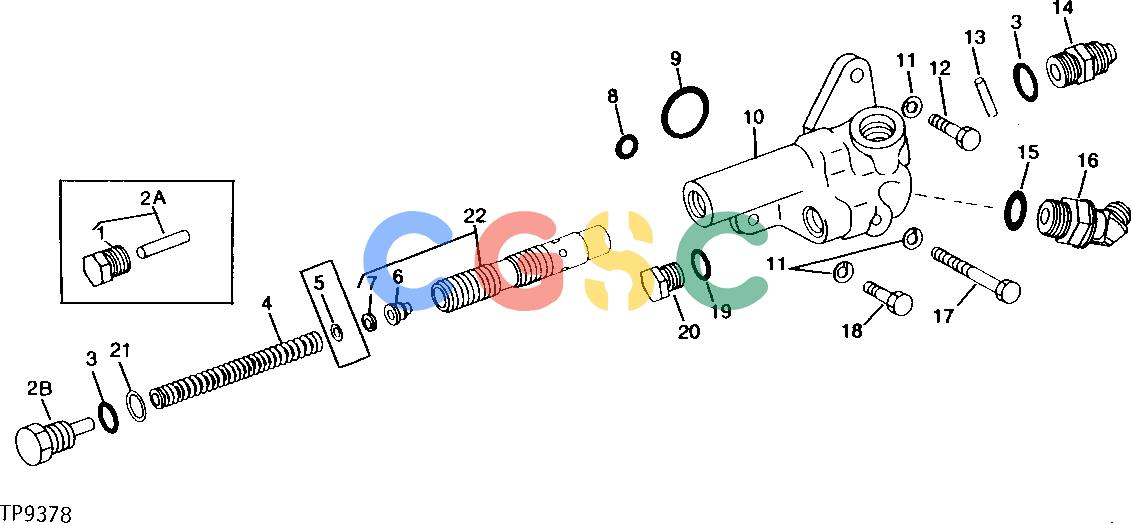

约翰迪尔零件查询410 - BACKHOE, LOADER PRESSURE CONTROL VALVE [01I03]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
596 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R27474
|
[1] |
Drain Plug
|
|
| 2A. |
AR26761
|
[1] |
Plug
|
|
| 2B. |
R63494
|
[1] |
Fitting
|
|
| 3. |
R26906
|
[2] |
O-Ring
|
|
| 4. |
R40072
|
[1] |
Spring
|
|
| 5. |
R33521
|
[AR] |
Shim
|
|
| 6. |
R40562
|
[1] |
Aperture
|
|
| 7. |
........
|
[1] |
Washer
|
|
| 8. |
R28776
|
[1] |
O-Ring
|
|
| 9. |
R60332
|
[1] |
O-Ring
|
|
| 10. |
T120368
|
[1] |
Housing
|
|
| 11. |
12H304
|
[3] |
Lock Washer
|
|
| 12. |
19H2633
|
[1] |
Cap Screw
|
|
| 13. |
R39324
|
[1] |
Dowel Pin
|
|
| 14. |
T34887
|
[1] |
Adapter Fitting
|
|
| 15. |
U12547
|
[1] |
O-Ring
|
|
| 16. |
AT33033
|
[1] |
Fitting
|
|
| 17. |
19H2458
|
[1] |
Cap Screw
|
|
| 18. |
19H3483
|
[1] |
Cap Screw
|
|
| 19. |
R26375
|
[1] |
O-Ring
|
|
| 20. |
R39112
|
[1] |
Fitting
|
|
| 21. |
R33521
|
[AR] |
Shim
|
|
| 22. |
AR65882
|
[1] |
Control Valve
|
|
