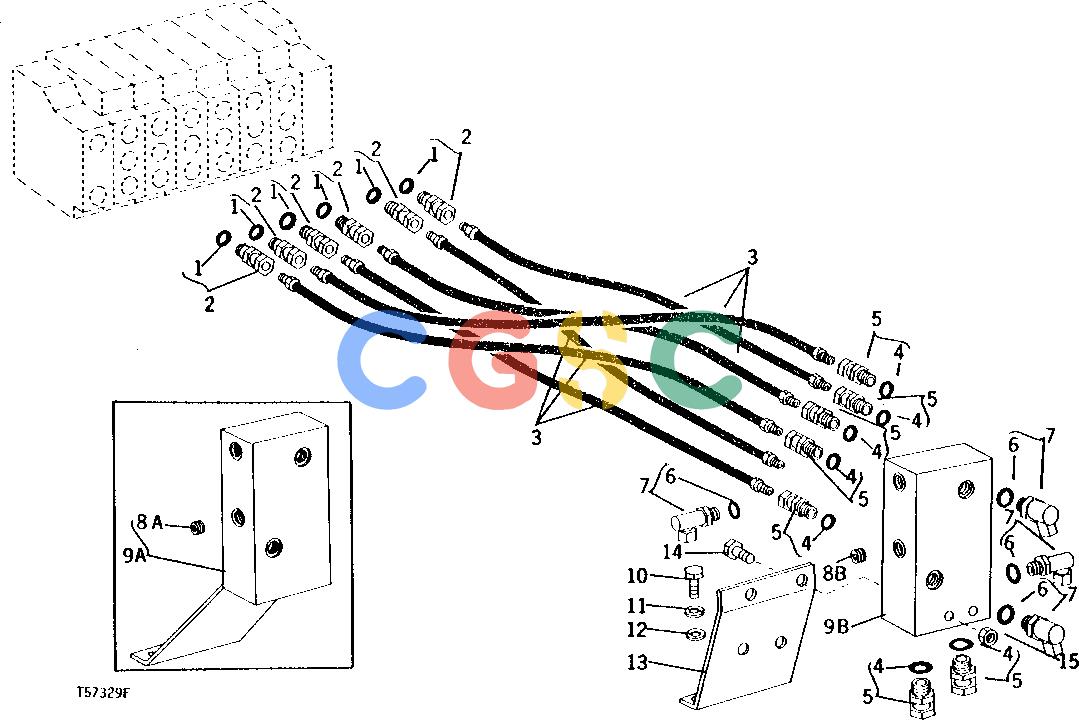

约翰迪尔零件查询410 - BACKHOE, LOADER OIL LINES AND FITTINGS (BACKHOE CONTROL VALVE TO MANIFOLD BLOCK) [02H20]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R26906
|
[6] |
O-Ring
|
|
| 2. |
AU11753
|
[6] |
Union Fitting
|
|
| 3. |
AU11507
|
[6] |
Hydraulic Hose - Fabricate
|
|
| 4. |
R26375
|
[8] |
O-Ring
|
|
| 5. |
AH16917
|
[8] |
Adapter Fitting
|
|
| 6. |
R26375
|
[4] |
O-Ring
|
|
| 7. |
AU11849
|
[4] |
Adapter Fitting
|
|
| 8A. |
15H666
|
[2] |
Pipe Plug
|
|
| 8B. |
15H666
|
[2] |
Pipe Plug
|
|
| 9A. |
AT32818
|
[1] |
Manifold
|
|
| 9B. |
T55119
|
[1] |
Manifold
|
|
| 10. |
19H2472
|
[2] |
Cap Screw
|
|
| 11. |
12H301
|
[2] |
Lock Washer
|
|
| 12. |
24H1111
|
[2] |
Washer
|
|
| 13. |
T55120
|
[1] |
Bracket
|
|
| 14. |
19H2644
|
[2] |
Cap Screw
|
|
| 15. |
14H1040
|
[2] |
Nut
|
|
