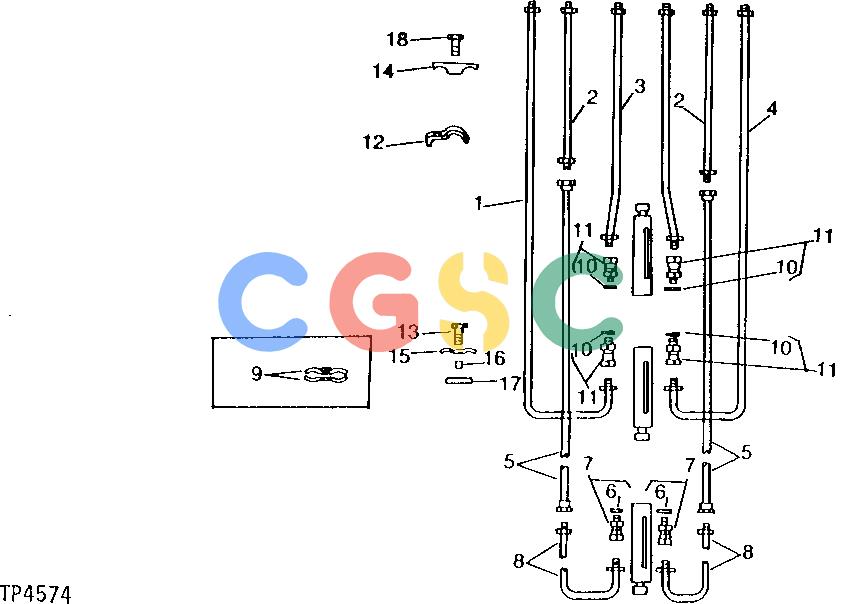

约翰迪尔零件查询410 - BACKHOE, LOADER OIL LINES AND FITTINGS (BACKHOE BOOM, CROWD AND BUCKET CIRCUITS) (SERIAL NO. -335230) [02H21]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 149 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT34934	[1]	Hydraulic Hose - Fabricate	1/2" X 2 159 MM (85") X 1/2", (SUB FOR AU10806 AND AT32797)
2.	AU10807	[AR]	Hydraulic Hose - Fabricate	1/2" X 1 092 MM (43") X 1/2", (SUB FOR AT35392) (2 USED MANIFOLD BLOCK TO BUCKET TUBE, AND 1 USED MANIFOLD BLOCK TO ROD END BOOM CYLINDER)
3.	AT35393	[1]	Hydraulic Hose - Fabricate	1/2" X 1 524 MM (60") X 1/2", (HEAD END BOOM CYLINDER)
4.	TY3013	[1]	Hydraulic Hose	(SUB FOR AU10852)
5.	AT32798	[2]	Line
5.	AT58583	[2]	Line
6.	R26906	[2]	O-Ring
7.	AU11753	[2]	Union Fitting
8.	AT74728	[2]	Hydraulic Hose - Fabricate	(SUB FOR AU10809) (SUB FOR AU10807 AND AW11542, THIS APPLICATION)
8.	AU13295	[2]	Hydraulic Hose - Fabricate	1/2" X 1 168 MM (46") X 1/2", (USE WITH EXTENDIBLE DIPPERSTICK)
9.	U13055	[4]	Clamp
9.	19H2633	[2]	Cap Screw	3/8" X 1-1/2"
9.	12H304	[2]	Lock Washer	3/8"
9.	M1407T	[2]	Washer
10.	U12547	[4]	O-Ring
11.	AU40260	[4]	Adapter Fitting
12.	U43641	[4]	Clamp
12.	19H2633	[4]	Cap Screw	3/8" X 1-1/2"
12.	T11234	[4]	Lock Nut
13.	19H1765	[2]	Cap Screw	3/8" X 1-3/4"
13.	12H304	[2]	Lock Washer	3/8"
14.	T38967	[1]	Clamp
15.	U13055	[1]	Clamp
16.	28H2481	[1]	Spacer	3/8" X 1/2"
17.	T38968	[1]	Strap
18.	19H3065	[1]	Cap Screw	3/8" X 2"
