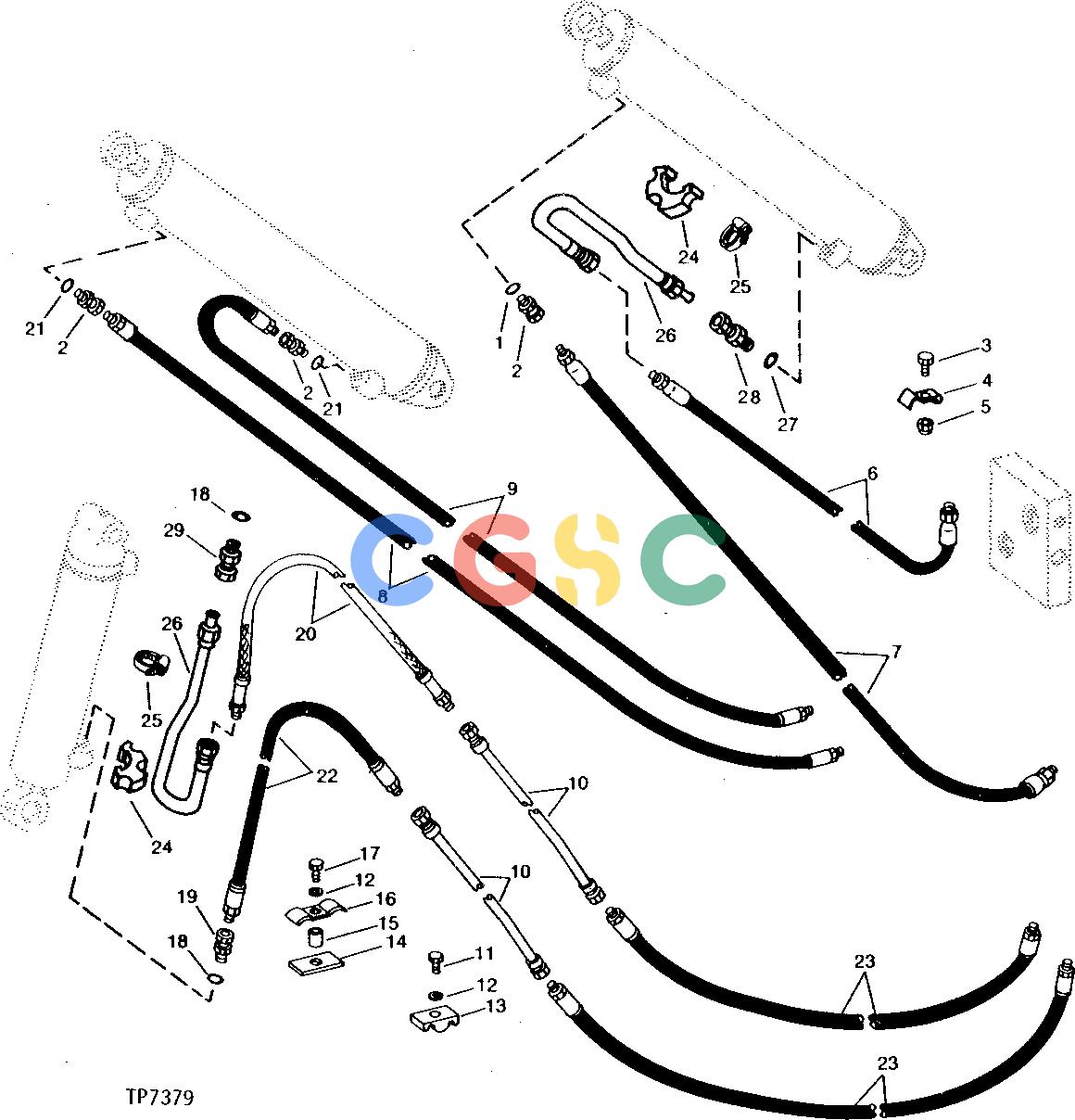

约翰迪尔零件查询410 - BACKHOE, LOADER OIL LINES AND FITTINGS (BACKHOE BOOM, CROWD AND BUCKET CIRCUITS) (SERIAL NO. 335231- ) [02H22]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 960 次

Pos.	Part No	Qty	Parts name	Comments
1.	U12547	[1]	O-Ring	(SUB FOR F3171R)
2.	AU40260	[3]	Adapter Fitting
3.	19H2633	[4]	Cap Screw	3/8" X 1-1/2"
4.	U43641	[4]	Clamp
5.	T11234	[4]	Lock Nut
6.	AU40911	[1]	Hydraulic Hose - Fabricate	1 337 MM LONG (1/2" X 92") (CROWD CYLINDER HEAD END)
7.	AU42523	[1]	Hydraulic Hose - Fabricate	1 048 MM LONG (1/2" X 120") (ROD END OF CROWD CYLINDER)
8.	AU10807	[1]	Hydraulic Hose - Fabricate	1 067 MM LONG (1/2" X 42") (ROD END BOOM CYLINDER)
9.	AT35393	[1]	Hydraulic Hose - Fabricate	1 525 MM LONG (1/2" X 60") (HEAD END BOOM CYLINDER)
10.	AT58583	[2]	Line
11.	19H3065	[1]	Cap Screw	3/8" X 2"
12.	12H304	[2]	Lock Washer	3/8"
13.	T38967	[1]	Clamp
14.	T38968	[1]	Strap
15.	28H2481	[1]	Spacer	3/8" X 1/2"
16.	U13055	[1]	Clamp
17.	19H1765	[1]	Cap Screw	3/8" X 1-3/4"
18.	R26906	[2]	O-Ring
19.	AU11753	[1]	Union Fitting
20.	AT74728	[1]	Hydraulic Hose - Fabricate	1 016 MM LONG (1/2" X 40") (BUCKET CYLINDER HEAD END) (SUB FOR AW11542, THIS APPLICATION)
21.	U12547	[2]	O-Ring
22.	AT35393	[1]	Hydraulic Hose - Fabricate	1 525 MM LONG (1/2" X 60") (BUCKET CYLINDER ROD END)
23.	AU10807	[2]	Hydraulic Hose - Fabricate	2 067 MM LONG (1/2" X 42") (MANIFOLD BLOCK TO BUCKET TUBE)
24.	T66715	[2]	Spacer
25.	AR85327	[2]	Clamp	(SUB FOR AT63292)
26.	AT63290	[2]	Line
27.	U12547	[1]	O-Ring
28.	R36075	[1]	Fitting
29.	R27270	[1]	Fitting
