约翰迪尔零件查询410 - BACKHOE, LOADER REPLACEMENT BACKHOE BUCKET CYLINDER [02I10]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 424 次

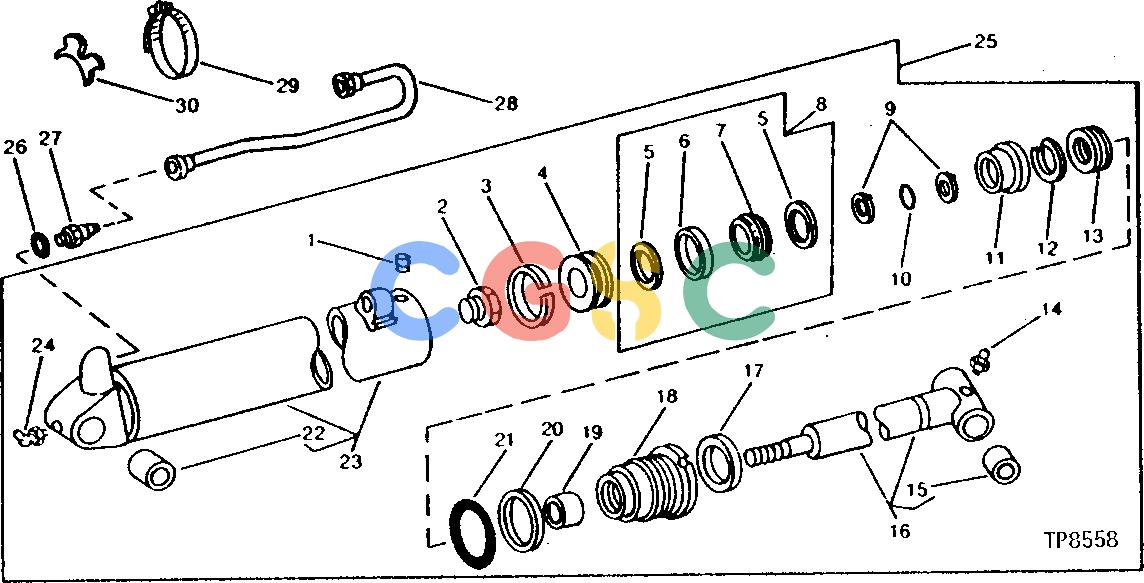

Pos.	Part No	Qty	Parts name	Comments
1.	22H1077	[1]	Set Screw	1/4" X 5/16"
2.	L2235CU	[1]	Lock Nut
3.	U17217	[1]	Wear Ring	(K)
4.	T36039	[1]	Piston	OUTER
5.	........	[2]	Back-Up Ring	(SUB RE11903)
6.	........	[1]	Cap	(PISTON SEAL) (SUB RE11903)
7.	........	[1]	Seal	(SUB RE11903)
8.	RE11903	[1]	Seal	(K)
9.	R78389	[2]	Washer	(K)
10.	R29463	[1]	O-Ring	(K)
11.	R78222	[1]	Piston	INNER
12.	W11229	[1]	Ring
13.	R76790	[1]	Packing	(K)
14.	JD7759	[1]	Lubrication Fitting
15.	T25898	[2]	Bushing
16.	AT32777	[1]	Hydraulic Cylinder Rod
17.	U11022	[1]	Seal	(K)
18.	R80919	[1]	Guide	(SUB FOR T57006)
19.	U41822	[1]	Wear Ring	(K)
20.	R79101	[1]	Back-Up Ring	(K) (SUB FOR T42045, THIS APPLICATION)
21.	F1430R	[1]	O-Ring	(K)
22.	U10666	[2]	Bushing
23.	AR90637	[1]	Hydraulic Cylinder Barrel
24.	JD7763	[1]	Lubrication Fitting
25.	........	[1]	Hydraulic Cylinder	RE12720 NO LONGER AVAILABLE
26.	R26906	[1]	O-Ring	(K)
27.	R27270	[1]	Fitting
28.	AT63290	[1]	Line
29.	AC15595	[1]	Clamp	(SUB FOR AT63291)
30.	T66715	[1]	Spacer
