约翰迪尔零件查询410 - BACKHOE, LOADER BACKHOE SWING CYLINDER (SERIAL NO. -303202) [02I11]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 180 次

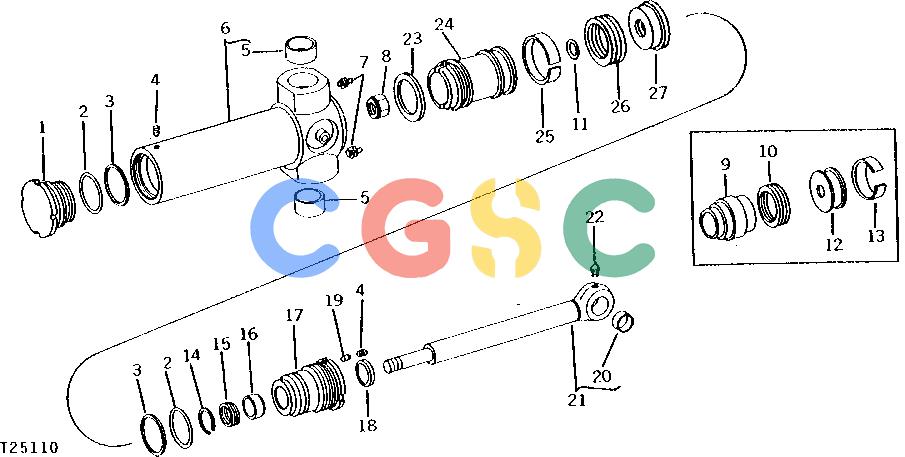

Pos.	Part No	Qty	Parts name	Comments
1.	R81342	[1]	Hydraulic Cylinder Cap	(SUB FOR U43461)
2.	L2309CU	[2]	Back-Up Ring	(A)
3.	L2301CU	[2]	O-Ring	(A)
4.	22H842	[2]	Set Screw	1/4" X 5/16"
5.	U43454	[2]	Bushing
6.	AT32828	[1]	Hydraulic Cylinder Barrel	(SUB AT36161, U17347, T37360 AND U44491)
6.	AT36161	[1]	Hydraulic Cylinder Barrel
7.	JD7763	[2]	Lubrication Fitting	1/8"
8.	L2235CU	[1]	Lock Nut
9.	U43462	[1]	Piston
10.	U12968	[1]	Packing	(SUB T37381)
11.	R29463	[1]	O-Ring	(A)
12.	U17334	[1]	Piston
13.	U17337	[1]	Wear Ring
14.	U14128	[1]	Snap Ring
15.	T54809	[1]	Packing	(SUB FOR U12972, THIS APPLICATION) (SUB FOR R72831)
15.	R76802	[1]	Seal	(A) (SUB FOR T36998)
16.	U41823	[1]	Wear Ring	(A)
17.	R80938	[1]	Guide	(SUB FOR U43463)
18.	U16406	[1]	Seal	(A)
19.	U43464	[1]	Insert
20.	T33708	[1]	Bushing
21.	AT32830	[1]	Hydraulic Cylinder Rod
22.	JD7797	[1]	Lubrication Fitting	1/4", STRAIGHT
23.	U44491	[1]	Piston Ring
24.	T37360	[1]	Piston
25.	U17337	[1]	Wear Ring	(A)
26.	T37381	[1]	Packing	(A) (SUB FOR R72830)
27.	U17347	[1]	Piston
...	AT32810	[2]	Cylinder	(SUB RE12723)
...	AT36160	[2]	Cylinder	(SUB RE12723)
...	AU42395	[1]	Kit	(SUB RE18730)
...	RE18730	[1]	Hydraulic Cylinder Kit	(SUB FOR AT36166, AT36835, AR96527 AND AR105408)
