约翰迪尔零件查询410D - BACKHOE, LOADER HOOD AND ENGINE SIDE SHIELDS ( - 801199)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 210 次

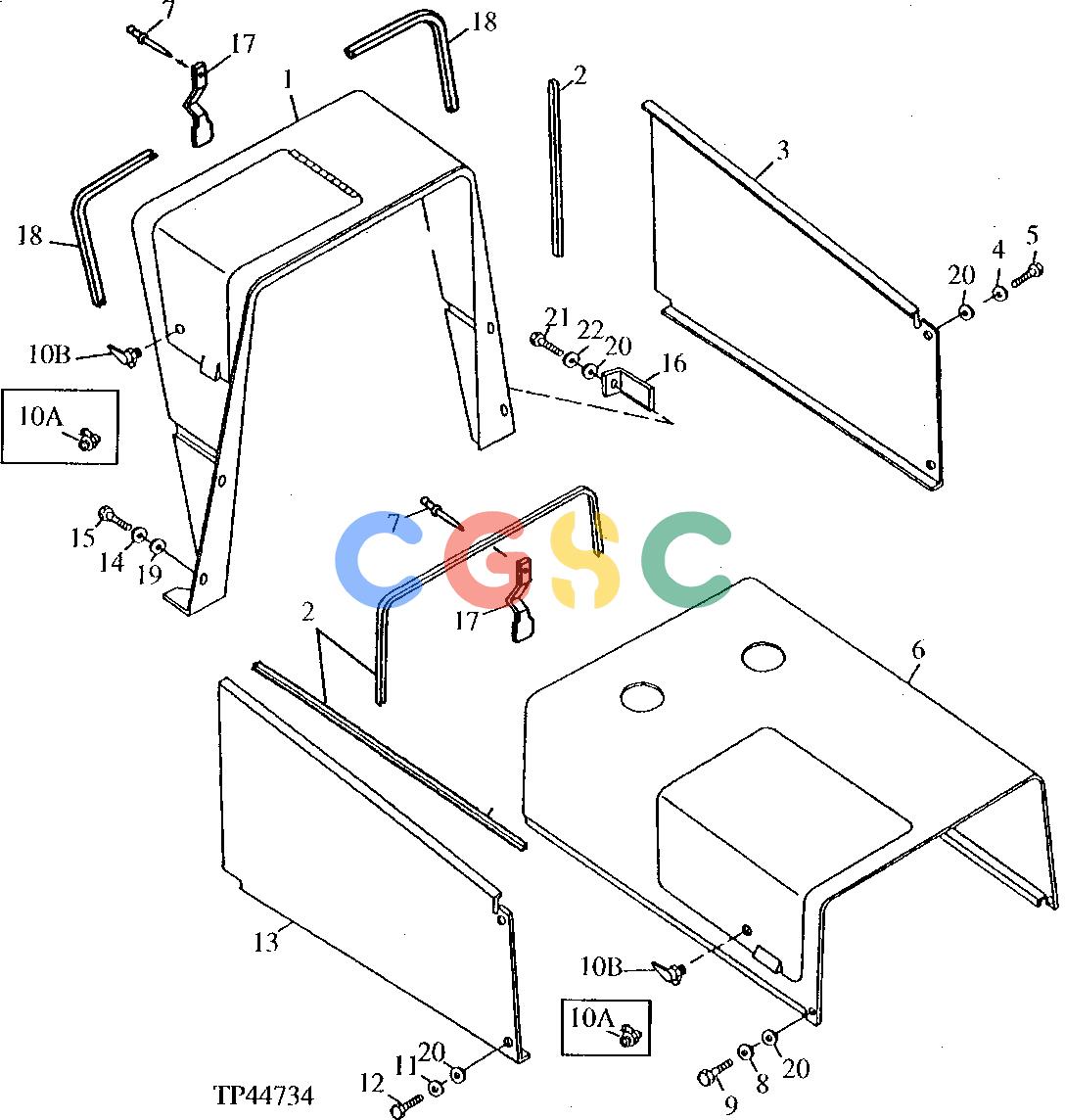

Pos.	Part No	Qty	Parts name	Comments
1.	AT150902	[1]	Cover	COWL (SUB AT167032 AND AT171397)
1.	AT167032	[1]	Cowl	COWL
2.	T61798	[AR]	Isolator
3.	T137308	[1]	Shield
4.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
5.	19M7938	[2]	Cap Screw	M10 X 20
6.	AT151100	[1]	Hood	(SUB AT167081 AND AT171397)(WITHOUT TURBOCHARGER)
6.	AT167081	[1]	Hood	(WITHOUT TURBOCHARGER)
6.	AT151105	[1]	Hood	(SUB AT167090 AND AT171397)(WITH TURBOCHARGER)
6.	AT167090	[1]	Hood	(WITH TURBOCHARGER)
7.	M82259	[4]	Rivet	(SUB FOR AT139608 AND AT151755)
8.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
9.	19M7938	[2]	Cap Screw	M10 X 20
10A.	AT151812	[2]	Lock	(SUB FOR AT53010, THIS APPLICATION)
10A.	AT145929	[1]	Key	(SUB FOR AR51481)(SET OF TWO KEYS)
10B.	AT171397	[1]	Latch	(SUB FOR AT166408)
10B.	AT145929	[1]	Key	(SET OF TWO KEYS)
11.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
12.	19M7938	[2]	Cap Screw	M10 X 20
13.	T137307	[1]	Shield
14.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM RIGHT SIDE (STEEL)
15.	19M7938	[4]	Cap Screw	M10 X 20 (WITH ROPS)
15.	19M7938	[3]	Cap Screw	M10 X 20 (WITH CAB)
16.	T141904	[1]	Bumper	(SUB FOR T135282)(WITH CAB)
17.	T141506	[2]	Spring	DOOR LOCK
18.	........	[1]	Isolator	(MAKE FROM T68144 BULK MATERIAL, CUT TO LENGTH)
19.	H110232	[2]	Washer	10.310 X 22.600 X 1.500 MM (13/32" X 0.890" X 0.059") RIGHT SIDE (NYLON)
20.	T145936	[8]	Washer	(NYLON)
21.	19M7662	[1]	Cap Screw	M10 X 30 (WITH CAB)
22.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM LEFT SIDE (STEEL)
