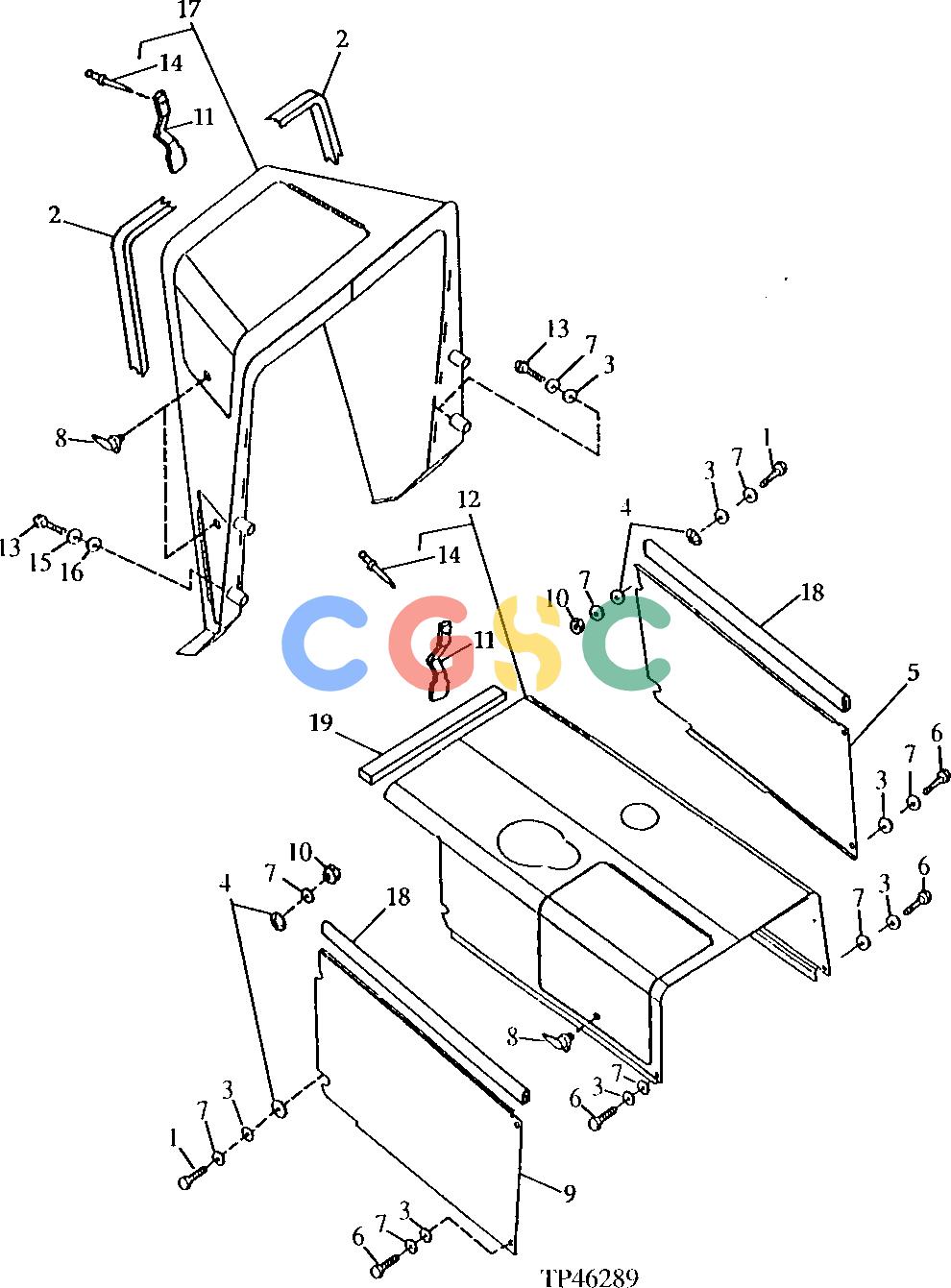

约翰迪尔零件查询410D - BACKHOE, LOADER HOOD,COWL AND SIDE SHIELDS (801200 - )EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7572
|
[6] |
Cap Screw
|
|
| 2. |
T142819
|
[1] |
Isolator
|
|
| 3. |
T145936
|
[8] |
Washer
|
|
| 4. |
T148643
|
[12] |
Guide
|
|
| 5. |
T148722
|
[1] |
Shield
|
|
| 5. |
T154240
|
[4] |
Washer
|
|
| 6. |
19M7938
|
[6] |
Cap Screw
|
|
| 7. |
24M7296
|
[6] |
Washer
|
|
| 8. |
AT171397
|
[1] |
Latch
|
|
| 9. |
T148721
|
[1] |
Shield
|
|
| 10. |
14M7167
|
[6] |
Lock Nut
|
|
| 11. |
T141506
|
[1] |
Spring
|
|
| 12. |
AT168723
|
[1] |
Hood
|
|
| 13. |
19M7875
|
[4] |
Cap Screw
|
|
| 14. |
M82259
|
[2] |
Rivet
|
|
| 15. |
H110232
|
[1] |
Washer
|
|
| 16. |
24M7239
|
[1] |
Washer
|
|
| 17. |
AT168783
|
[1] |
Cover
|
|
| 18. |
........
|
[1] |
Isolator
|
|
| 19. |
T142819
|
[1] |
Isolator
|
|
