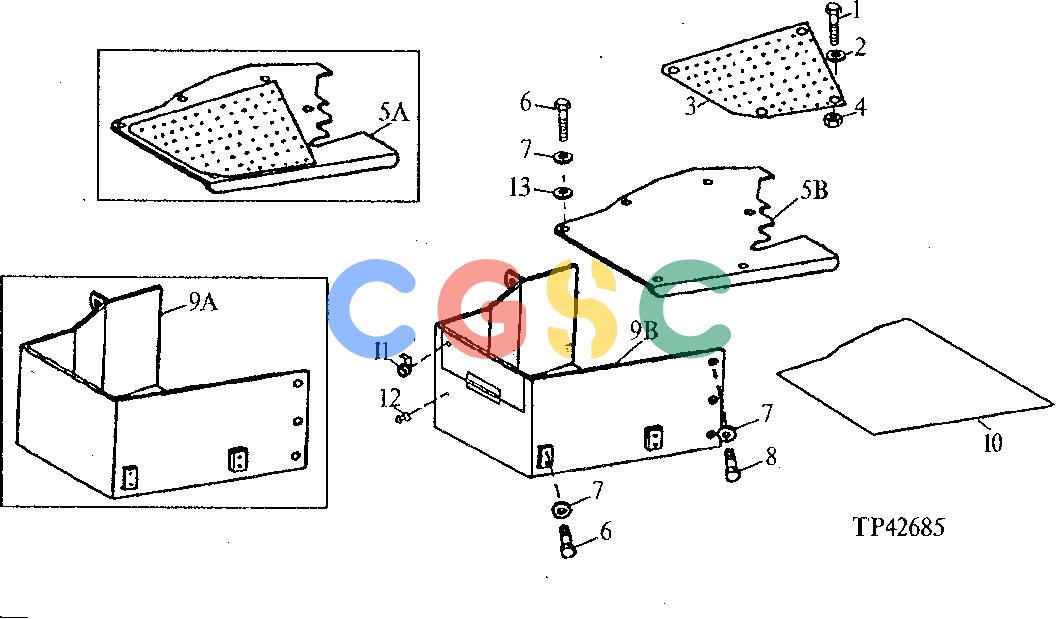

约翰迪尔零件查询410D - BACKHOE, LOADER Battery Box ( - 801199)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
03M7183
|
[2] |
Bolt
|
|
| 2. |
24M7207
|
[2] |
Washer
|
|
| 3. |
T143213
|
[1] |
Mat
|
|
| 4. |
14M7273
|
[2] |
Nut
|
|
| 5A. |
........
|
[1] |
Cover
|
|
| 5B. |
T143214
|
[1] |
Cover
|
|
| 6. |
19M7938
|
[8] |
Cap Screw
|
|
| 7. |
24M7296
|
[12] |
Washer
|
|
| 8. |
19M7402
|
[4] |
Cap Screw
|
|
| 9A. |
........
|
[1] |
Battery Box
|
|
| 9B. |
........
|
[1] |
Battery Box
|
|
| 9B. |
AT162712
|
[1] |
Battery Box
|
|
| 10. |
........
|
[1] |
Tray
|
|
| 10. |
T147687
|
[1] |
Tray
|
|
| 11. |
AT151812
|
[1] |
Lock
|
|
| 12. |
M68997
|
[1] |
Bumper
|
|
| 13. |
T145936
|
[4] |
Washer
|
|
