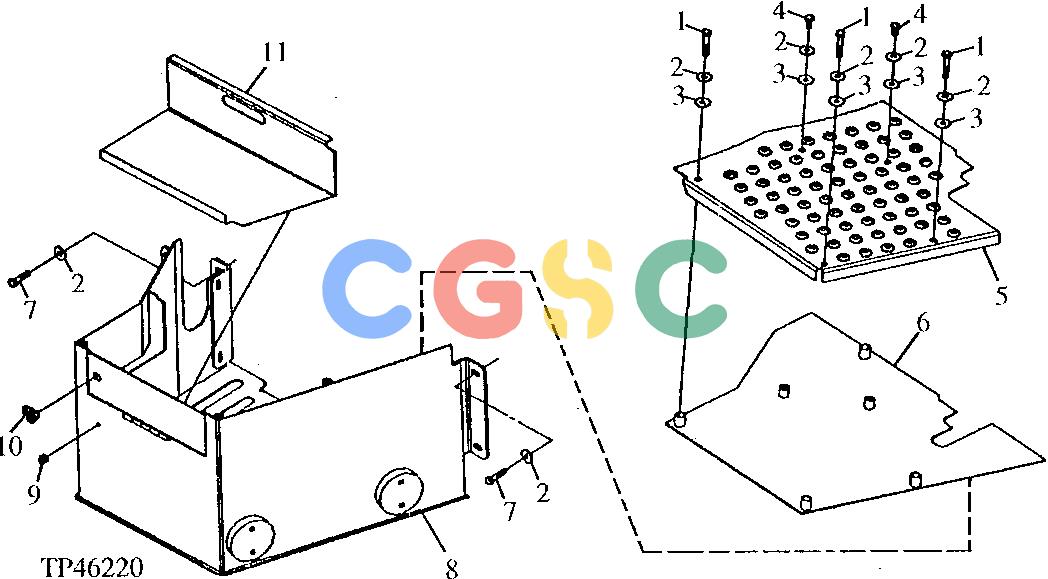

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 19M7935 | [1] | Cap Screw | M10 X 55 |
| 2. | 24M7296 | [9] | Washer | 10.500 X 30 X 2.500 MM |
| 3. | T145936 | [3] | Washer | |
| 4. | 19M7402 | [2] | Cap Screw | M10 X 25 (SUB FOR 19M7938, THIS APPLICATION) |
| 5. | T148512 | [1] | Mat | |
| 5. | T155276 | [1] | Mat | |
| 6. | AT164198 | [1] | Cover | |
| 6. | AT172708 | [1] | Cover | |
| 7. | 19M7358 | [4] | Cap Screw | M10 X 40 (SUB FOR 19M7572, THIS APPLICATION) |
| 8. | AT164194 | [1] | Battery Box | |
| 9. | M68997 | [1] | Bumper | |
| 10. | AT151812 | [1] | Lock | |
| 11. | T151488 | [1] | Tray |
