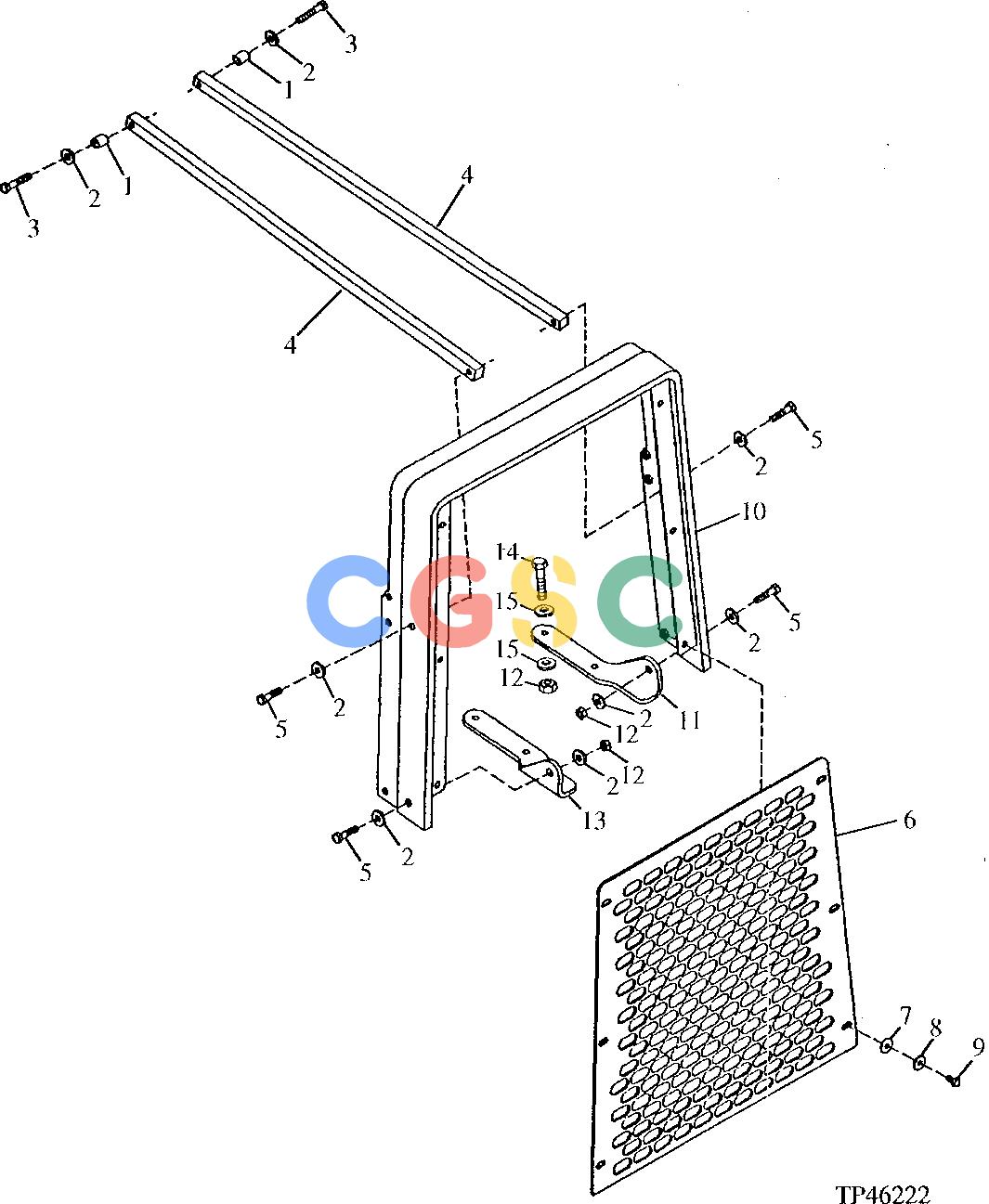

约翰迪尔零件查询410D - BACKHOE, LOADER Grille and Grille Housing (801200 - )EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T139939
|
[2] |
Spacer
|
|
| 2. |
T29342
|
[8] |
Washer
|
|
| 3. |
19M7363
|
[2] |
Cap Screw
|
|
| 4. |
T148304
|
[2] |
Support
|
|
| 5. |
19M7361
|
[4] |
Cap Screw
|
|
| 6. |
T148331
|
[1] |
Screen
|
|
| 7. |
T145936
|
[6] |
Washer
|
|
| 8. |
24M7296
|
[6] |
Washer
|
|
| 9. |
19M7938
|
[6] |
Cap Screw
|
|
| 10. |
AT171031
|
[1] |
Frame
|
|
| 11. |
T152763
|
[1] |
Bracket
|
|
| 12. |
14M7275
|
[4] |
Nut
|
|
| 13. |
T152764
|
[1] |
Bracket
|
|
| 14. |
19M7493
|
[4] |
Cap Screw
|
|
| 15. |
24M7240
|
[8] |
Washer
|
|
