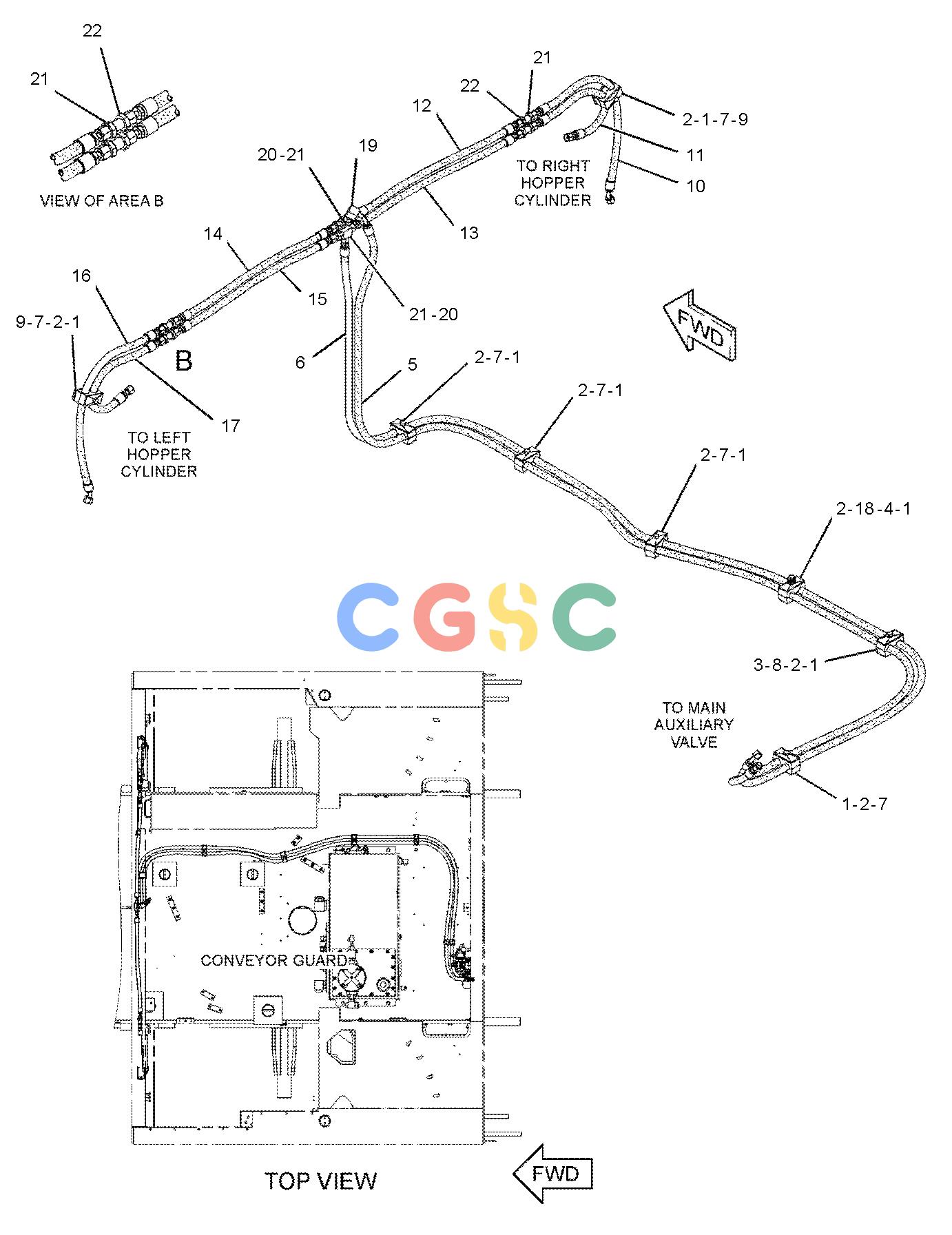

卡特零件查询（AP-1055D） 230-9615: LINES GP-HOPPER
广数供应链运营团队, 16 02月, 2025，浏览：
861 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 154-4881 | [16] | CLAMP-HALF | |
| 2. | 102-8705 | [8] | PLATE(TOP) | |
| 3. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 4. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 5. | 237-9604I | [1] | HOSE AS | |
| 6. | 237-9604I | [1] | HOSE AS | |
| 7. | 7X-0818M | [6] | BOLT(M8X1.25X45-MM) | |
| 8. | 8T-6912M | [1] | BOLT(M8X1.25X50-MM) | |
| 9. | 102-8706 | [2] | PLATE AS | |
| 10. | 207-5879I | [1] | HOSE AS | |
| 11. | 111-6918I | [2] | HOSE AS | |
| 12. | 141-7730I | [1] | HOSE AS | |
| 13. | 141-7730I | [1] | HOSE AS | |
| 14. | 141-7730I | [1] | HOSE AS | |
| 15. | 141-7730I | [1] | HOSE AS | |
| 16. | 207-5879I | [1] | HOSE AS | |
| 17. | 111-6918I | [1] | HOSE AS | |
| 18. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 19. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 20. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 21. | 6V-9168 | [6] | NUT(11/16-16-THD) | |
| 22. | 213-2265 | [4] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 150-0128 | [1] | UNION | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
