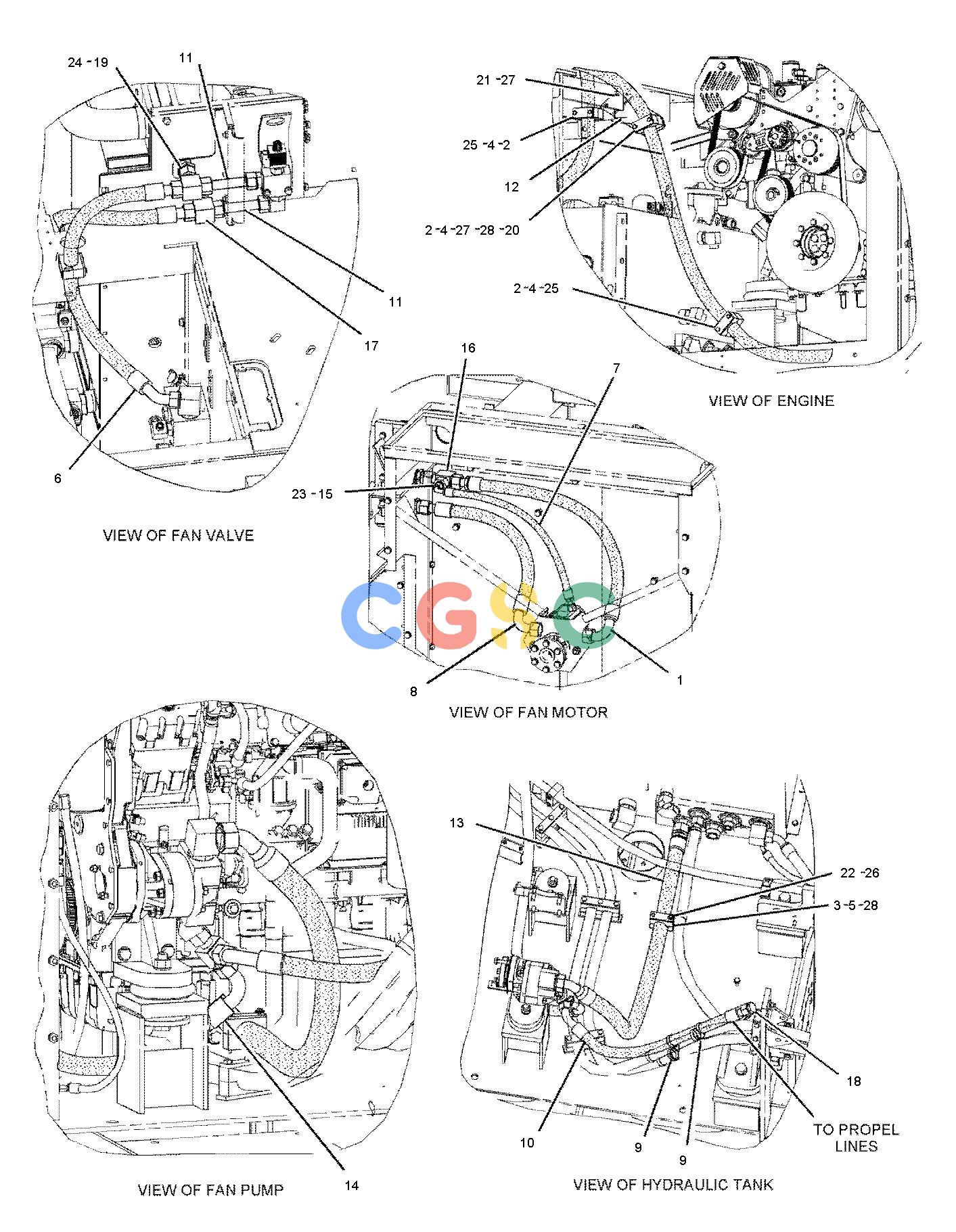

卡特零件查询（AP-1055D） 230-9622: LINES GP-HYDRAULIC FAN
广数供应链运营团队, 16 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3W-6965I | [1] | HOSE AS | |
| 2. | 5V-6152 | [6] | CLAMP | |
| 3. | 7R-7942 | [2] | CLAMP | |
| 4. | 7R-7951 | [3] | PLATE | |
| 5. | 7R-7952 | [1] | COVER | |
| 6. | 8X-6437I | [1] | HOSE AS | |
| 7. | 100-6621I | [1] | HOSE AS | |
| 8. | 111-4176I | [1] | HOSE AS | |
| 9. | 178-3620 | [2] | STRAP-DUAL CLAMP | |
| 10. | 228-9651I | [1] | HOSE AS | |
| 11. | 237-9928 | [2] | TUBE AS | |
| 12. | 238-1905 | [1] | BRACKET | |
| 13. | 250-5601I | [1] | HOSE AS | |
| 14. | 251-2084I | [1] | HOSE AS | |
| 15. | 148-8412 | [1] | REDUCER AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8944 | [1] | REDUCER | |
| 16. | 148-8429 | [1] | TEE AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9840 | [1] | TEE-SWIVEL | |
| 17. | 148-8445 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9847 | [1] | TEE-SWIVEL | |
| 18. | 150-3073 | [1] | PLUG AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9512 | [1] | PLUG(1-7/16-12-THD) | |
| 19. | 155-2026 | [2] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8998 | [1] | UNION | |
| 20. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 21. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 22. | 5P-4115 | [1] | WASHER-HARD(7.2X19X2-MM THK) | |
| 23. | 9X-6579 | [1] | NUT-ORIFICE(7/16-12-THD) | |
| 24. | 6V-9172 | [2] | NUT(1-7/16-12-THD) | |
| 25. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| 26. | 7X-7888M | [1] | BOLT(M6X1X90-MM) | |
| 27. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 28. | 8T-6974M | [3] | BOLT(M6X1X80-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
