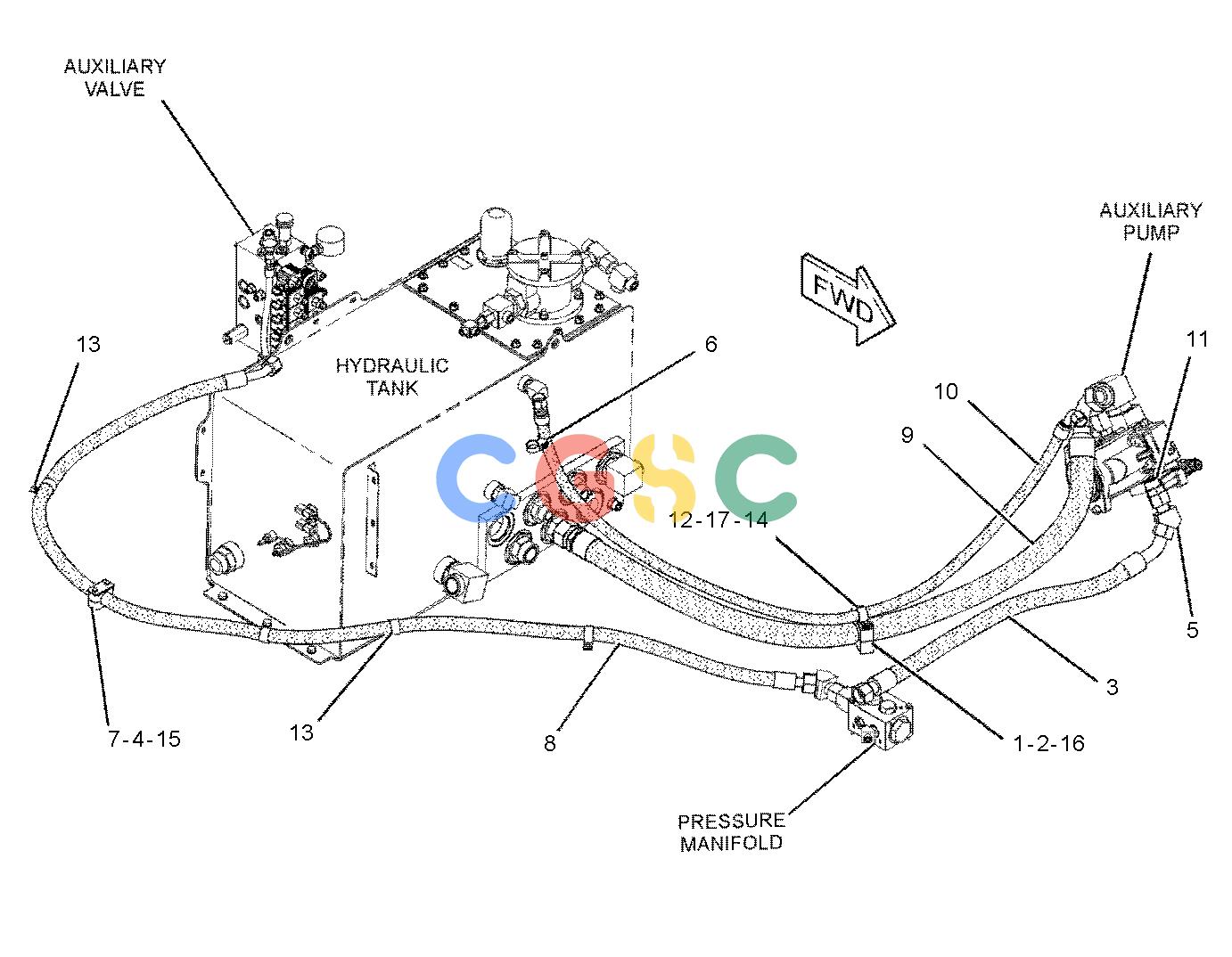

卡特零件查询（AP-1055D） 257-6125: LINES GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
409 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7942 | [2] | CLAMP | |
| 2. | 7R-7952 | [1] | COVER | |
| 3. | 115-9566I | [1] | HOSE AS | |
| 4. | 143-9644 | [1] | PLATE-RETAINER | |
| 5. | 177-1061 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 142-0038 | [1] | ELBOW | |
| 6. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 7. | 206-1511 | [2] | CLAMP-HALF | |
| 8. | 237-9280I | [1] | HOSE AS | |
| 9. | 254-6226I | [1] | HOSE AS | |
| 10. | 254-6227I | [1] | HOSE AS | |
| 11. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 12. | 5P-4115 | [1] | WASHER-HARD(7.2X19X2-MM THK) | |
| 13. | 6V-1889 | [4] | CLIP(LOOP)(SLOT) | |
| 14. | 7C-4354 | [1] | CLIP(SLOT) | |
| 15. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 16. | 8T-3844M | [1] | BOLT(M6X1X70-MM) | |
| 17. | 8U-5746M | [1] | BOLT(M6X1X75-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
