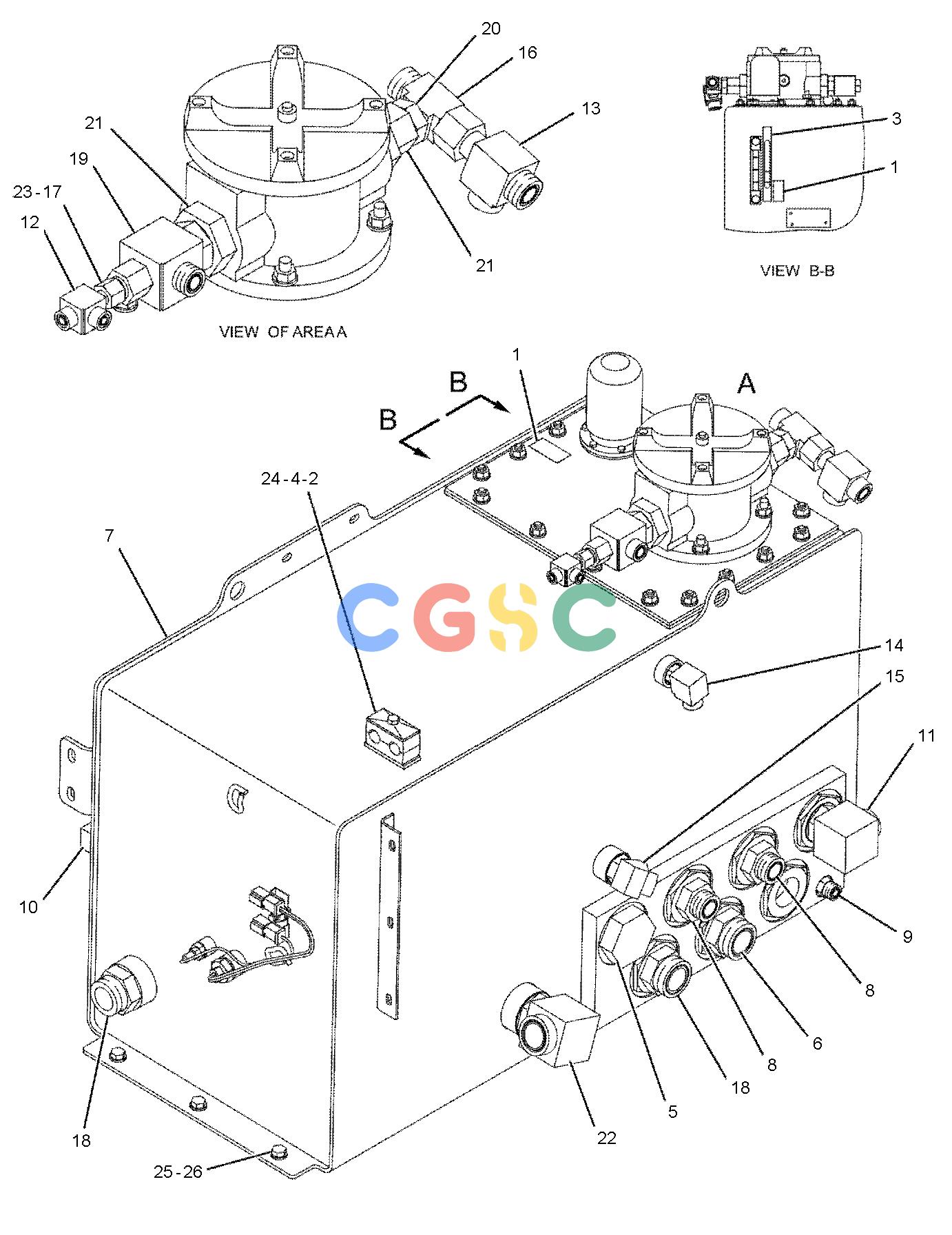

卡特零件查询（AP-1055D） 230-9587: TANK & MTG GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
395 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8C-4316 | [2] | FILM-IDENTIFICATION(HYDRAULIC OIL) | |
| 2. | 102-8705 | [1] | PLATE(TOP) | |
| 3. | 121-2913 | [1] | FILM-INSTRUCTION(HYDRAULIC OIL LEVEL) | |
| 4. | 154-4881 | [2] | CLAMP-HALF | |
| 5. | 205-0672 | [1] | PLUG AS | |
| | 9S-7583 | [1] | PLUG | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 6. | 205-4132 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-8985 | [1] | CONNECTOR | |
| 7. | 230-9588Y | [1] | TANK GP-HYDRAULIC | |
| 8. | 148-8323 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9875 | [1] | CONNECTOR | |
| 9. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 10. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 11. | 148-8391 | [1] | ELBOW AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-8987 | [1] | ELBOW | |
| 12. | 148-8433 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 13. | 148-8449 | [1] | TEE AS-SWIVEL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 6V-9839 | [1] | TEE-SWIVEL | |
| 14. | 150-4048 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8722 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 15. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 16. | 153-6259 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8777 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 17. | 156-4282 | [1] | REDUCER AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8938 | [1] | REDUCER | |
| 18. | 156-4283 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-7926 | [1] | CONNECTOR | |
| 19. | 164-5607 | [1] | TEE AS | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-1684 | [1] | TEE | |
| 20. | 172-4621 | [1] | ADAPTER AS | |
| | 6V-0301 | [1] | ADAPTER | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 21. | 176-0391 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8V-7764 | [1] | ADAPTER-O-RING | |
| 22. | 204-9815 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | | [1] | SPRING |
| 23. | 6V-8555 | [1] | NUT-FACE SEAL(1-14-THD) | |
| 24. | 7X-0818M | [1] | BOLT(M8X1.25X45-MM) | |
| 25. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
