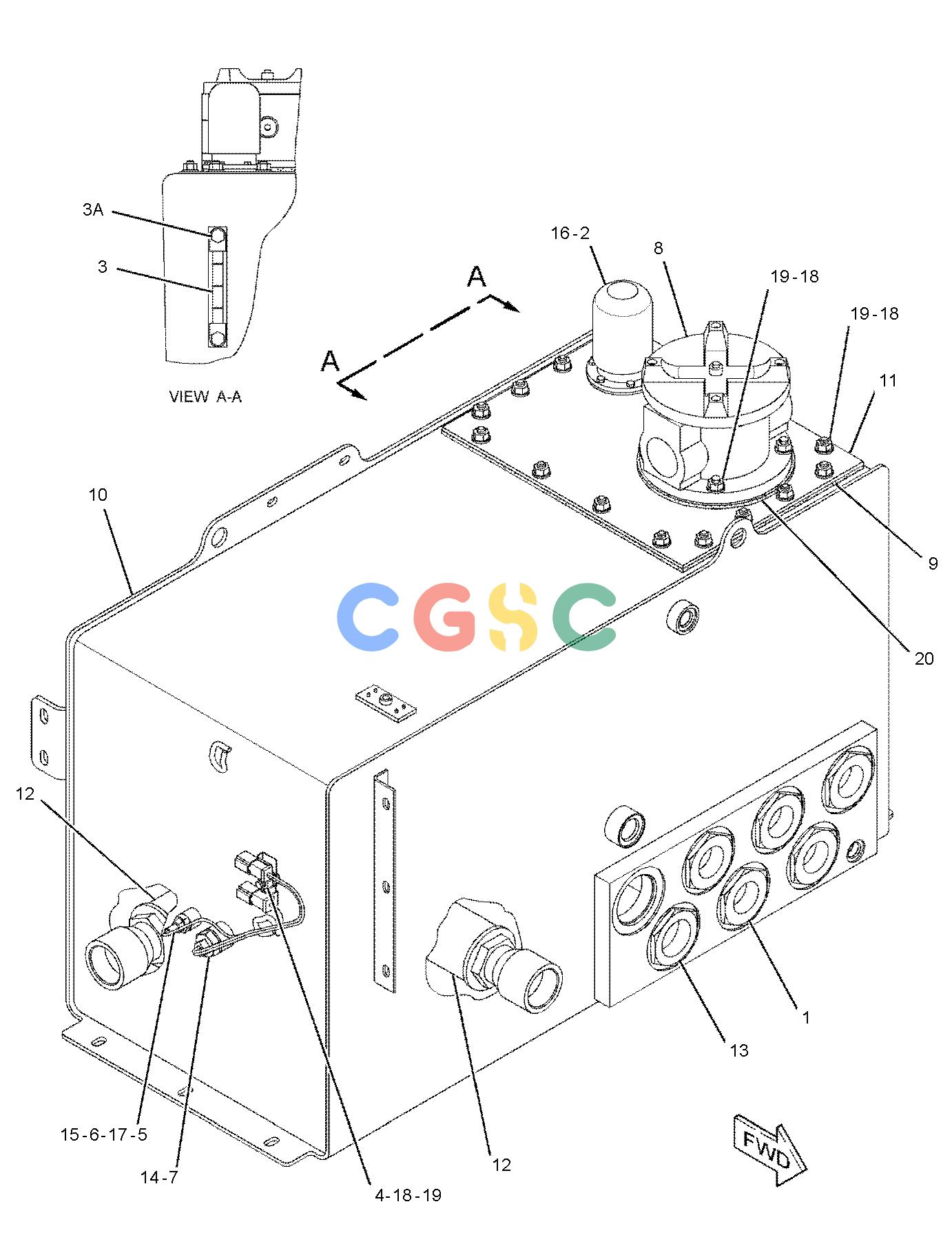

卡特零件查询（AP-1055D） 230-9588: TANK GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
944 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-7663 | [5] | STRAINER AS(HYDRAULIC TANK) | |
| 2. | 077-3951Y | [1] | CAP GP-HYDRAULIC OIL FILLER | |
| 3. | 115-9685 | [1] | GAUGE GP-SIGHT(HYDRAULIC OIL LEVEL) | |
| | 095-1517 | [4] | SEAL-O-RING | |
| 3A. | 094-3247M | [2] | BOLT(M10X1.5X36-MM) | |
| | 7Y-4754 | [2] | BLOCK | |
| | 095-1514 | [4] | SEAL-O-RING | |
| 4. | 116-0118 | [2] | CLIP | |
| 5. | 145-7028Y | [1] | SENSOR GP-TEMPERATURE(HYDRAULIC OIL) | |
| 6. | 164-3651 | [1] | ADAPTER | |
| 7. | 172-8660Y | [1] | SWITCH GP-LIQUID LEVEL(HYDRAULIC OIL) | |
| 8. | 176-9415Y | [1] | FILTER GP-OIL(HYDRAULIC TANK) | |
| 9. | 193-0400 | [1] | GASKET | |
| 10. | 230-9589 | [1] | TANK AS-HYDRAULIC | |
| 11. | 234-0215 | [1] | PLATE AS | |
| 12. | 239-7168 | [2] | DIFFUSER | |
| 13. | 250-2783 | [1] | STRAINER AS(SUCTION)(HYDRAULIC TANK) | |
| 14. | 2M-9780 | [1] | SEAL-O-RING | |
| 15. | 3J-1907 | [1] | SEAL-O-RING | |
| 16. | 6V-4298M | [6] | BOLT(M5X0.8X16-MM) | |
| 17. | 7J-0204 | [1] | SEAL-O-RING | |
| 18. | 8T-4121 | [21] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4133M | [21] | NUT(M10X1.5-THD) | |
| 20. | 309-5157 | [1] | GASKET | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
