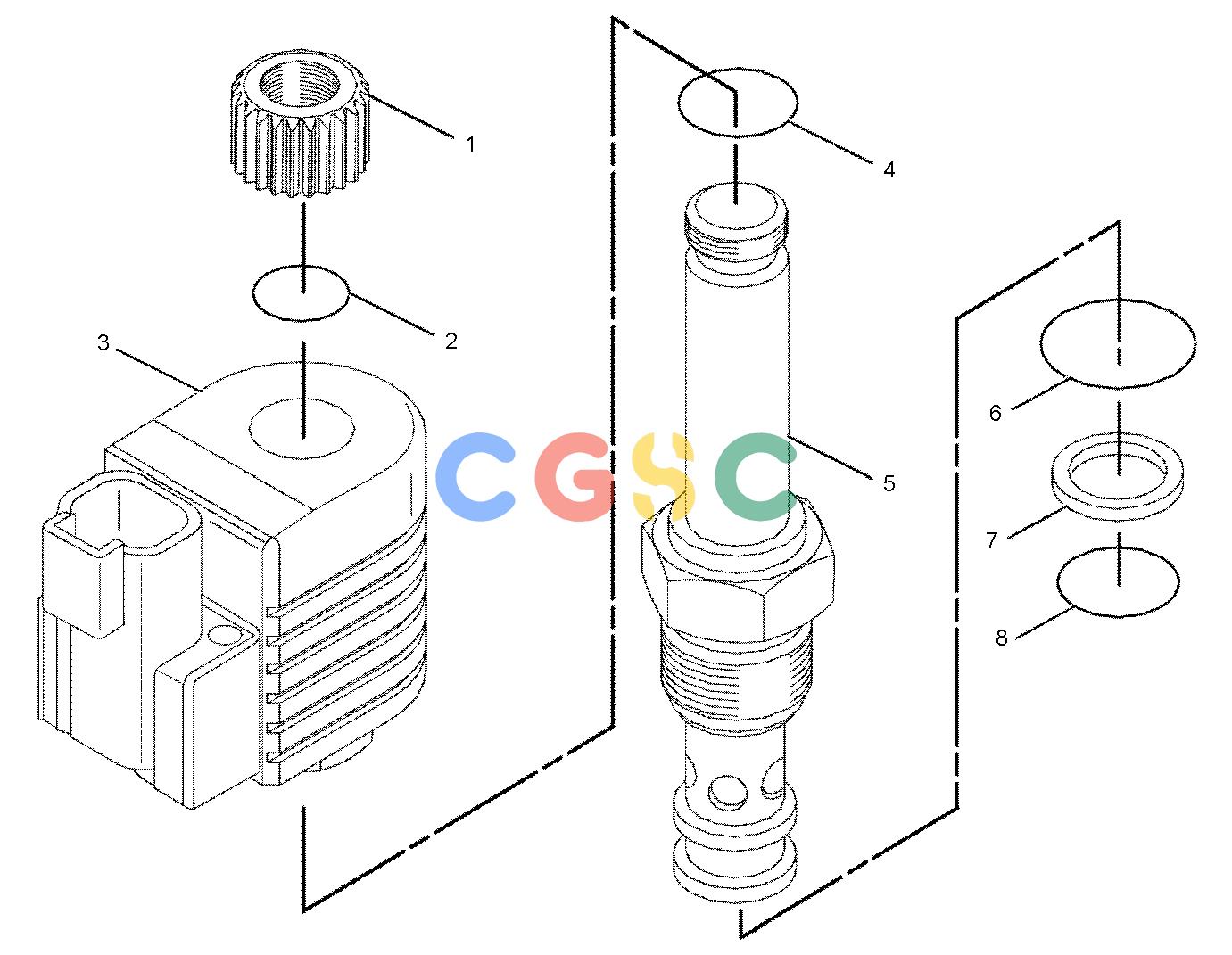

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 226-5683 | [1] | NUT-KNURL(1/2-20-THD) | |
| 2. | 226-5682 | [1] | SEAL-O-RING | |
| 3. | 226-5681 | [1] | COIL | |
| 4. | 5L-4758 | [1] | SEAL-O-RING | |
| 5. | Z | [1] | VALVE | |
| 6. | JZ | [1] | SEAL-O-RING | |
| 7. | JZ | [1] | RING-BACKUP | |
| 8. | JZ | [1] | SEAL-O-RING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 248-5438J | [1] | KIT-SEAL(HYDRAULIC FAN SPEED SOL VALVE) | ||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| Z | NOT SERVICED SEPARATELY | |||
