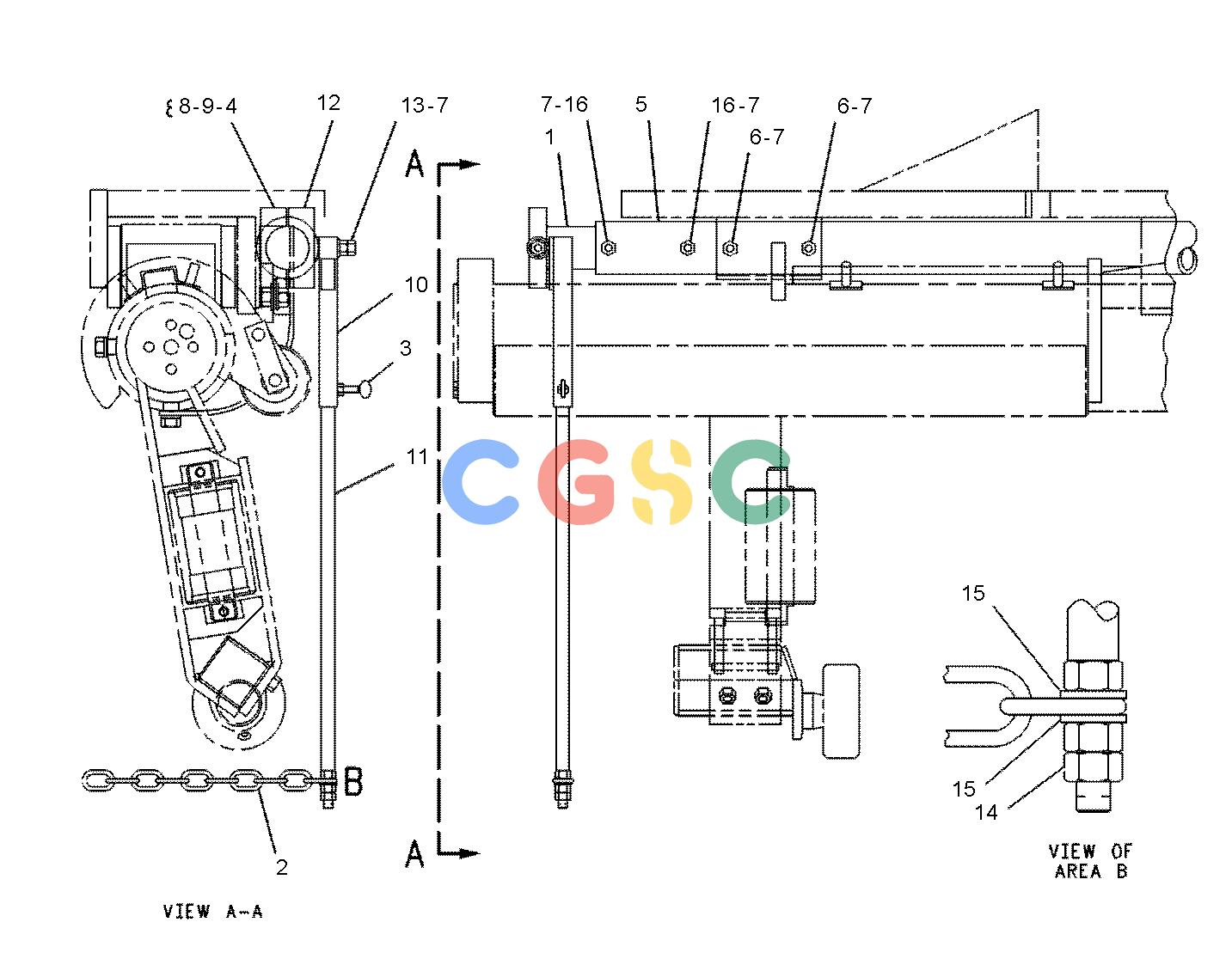

卡特零件查询（BG-225C） 104-6579: GUIDE GP-STEERING
广数供应链运营团队, 16 02月, 2025，浏览：
943 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 106-4604D | [1] | TUBE(1.1-M) | |
| 2. | 198-2654 | [1] | CHAIN | |
| 3. | 039-2074 | [1] | KEEPER | |
| 4. | 105-1378 | [1] | BLOCK | |
| 5. | 106-4606 | [1] | TUBE AS | |
| 6. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 7. | 6V-8188 | [8] | NUT(1/2-13-THD) | |
| 8. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 5P-2424 | [2] | BOLT(1/2-13X2.25-IN) | |
| 10. | 104-8639 | [1] | TUBE AS | |
| 11. | 104-8641 | [1] | TUBE AS | |
| 12. | 105-1379 | [1] | CLAMP AS | |
| 13. | 5P-1076 | [1] | WASHER-HARD(13.5X30X4-MM THK) | |
| 14. | 1B-2578 | [2] | NUT(3/8-16-THD) | |
| 15. | 5P-1075 | [2] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 16. | 5P-2566 | [2] | BOLT(1/2-13X1.5-IN) | |
| | D | | ORDER BY THE METER |
