卡特零件查询（BG-225C） 115-2291: DRIVE GP-TRACK
广数供应链运营团队, 16 02月, 2025，浏览：
450 次

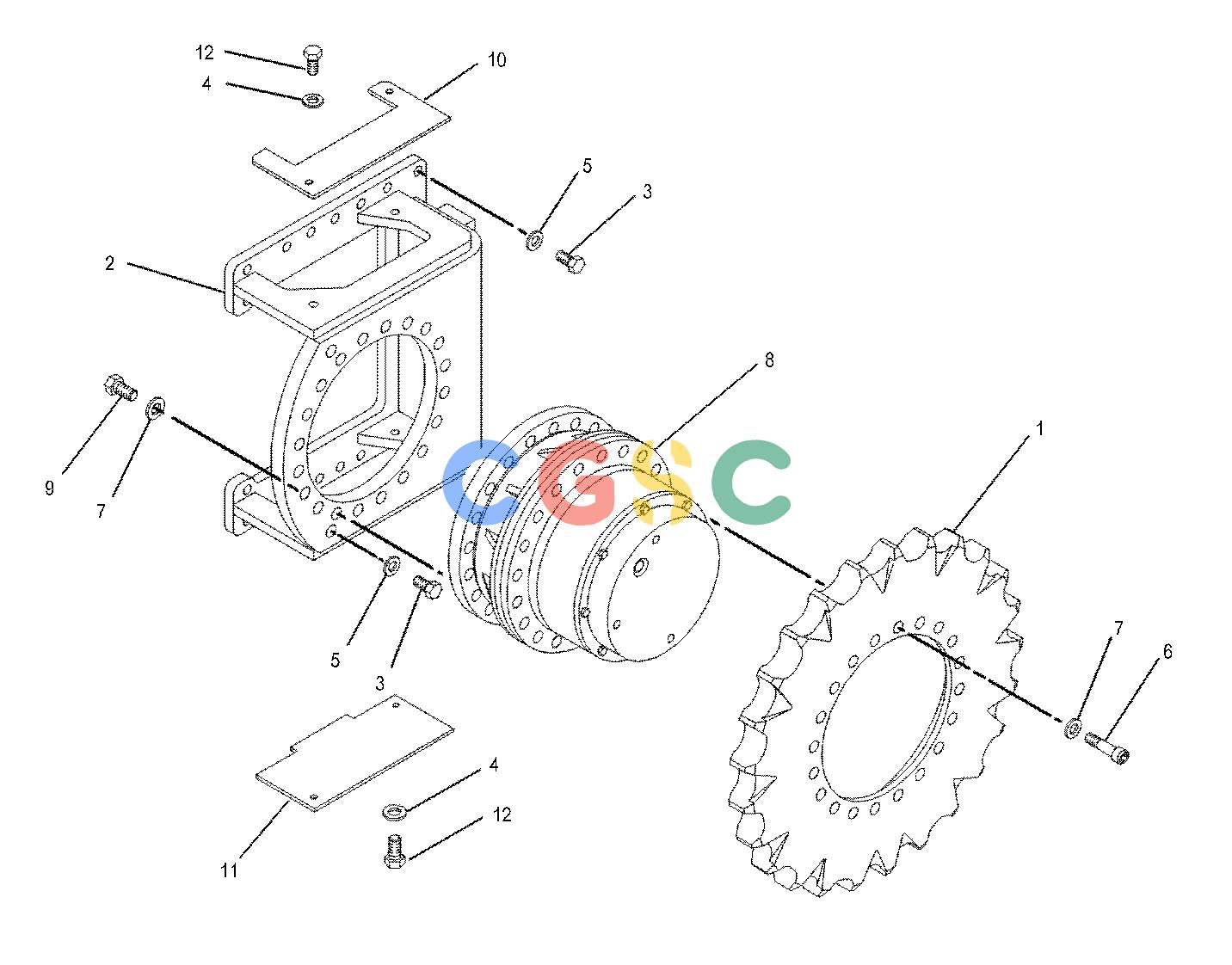

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 105-8884 | [1] | SPROCKET-TRACK | |
| 2. | 235-1796 | [1] | PLATE AS | |
| 3. | 7X-0345 | [20] | BOLT(5/8-11X1.75-IN) | |
| 4. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 5. | 8T-4122 | [20] | WASHER-HARD(17X32X3.5-MM THK) | |
| 6. | 8T-5042M | [20] | BOLT(M20X2.5X50-MM) | |
| 7. | 8T-4123 | [40] | WASHER(3.62X5.75X0.375-MM THK) | |
| 8. | 105-8883Y | [1] | PLANETARY GP-FINAL DRIVE | |
| 9. | 8T-6430M | [20] | BOLT(M20X2.5X50-MM) | |
| 10. | 124-9825 | [1] | PLATE | |
| 11. | 124-9826 | [1] | PLATE | |
| 12. | 9B-7237 | [4] | BOLT(3/8-16X1.25-IN) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
