卡特零件查询（BG-225C） 115-2296: IDLER GP-FRONT
广数供应链运营团队, 16 02月, 2025，浏览：
823 次

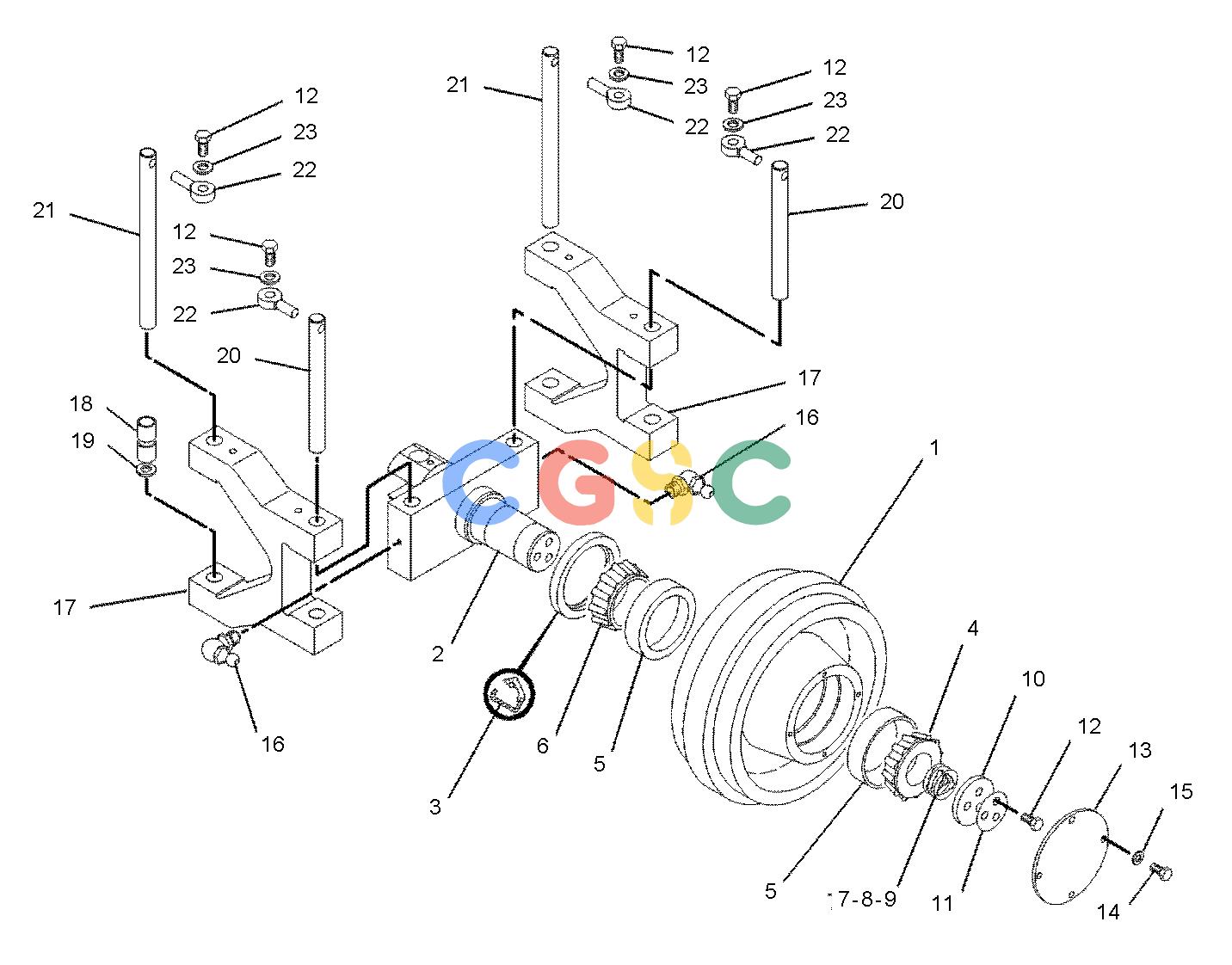

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-7938 | [1] | IDLER | |
| 2. | 115-9254 | [1] | SHAFT AS-IDLER | |
| 3. | 1J-4034 | [1] | SEAL-LIP TYPE | |
| 4. | 006-7232 | [1] | CONE-BEARING | |
| 5. | 006-7231 | [2] | CUP-BEARING | |
| 6. | 4D-3882 | [1] | CONE-BEARING | |
| 7. | 7R-0229 | [3] | SHIM(0.005-IN THK) | |
| 8. | 7R-0230 | [3] | SHIM(0.007-IN THK) | |
| 9. | 7R-0231 | [5] | SHIM(0.02-IN THK) | |
| 10. | 109-1500 | [1] | PLATE | |
| 11. | 7R-0228 | [1] | PLATE-LOCK | |
| 12. | 8T-8917 | [7] | BOLT(1/2-13X1.25-IN) | |
| 13. | 7R-0226 | [1] | PLATE-COVER | |
| 14. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 15. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 17. | 115-9255 | [2] | LINK | |
| 18. | 5H-3895 | [8] | BUSHING-TERMINAL | |
| 19. | 8H-1037 | [4] | RING-RETAINING | |
| 20. | 108-1792 | [2] | PIN | |
| 21. | 108-1791 | [2] | PIN | |
| 22. | 5E-7940 | [4] | KEEPER | |
| 23. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
