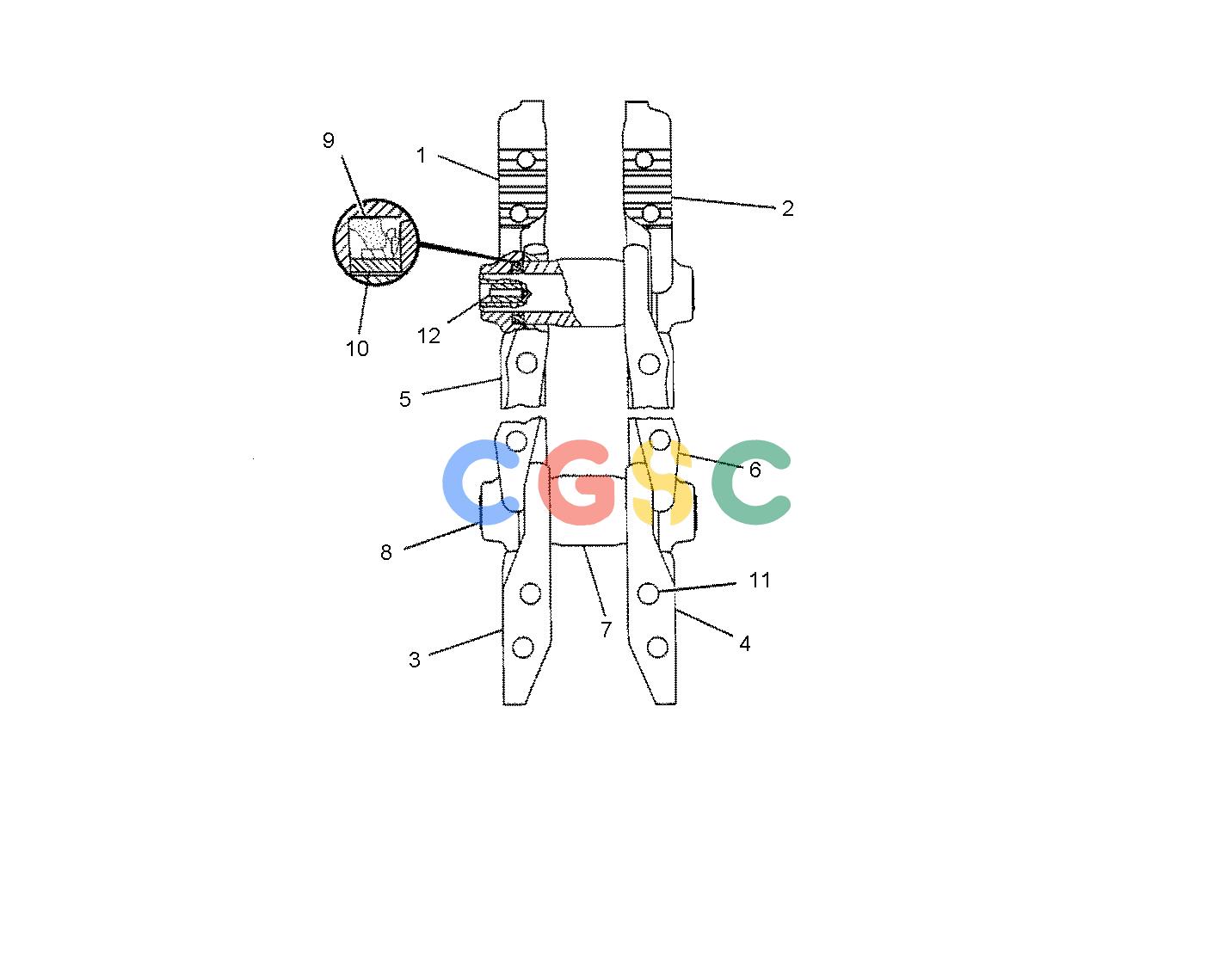

卡特零件查询（BG-225C） 222-2265: LINK AS-TRACK
广数供应链运营团队, 16 02月, 2025，浏览：
960 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-0937 | [1] | LINK-MASTER(PIN END, RH) | |
| 2. | 6Y-0938 | [1] | LINK-MASTER(PIN END, LH) | |
| 3. | 6Y-0939 | [1] | LINK-MASTER(BUSHING END, RH) | |
| 4. | 6Y-0940 | [1] | LINK-MASTER(BUSHING END, LH) | |
| 5. | 6Y-0935 | [45] | LINK-TRACK(RH) | |
| 6. | 6Y-0936 | [45] | LINK-TRACK(LH) | |
| 7. | 111-1522 | [46] | BUSHING-TRACK | |
| 8. | 303-9455 | [46] | PIN-TRACK | |
| 9. | 250-4002C | [92] | SEAL AS | |
| 10. | 6S-9049 | [92] | RING-THRUST | |
| 11. | 5A-3187 | [4] | BOLT-TRACK(9/16-18X3-IN) | |
| 12. | 6Y-1198 | [46] | STOP AS | |
| | | | (EACH INCLUDES) |
| | 5G-2247 | [1] | STOPPER-RUBBER | |
| | 6Y-0473 | [1] | PLUG-CLEAR | |
| | C | | CHANGE FROM PREVIOUS TYPE |
