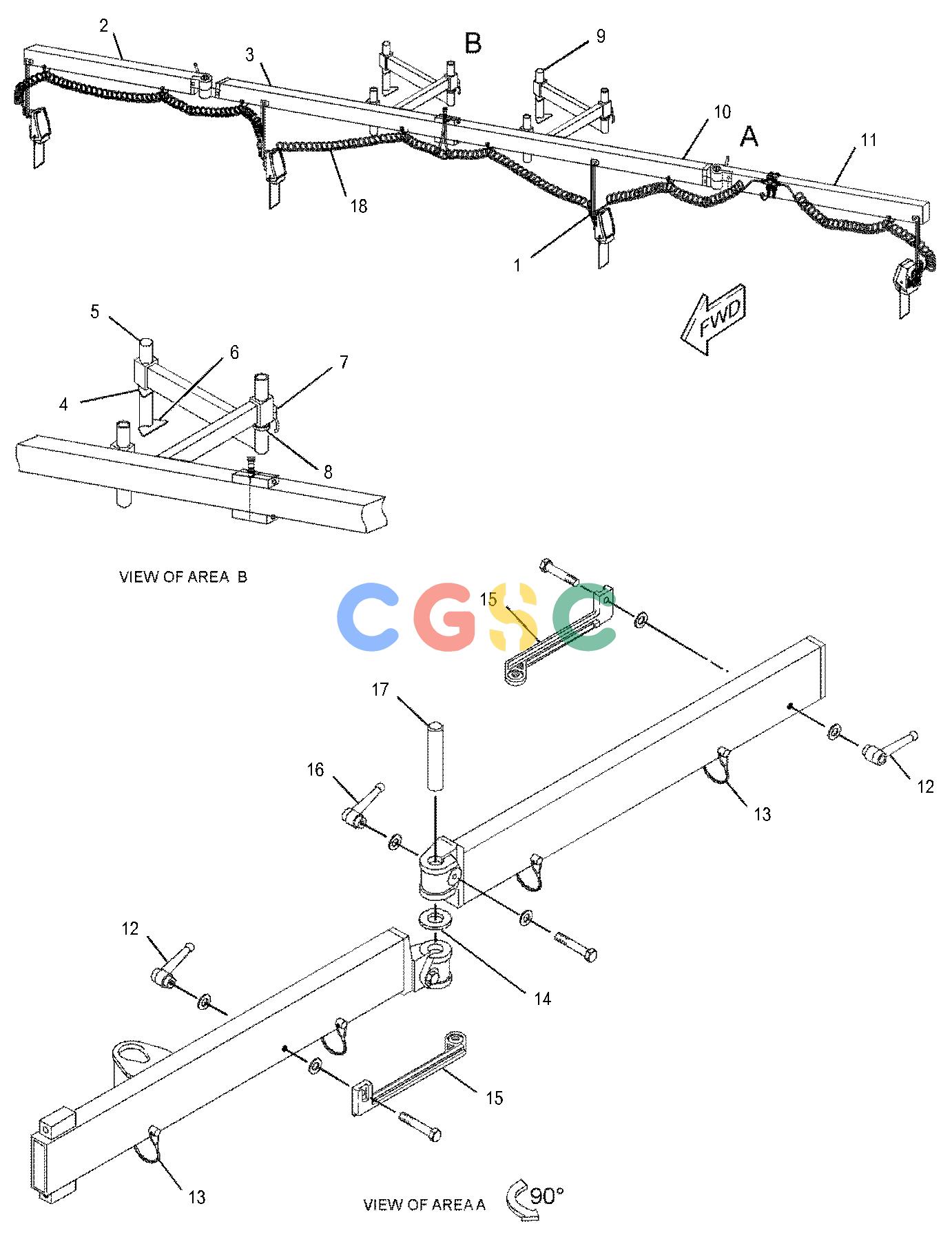

卡特零件查询（BG-225C） 239-2366: MOUNTING GP-AVERAGING SKI
广数供应链运营团队, 16 02月, 2025，浏览：
494 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 284-8882 | [4] | HANDLE | |
| 2. | 290-9895 | [1] | BEAM | |
| 3. | 290-9894 | [1] | BEAM | |
| 4. | 284-8883 | [2] | COLLAR-STOP | |
| 5. | 284-8877 | [2] | TUBE | |
| 6. | 284-8878 | [4] | GUSSET | |
| 7. | 284-8881 | [2] | HANDLE | |
| 8. | 284-8875 | [4] | COLLAR | |
| 9. | 284-8880 | [2] | ARM-PIVOT | |
| 10. | 290-9893 | [1] | BEAM | |
| 11. | 290-9896 | [1] | BEAM | |
| 12. | 284-8887 | [4] | HANDLE-CLAMP | |
| 13. | 289-3591 | [8] | PIN | |
| 14. | 284-8879 | [2] | WASHER(32.5X63.5X7.1-MM THK) | |
| 15. | 284-8885 | [4] | HANGER | |
| 16. | 284-8886 | [2] | HANDLE-CLAMP | |
| 17. | 284-8888 | [2] | PIN-HINGE | |
| 18. | 453-3710 | [1] | KIT-CABLE | |
| | | | (INCLUDES STRAP, BRACKET, KNOB, WASHERS, SCREWS, BUMPER & CABLE AS) |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
