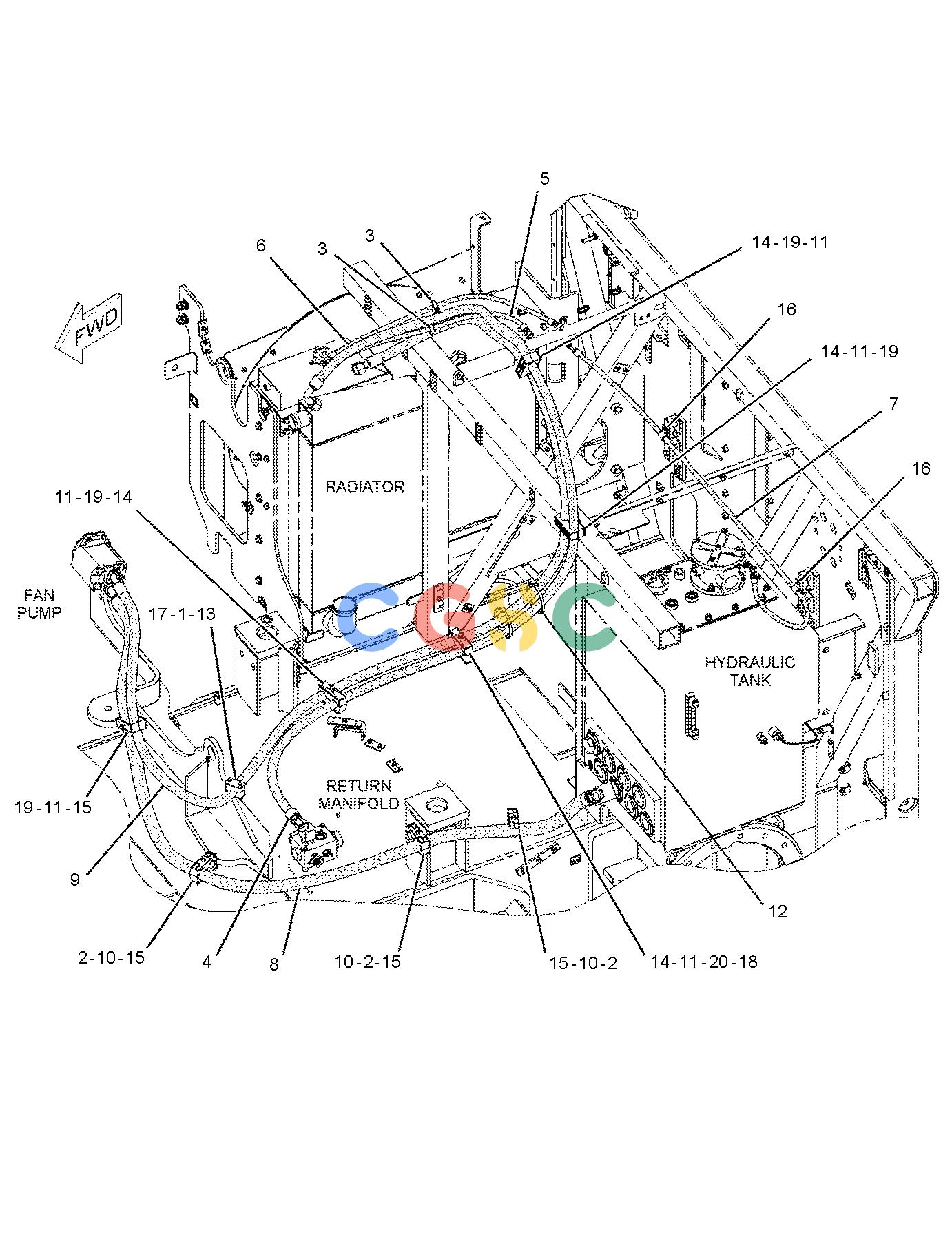

卡特零件查询（AP-655C） 198-6166: LINES GP-HYDRAULIC FAN
广数供应链运营团队, 16 02月, 2025，浏览：
499 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 143-9644 | [1] | PLATE-RETAINER | |
| 2. | 154-4892M | [3] | BOLT-STACKING(M8X1.25X61-MM) | |
| 3. | 178-3620 | [2] | STRAP-DUAL CLAMP | |
| 4. | 204-4387I | [1] | HOSE AS | |
| 5. | 204-4416I | [1] | HOSE AS | |
| 6. | 204-4417I | [1] | HOSE AS | |
| 7. | 204-4418I | [1] | HOSE AS | |
| 8. | 204-4425I | [1] | HOSE AS | |
| 9. | 204-4427I | [1] | HOSE AS | |
| 10. | 206-0452 | [3] | PLATE | |
| 11. | 207-4499 | [5] | PLATE-COVER | |
| 12. | 7K-1181 | [2] | STRAP-CABLE | |
| 13. | 206-1511 | [2] | CLAMP-HALF | |
| 14. | 206-6413 | [8] | CLAMP-HALF | |
| 15. | 206-6414 | [8] | CLAMP-HALF | |
| 16. | 6D-3479 | [2] | CLIP | |
| 17. | 8T-2947M | [2] | BOLT(M6X1X45-MM) | |
| 18. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | 8T-6869M | [4] | BOLT(M8X1.25X60-MM) | |
| 20. | 8T-6870M | [1] | BOLT(M8X1.25X70-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
