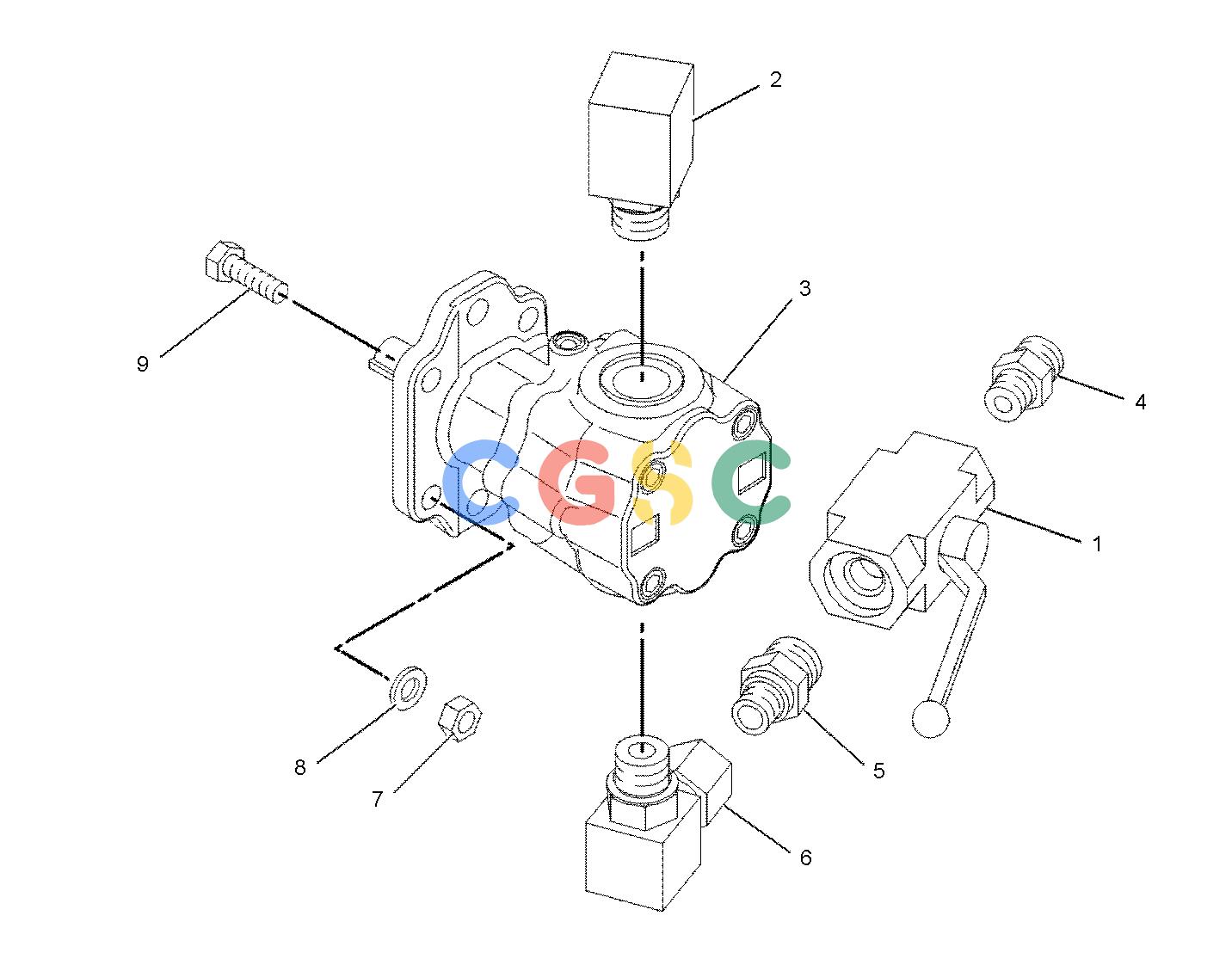

卡特零件查询（AP-655C） 190-9961: MOTOR & MTG GP-VENTILATION
广数供应链运营团队, 16 02月, 2025，浏览：
556 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 197-1725 | [1] | VALVE-SHUTOFF(PAVER VENTILATION) | |
| 2. | 205-3692 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2134 | [1] | ELBOW | |
| 3. | 216-4936 | [1] | MOTOR GP-GEAR(PAVER VENTILATION) | |
| | 231-2926 | [1] | KIT-SEAL(PAVER VENTILATION MOTOR) | |
| 4. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 5. | 150-4043 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9873 | [1] | CONNECTOR | |
| 6. | 171-6728 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 8T-0249 | [1] | ELBOW(SWIVEL) | |
| 7. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 8. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
