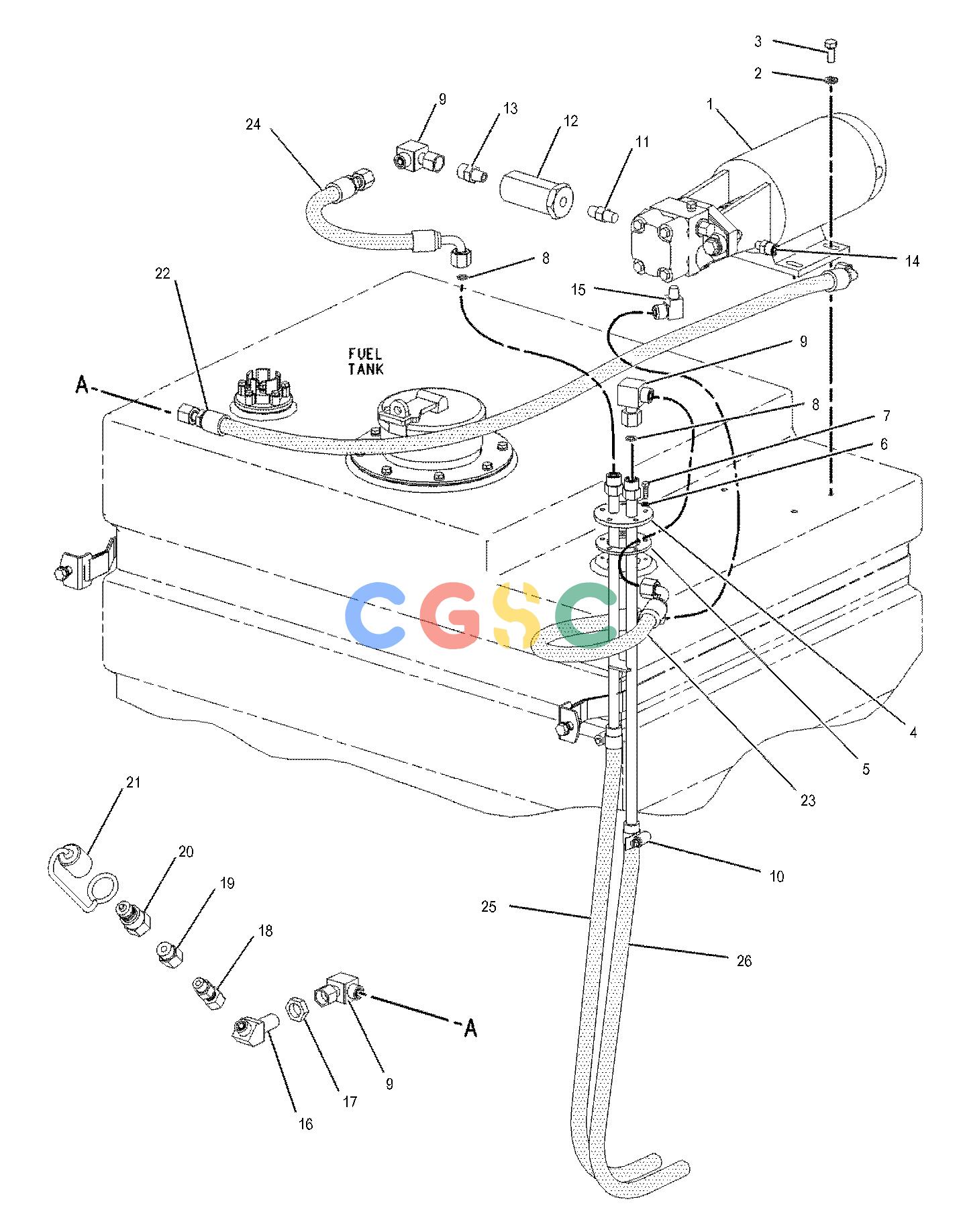

卡特零件查询（AP-655C） 191-8575: PUMP GP-FUEL TRANSFER
广数供应链运营团队, 16 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 201-7598Y | [1] | PUMP & MOTOR GP-WASHDOWN | |
| 2. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 3. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 4. | 144-5339 | [1] | TUBE AS-FUEL | |
| 5. | 9R-7240 | [1] | GASKET | |
| 6. | 8T-0328 | [5] | WASHER-HARD(5.5X10X1-MM THK) | |
| 7. | 6V-4298M | [5] | BOLT(M5X0.8X16-MM) | |
| 8. | 6V-8397 | [2] | SEAL-O-RING | |
| 9. | 148-8367 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 10. | 6S-8620 | [2] | CLAMP-HOSE | |
| 11. | 5P-8998 | [1] | FITTING | |
| 12. | 119-0072 | [1] | FILTER GP-FUEL | |
| | 119-0073 | [1] | FILTER ELEMENT-FUEL | |
| 13. | 164-5597 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-6868 | [1] | CONNECTOR | |
| 14. | 148-8320 | [1] | CONNECTOR AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6865 | [1] | CONNECTOR | |
| 15. | 199-6290 | [1] | ELBOW AS | |
| | 2T-2305 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 16. | 148-8366 | [1] | ELBOW AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8987 | [1] | ELBOW | |
| 17. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 18. | 150-3070 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 7X-3163 | [1] | ADAPTER-SWIVEL | |
| 19. | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| 20. | 5R-6306 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 21. | 5R-6302 | [1] | CAP-DUST | |
| 22. | 201-7395I | [1] | HOSE AS | |
| 23. | 124-4144I | [1] | HOSE AS | |
| 24. | 155-3973I | [1] | HOSE AS | |
| 25. | 5P-1518E | | HOSE(81-CM) (TANK SUCTION) | |
| 26. | 5P-1518E | | HOSE(73-CM) (TANK RETURN LINE) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
