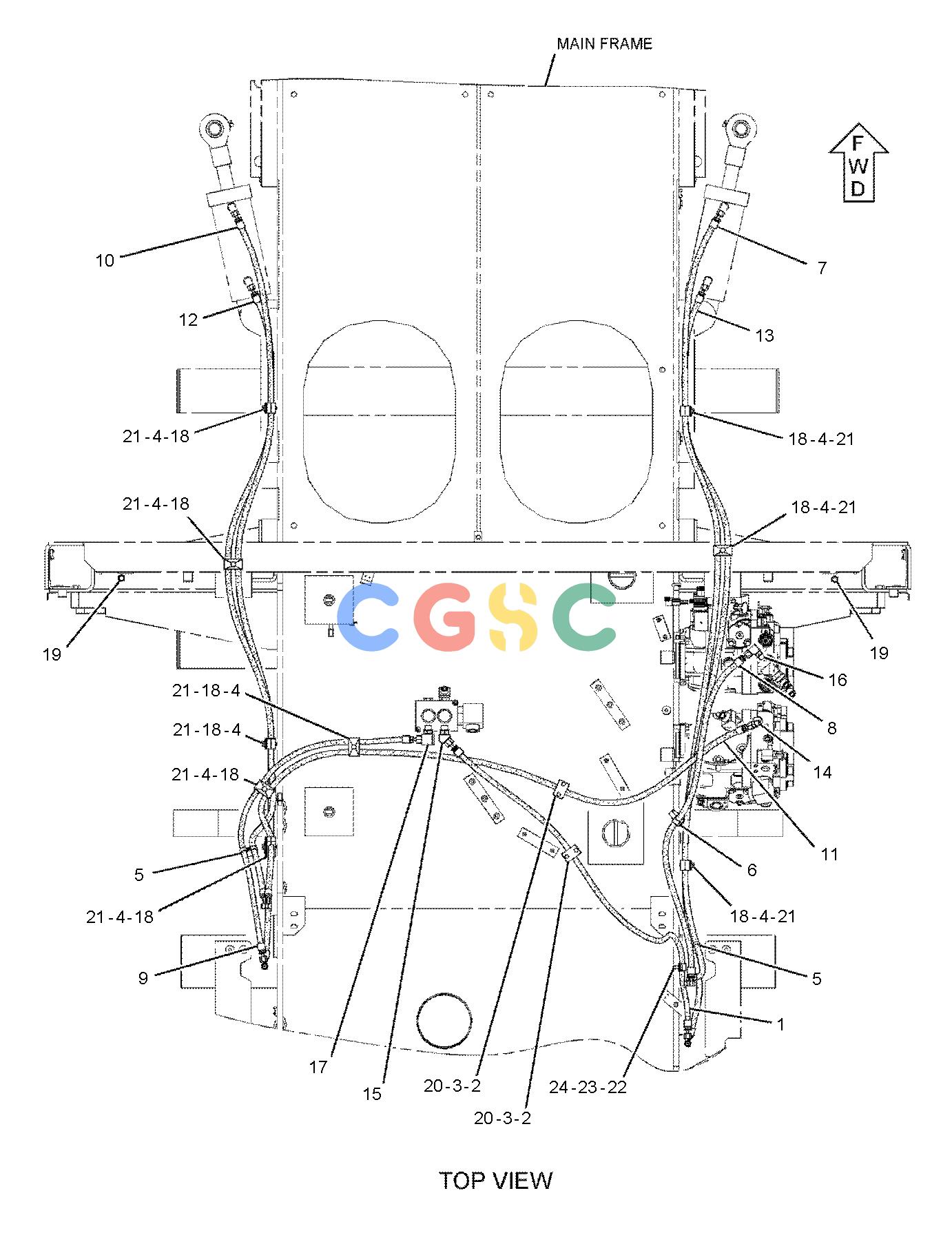

卡特零件查询（AP-655D） 270-3542: LINES GP-TRACK TENSION

广数供应链运营团队, 17 02月, 2025，浏览： 680 次

Pos.	Part No	Qty	Parts name
1.	1G-9432I	[1]	HOSE AS
2.	1G-9960	[4]	CLAMP
3.	7V-5628	[2]	PLATE
4.	102-8703	[9]	PLATE-COVER
5.	177-2215	[2]	STRAP-DUAL CLAMP
6.	178-3620	[1]	STRAP-DUAL CLAMP
7.	192-0920I	[1]	HOSE AS
8.	255-0577I	[1]	HOSE AS
9.	293-6560I	[1]	HOSE AS
10.	293-6561I	[1]	HOSE AS
11.	293-6562I	[1]	HOSE AS
12.	293-6563I	[1]	HOSE AS
13.	293-6564I	[1]	HOSE AS
14.	148-8325	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8641	[1]	CONNECTOR
15.	148-8363	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9876	[1]	ELBOW
16.	148-8368	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8627	[1]	ELBOW
17.	148-8374	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8723	[1]	ELBOW
18.	156-5306	[18]	CLAMP-HALF
19.	6V-9828	[2]	CAP
20.	8C-8451M	[4]	BOLT(M6X1X40-MM)
21.	7X-2537M	[9]	BOLT(M8X1.25X35-MM)
22.	8T-4189M	[1]	BOLT(M8X1.25X20-MM)
23.	8T-4224	[1]	WASHER-HARD(8.8X16X2-MM THK)
24.	9M-8406	[1]	CLIP(LOOP)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
