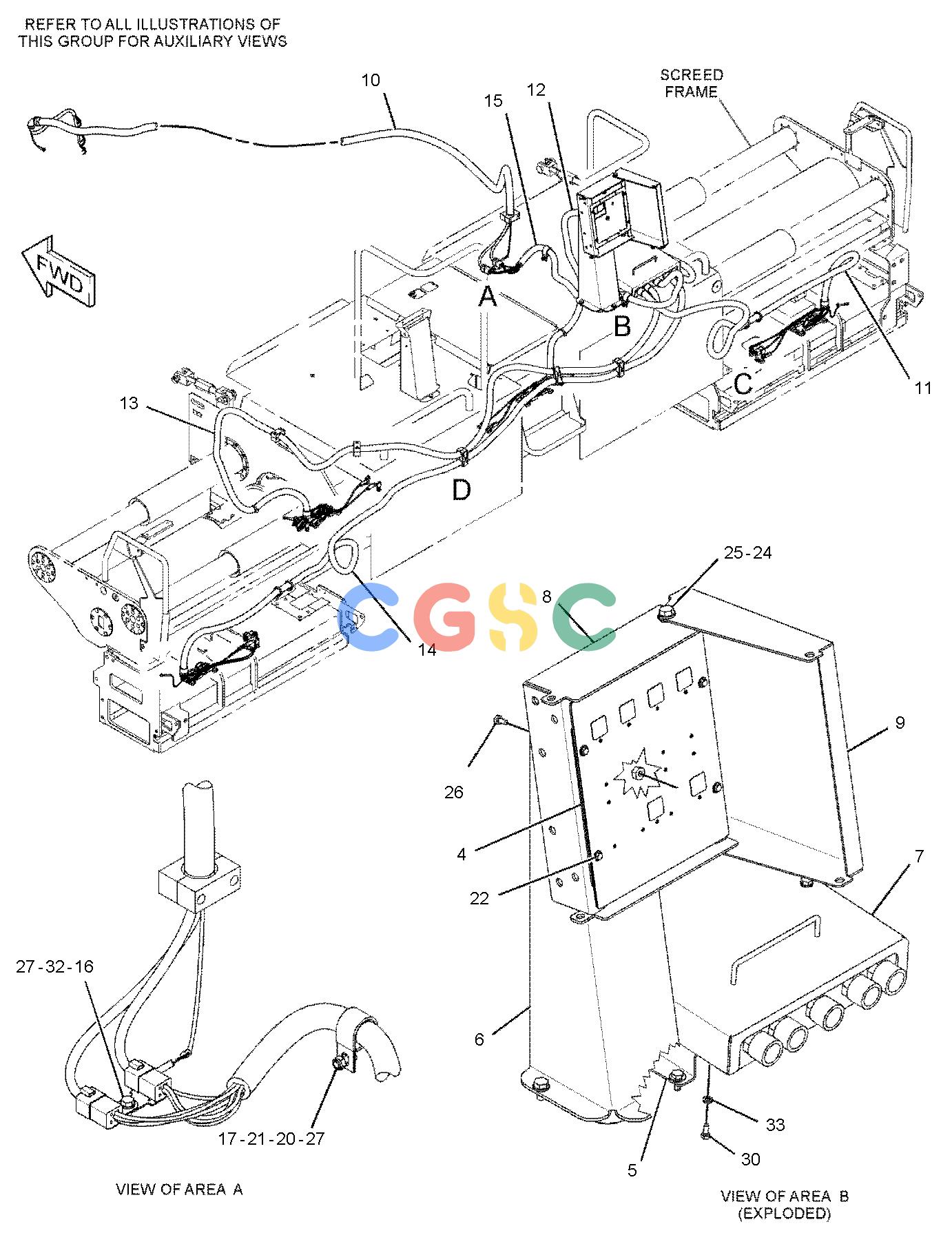

| 1. | 116-0118 | [31] | CLIP | |
| 2. | 138-4572 | [3] | COVER | |
| 3. | 148-0342 | [6] | CLAMP | |
| 4. | 291-3876 | [1] | PANEL GP-CONTROL | |
| | 229-3128 | [1] | PANEL AS | |
| 5. | 286-3636 | [1] | SUPPORT | |
| 6. | 288-9429 | [1] | SUPPORT AS-CONTROL | |
| | 7T-1099 | [4] | LINK | |
| 7. | 295-9766Y | [1] | BOX GP-RELAY | |
| 8. | 296-7912 | [1] | BOX AS | |
| | 8T-8874M | [4] | NUT-WELD(M5X0.8-THD) | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| | 296-7913 | [1] | PLATE | |
| 9. | 296-7914 | [1] | COVER | |
| 10. | 303-2133Y | [1] | FASTENER GP-WIRING HARNESS | |
| 11. | 307-9145 | [1] | HARNESS AS-SCREED(EXTENDER, RH) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8N-1541 | [6] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 9G-3695 | [6] | PLUG-SEAL | |
| | 129-7163 | [6] | PLUG AS-CONNECTOR(1-PIN) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 180-9340 | [6] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 160-2250G | | SLEEVE-ABRASION(102-IN) | |
| 12. | 307-9146 | [1] | HARNESS AS-SCREED(ELECTRIC HEAT, MAIN, RH) | |
| | 129-7163 | [8] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8N-1541 | [8] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 13. | 307-9147 | [1] | HARNESS AS-SCREED(ELECTRIC HEAT, MAIN, LH) | |
| | 129-7163 | [8] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8N-1541 | [8] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 14. | 307-9148 | [1] | HARNESS AS-SCREED(EXTENDER, LH) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8N-1541 | [6] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 9G-3695 | [6] | PLUG-SEAL | |
| | 129-7163 | [6] | PLUG AS-CONNECTOR(1-PIN) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 180-9340 | [6] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 160-2250G | | SLEEVE-ABRASION(153-IN) | |
| 15. | 307-9149 | [1] | HARNESS AS-SCREED(GENERATOR) | |
| | 177-9656 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 177-9653 | [2] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 7T-0093 | [8] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 7T-0094 | [8] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8078 | [1] | TERMINAL-RING(14-GA TO 16-GA, 5/16-IN SCREW) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 16. | 130-5300 | [2] | CLIP | |
| 17. | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 18. | 139-0428 | [6] | CLAMP | |
| 19. | 1R-5396M | [6] | BOLT(M6X1X35-MM) | |
| 20. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 5P-7854 | [2] | CLIP | |
| 22. | 6V-4298M | [4] | BOLT(M5X0.8X16-MM) | |
| 23. | 7K-1181 | [6] | STRAP-CABLE | |
| 24. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4137M | [5] | BOLT(M10X1.5X20-MM) | |
| 26. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 27. | 8T-4189M | [7] | BOLT(M8X1.25X20-MM) | |
| 28. | 8T-4199M | [21] | BOLT(M8X1.25X12-MM) | |
| 29. | 8T-4224 | [21] | WASHER-HARD(8.8X16X2-MM THK) | |
| 30. | 8T-4970M | [2] | BOLT(M6X1X14-MM) | |
| 31. | 8T-6912M | [3] | BOLT(M8X1.25X50-MM) | |
| 32. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 9X-8256 | [10] | WASHER(6.6X12X2-MM THK) | |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
