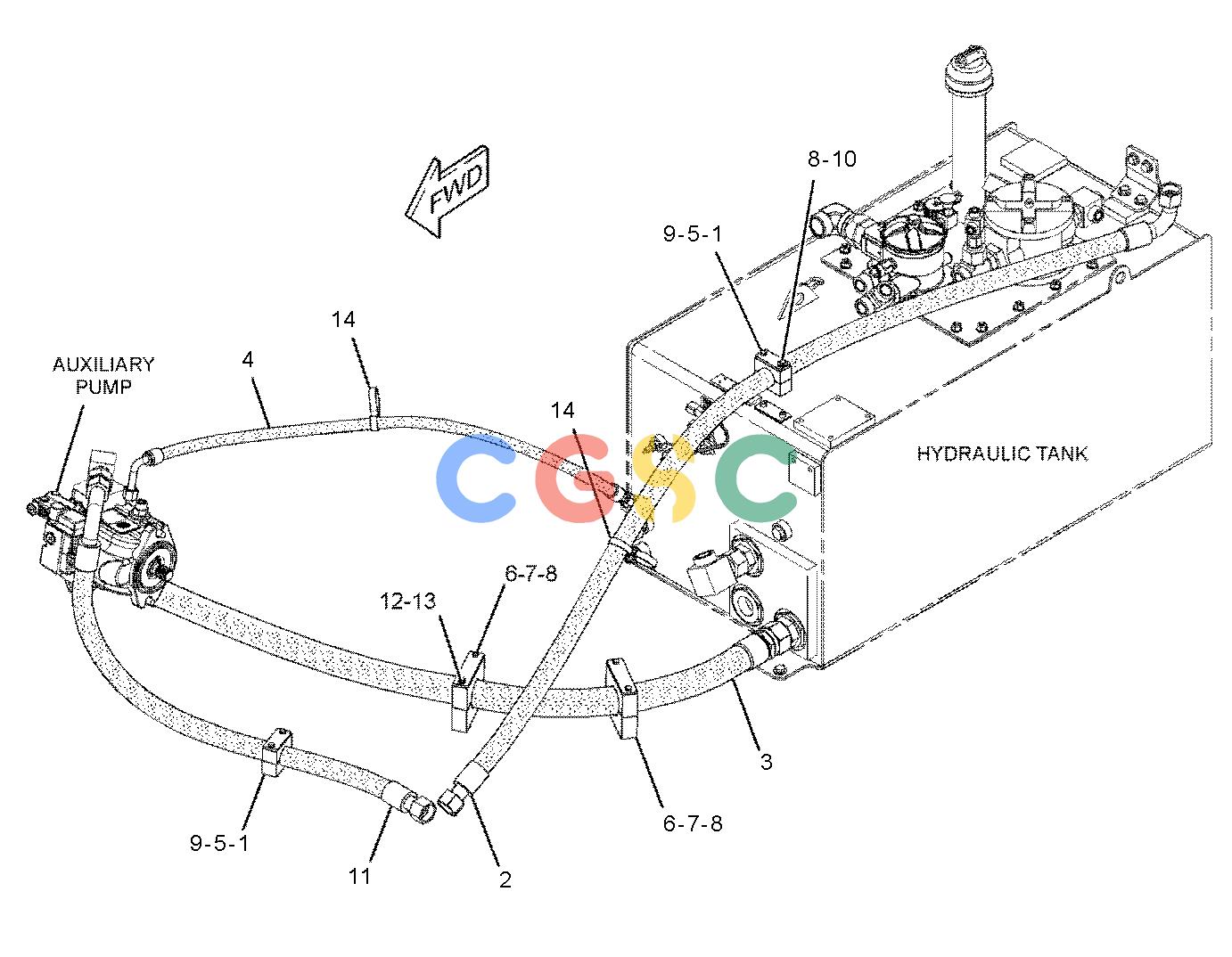

卡特零件查询（BG655D） 270-7242: LINES GP-PUMP
广数供应链运营团队, 17 02月, 2025，浏览：
447 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5V-6152 | [4] | CLAMP | |
| 2. | 277-4891I | [1] | HOSE AS | |
| 3. | 277-0340I | [1] | HOSE AS | |
| 4. | 100-6623I | [1] | HOSE AS | |
| 5. | 7R-7951 | [2] | PLATE | |
| 6. | 7R-7952 | [2] | COVER | |
| 7. | 7R-7942 | [4] | CLAMP | |
| 8. | 8T-3844M | [4] | BOLT(M6X1X70-MM) | |
| 9. | 7X-2535M | [3] | BOLT(M6X1X60-MM) | |
| 10. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 11. | 280-7262I | [1] | HOSE AS | |
| 12. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 13. | 8U-5746M | [1] | BOLT(M6X1X75-MM) | |
| 14. | 178-3620 | [2] | STRAP-DUAL CLAMP | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
