卡特零件查询（BG655D） 270-7244: LINES GP-RETURN
广数供应链运营团队, 17 02月, 2025，浏览：
899 次

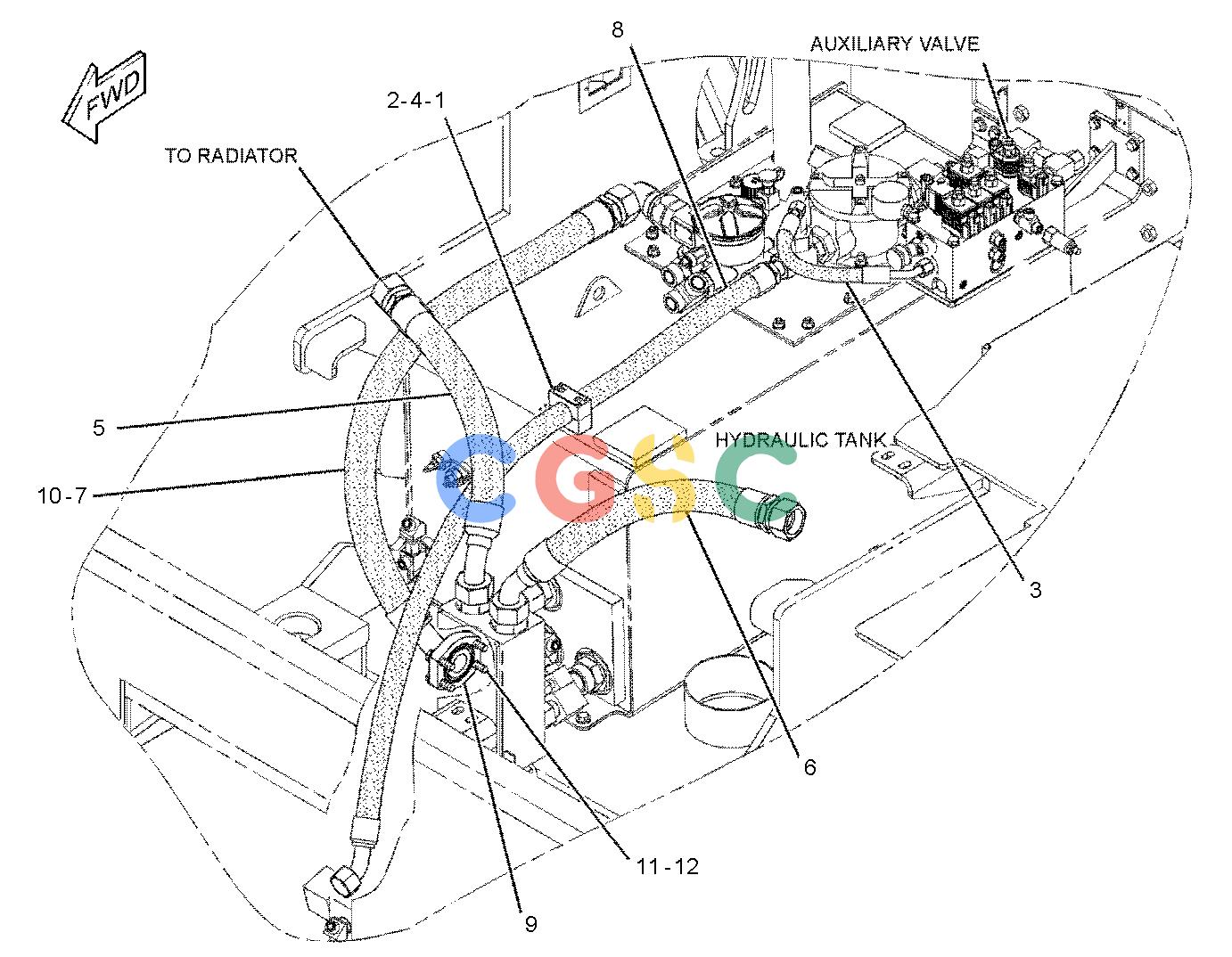

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5V-6152 | [2] | CLAMP | |
| 2. | 7R-7955 | [1] | PLATE(SLOTTED) | |
| 3. | 382-1497I | [1] | HOSE AS | |
| 4. | 196-4206M | [2] | BOLT-STACKING(M6X1X64-MM) | |
| 5. | 277-5337I | [1] | HOSE AS | |
| 6. | 277-5339I | [1] | HOSE AS | |
| 7. | 277-5340I | [1] | HOSE AS | |
| 8. | 277-5342I | [1] | HOSE AS | |
| 9. | 1P-4582 | [2] | FLANGE-HALF | |
| 10. | 4J-0527 | [1] | SEAL-O-RING | |
| 11. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 12. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
