卡特零件查询（BG655D） 270-7229: LINES GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
709 次

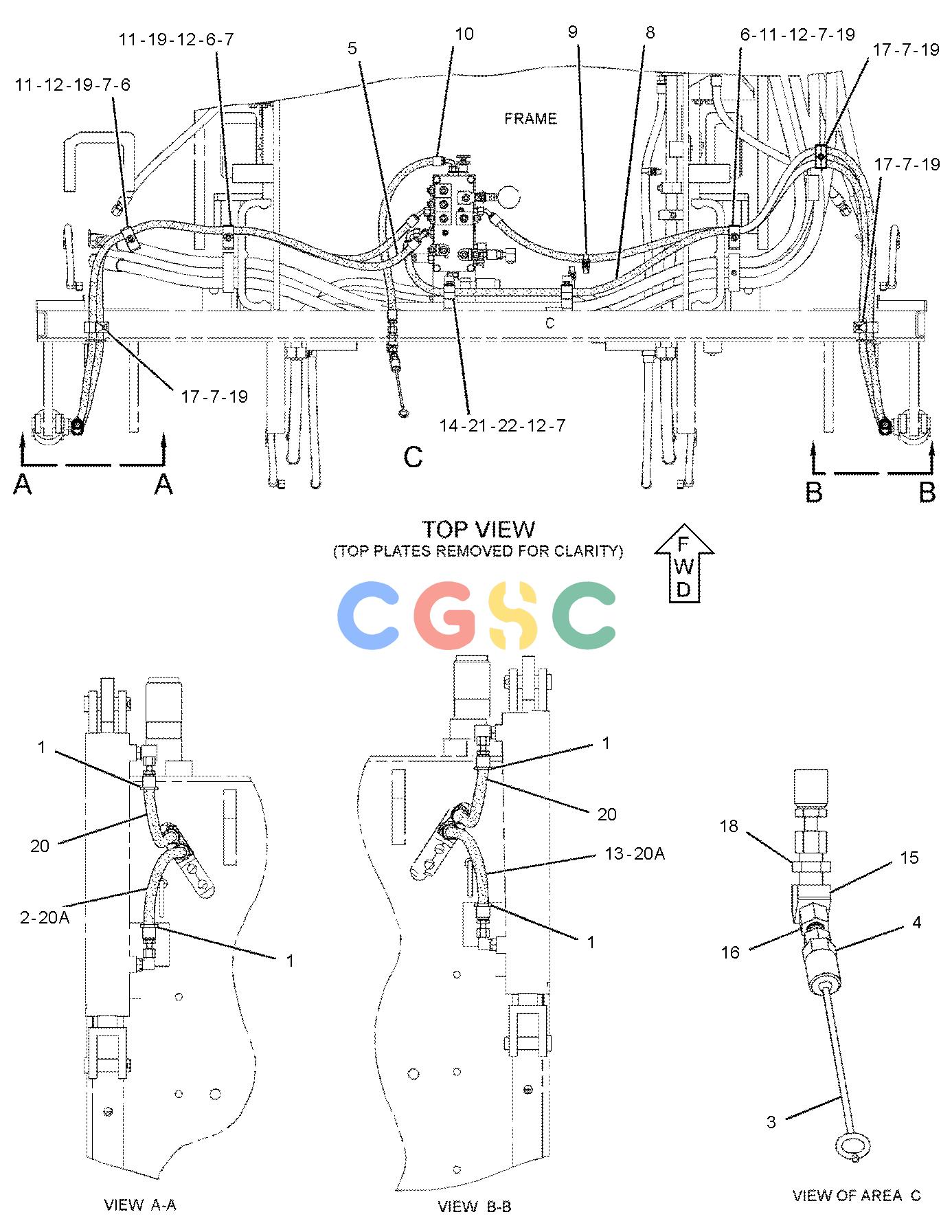

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [8] | STRAP-CABLE | |
| 2. | 5E-7958I | [1] | HOSE AS | |
| 3. | 5R-5677 | [1] | CAP-DUST(DUST) | |
| 4. | 5R-6867 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 5. | 6R-2929I | [1] | HOSE AS | |
| 6. | 6W-2462 | [12] | CLAMP | |
| 7. | 102-8705 | [8] | PLATE(TOP) | |
| 8. | 109-0095I | [1] | HOSE AS | |
| 9. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 10. | 200-1024I | [1] | HOSE AS | |
| 11. | 206-0451M | [3] | BOLT-STACKING(M8X1.25X44-MM) | |
| 12. | 206-0452 | [5] | PLATE | |
| 13. | 247-5578I | [1] | HOSE AS | |
| 14. | 143-9157 | [4] | CLAMP-DOUBLE | |
| 15. | 148-8366 | [1] | ELBOW AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8987 | [1] | ELBOW | |
| 16. | 150-3070 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 7X-3163 | [1] | ADAPTER-SWIVEL | |
| 17. | 154-4881 | [6] | CLAMP-HALF | |
| 18. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 19. | 7X-0818M | [6] | BOLT(M8X1.25X45-MM) | |
| 20. | 154-1420E | | SLEEVE(40-CM EACH) | |
| 20A. | 154-1420E | | SLEEVE(52.5-CM EACH) | |
| 21. | 8T-6912M | [2] | BOLT(M8X1.25X50-MM) | |
| 22. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
