| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

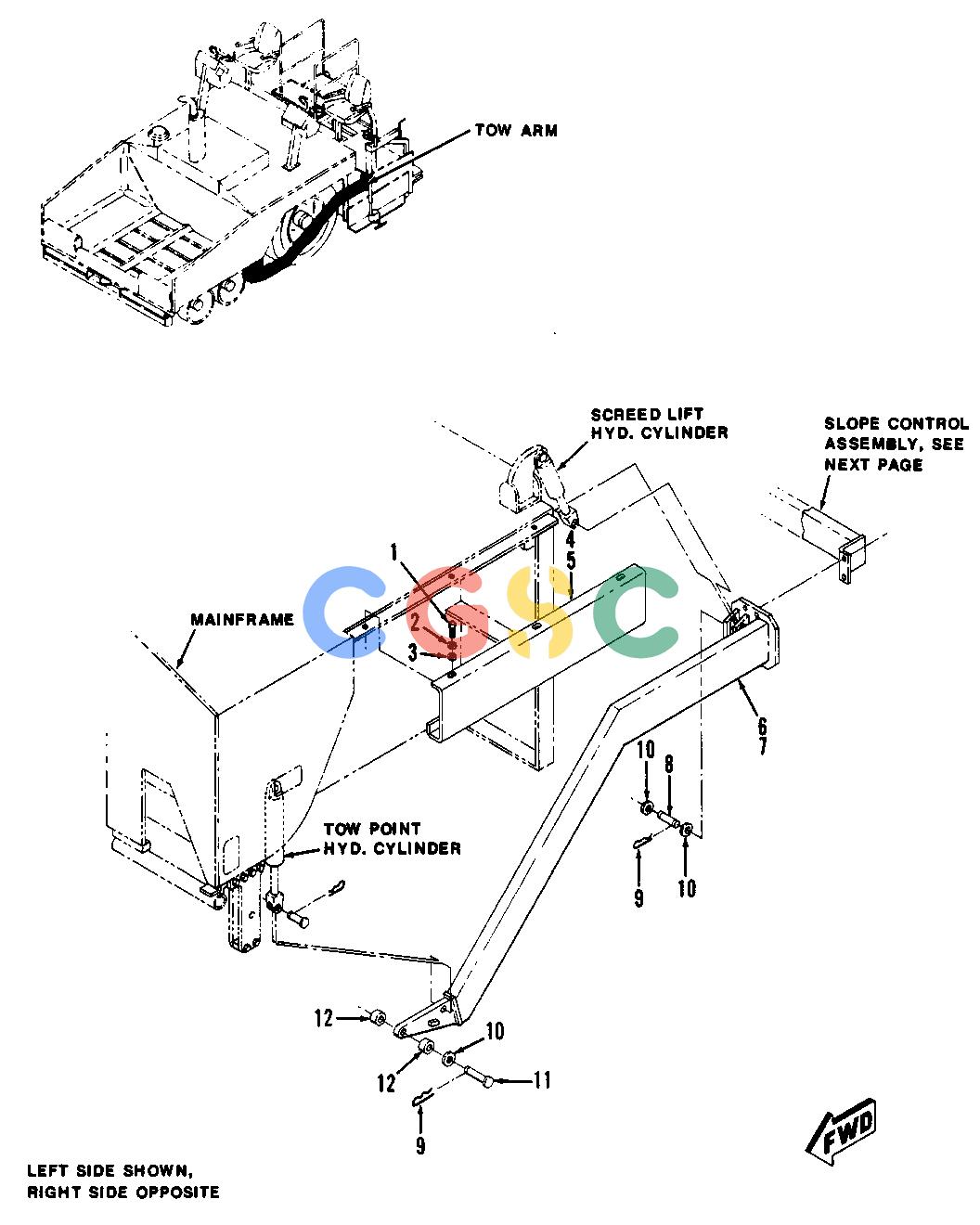

| [1] | ATTACHMENT: TOW ARMS ASSEMBLY (8 FT. SCREED) | |||
| 1. | 0S-1594 | [10] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1IN. | |
| 2. | 3B-4506 | [10] | LOCKWASHER, 3/8IN. | |
| 3. | 4B-4278 | [10] | FLATWASHER, 3/8IN. | |
| 4. | [1] | FENDER, L.H. SIDE (SHOWN) | ||
| 5. | [1] | FENDER, R.H. SIDE (OPPOSITE) | ||
| 6. | [1] | TOW ARM, L.H. SIDE (SHOWN) | ||
| 7. | [1] | TOW ARM, R.H. SIDE (OPPOSITE) | ||
| 8. | [2] | PIN | ||
| 9. | [6] | KEEPER | ||
| 10. | 4B-4285 | [6] | FLATWASHER, 1IN. | |
| 11. | [2] | PIN | ||
| 12. | [4] | ROLLER | ||
