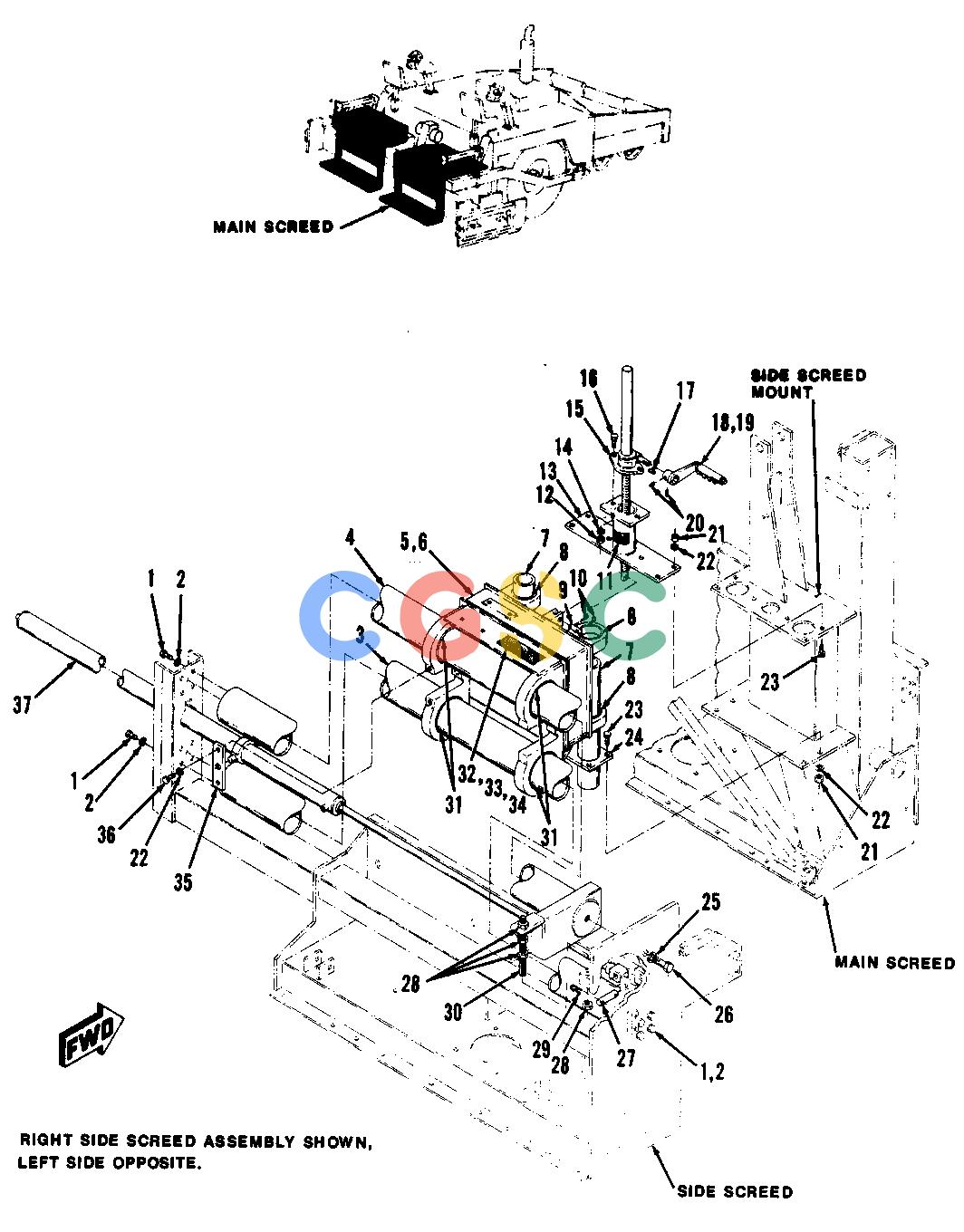

卡特零件查询（8） REAR SCREED SLIDE ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | 0S-1626 | [24] | BOLT, HEX. HD., 3/4IN.-10 N.C. X 1 1/2IN. | |
| 2. | 3B-4512 | [24] | LOCKWASHER, 3/4IN. | |
| 3. | | [2] | TUBE, LOWER |
| 4. | | [2] | TUBE, UPPER |
| 5. | | [1] | MOUNT, SIDE SCREED, LEFT |
| 6. | | [1] | MOUNT, SIDE SCREED, RIGHT |
| 7. | | [4] | SHAFT |
| 8. | | [8] | BEARING |
| 9. | | [2] | PIN |
| 10. | | [4] | PIN, COTTER, 1/8IN. DIA. X 1IN. LG. |
| 11. | | [2] | DECAL, SCREED ELEVATION |
| 12. | 1D-4717 | [4] | NUT, HEX., 3/8IN.-16 N.C. | |
| 13. | | [2] | MOUNT, CRANK |
| 14. | 3B-4506 | [4] | LOCKWASHER, 3/8IN. | |
| 15. | | [2] | JACK |
| 16. | 0S-1588 | [4] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1 1/4IN. | |
| 17. | | [2] | KEY, 1/8IN. SQ. X 7/8IN. LG. |
| 18. | | [2] | CRANK |
| 19. | | [2] | GRIP, HANDLE |
| 20. | | [4] | SETSCREW, SOC. HD., 1/4IN.-20 N.C. X 3/8IN. |
| 21. | 1D-4719 | [20] | NUT, HEX., 1/2IN.-13 N.C. | |
| 22. | 3B-4508 | [24] | LOCKWASHER, 1/2IN. | |
| 23. | 0S-1585 | [20] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/2IN. | |
| 24. | | [2] | RETAINER, SHAFT |
| 25. | 3B-4516 | [2] | LOCKWASHER, 1IN. | |
| 26. | | [2] | BOLT, HEX. HD., 1IN.-8 N.C. X 1 3/4IN. |
| 27. | | [2] | PIN |
| 28. | 1B-4333 | [8] | NUT, HEX., 1IN.-8 N.C. | |
| 29. | | [4] | KEEPER |
| 30. | | [2] | ROD, ADJUSTMENT |
| 31. | | [8] | BEARING |
| 32. | | [1] | DECAL, SCREED EXT. L.H. |
| 33. | | [1] | DECAL, SCREED EXT. R.H. |
| 34. | | [2] | DECAL, SCREED RETRACTING |
| 35. | | [2] | CAP, TRUNNION |
| 36. | | [4] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/4IN. |
| 37. | J | [2] | CYLINDER, HYDRAULIC |
| | J | | HYDRAULIC CYLINDER SEAL KIT NO |
