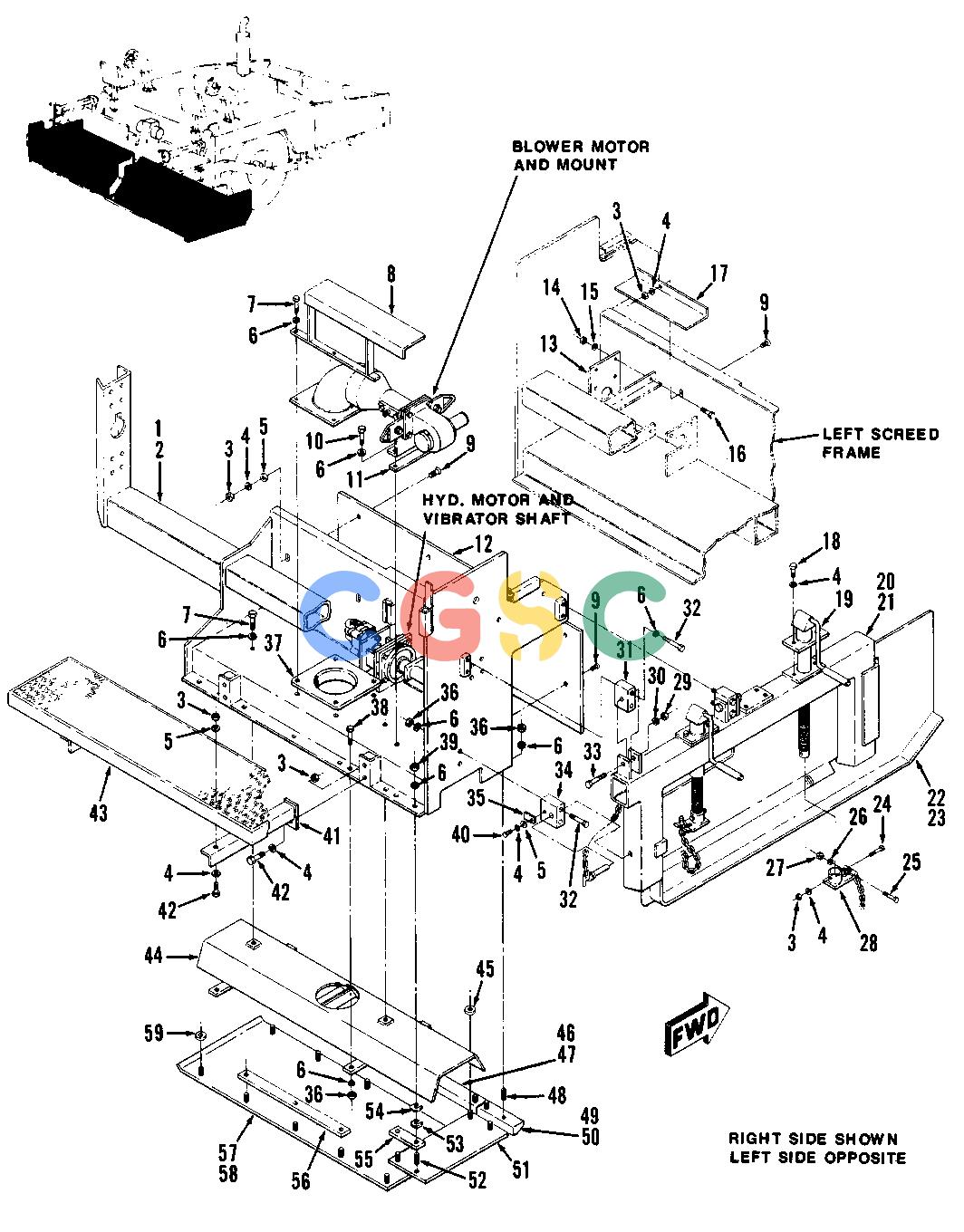

| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | | [1] | FRAME, REAR SCREED, RIGHT SIDE (SHOWN) |
| 2. | | [1] | FRAME, REAR SCREED, LEFT SIDE (OPPOSITE) |
| 3. | 1D-4717 | [40] | NUT, HEX., 3/8IN.-16 N.C. | |
| 4. | 3B-4506 | [46] | LOCKWASHER, 3/8IN. | |
| 5. | 4B-4278 | [26] | FLATWASHER, 3/8IN. | |
| 6. | 3B-4508 | [82] | LOCKWASHER, 1/2IN. | |
| 7. | 0S-1587 | [16] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 3/4IN. | |
| 8. | | [1] | GUARD, RIGHT SCREED BURNER |
| 9. | 067-7897 | [16] | CAPSCREW, CSK. HD., 3/8IN.-16 N.C. X 1 1/4IN. | |
| 10. | 0S-1585 | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/2IN. | |
| 11. | | [2] | SPACER BAR |
| 12. | | [2] | WEAR PLATE |
| 13. | | [1] | MOUNT, VIBRATOR BEARING |
| 14. | 1D-4719 | [4] | NUT, HEX., 1/2IN.-13 N.C. | |
| 15. | 3B-4508 | [4] | LOCKWASHER, 1/2IN. | |
| 16. | | [4] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/4IN. |
| 17. | | [1] | GUARD, LEFT SCREED VIBRATOR |
| 18. | | [8] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 5/8IN. |
| 19. | | [4] | CRANK |
| 20. | | [1] | SIDE PLATE SUPPORT, RIGHT SIDE (SHOWN) |
| 21. | | [1] | SIDE PLATE SUPPORT, LEFT SIDE (OPPOSITE) |
| 22. | | [1] | SIDE PLATE, RIGHT SIDE (SHOWN) |
| 23. | | [1] | SIDE PLATE, LEFT SIDE (OPPOSITE) |
| 24. | 0L-1143 | [4] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 2 1/2IN. | |
| 25. | | [4] | BOLT, HEX. HD., 1/4IN.-20 N.C. X 3/4IN. |
| 26. | 3B-4504 | [4] | LOCKWASHER, 1/4IN. | |
| 27. | 1B-4330 | [4] | NUT, HEX., 1/4IN.-20 N.C. | |
| 28. | | [4] | CRANK BASE |
| 29. | 1B-4331 | [4] | NUT, HEX., 3/4IN.-10 N.C. | |
| 30. | 3B-4512 | [4] | LOCKWASHER, 3/4IN. | |
| 31. | | [4] | BLOCK, SIDE PLATE MOUNTING |
| 32. | | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 4IN. |
| 33. | | [4] | BOLT, HEX. HD., 3/4IN.-10 N.C. X 3 1/2IN. |
| 34. | | [2] | BLOCK |
| 35. | | [2] | LOCK |
| 36. | 1D-4719 | [46] | NUT, HEX., 1/2IN.-13 N.C. | |
| 37. | | [2] | PLATE, ADAPTER |
| 38. | | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/4IN. |
| 39. | | [28] | NUT, HEX., 1/2IN.-20 N.F. |
| 40. | 0S-1594 | [6] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1IN. | |
| 41. | | [4] | SUPPORT, PLATFORM |
| 42. | | [16] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1 1/4IN. |
| 43. | | [2] | PLATFORM |
| 44. | | [2] | BAFFLE |
| 45. | | [14] | SPACER |
