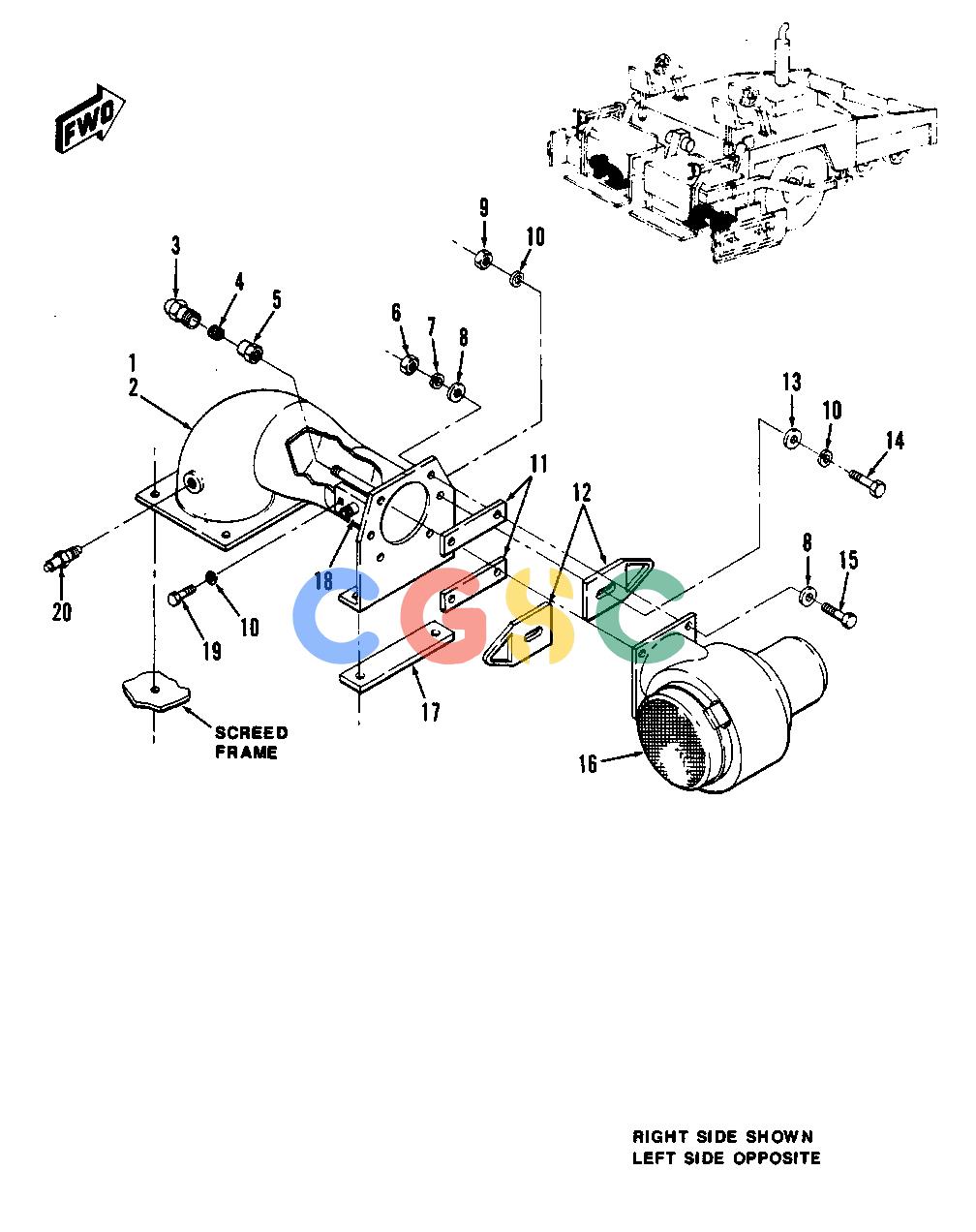

卡特零件查询（8） REAR SCREED BLOWER ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
980 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | | [1] | SUPPORT, RIGHT SCREED BLOWER (SHOWN) |
| 2. | | [1] | SUPPORT, LEFT SCREED BLOWER (OPPOSITE) |
| 3. | | [2] | NOZZLE |
| 4. | | [2] | FILTER |
| 5. | | [2] | ADAPTER |
| 6. | 1B-4330 | [8] | NUT, HEX., 1/4IN.-20 N.C. | |
| 7. | 3B-4504 | [8] | LOCKWASHER, 1/4IN. | |
| 8. | | [16] | FLATWASHER, 1/4IN. |
| 9. | 1D-4717 | [4] | NUT, HEX. HD., 3/8IN.-16 N.C. | |
| 10. | | [12] | LOCKWASHER, 3/8IN. |
| 11. | | [4] | SPACER, BAFFLE |
| 12. | | [4] | BAFFLE |
| 13. | 4B-4278 | [4] | FLATWASHER, 3/8IN. | |
| 14. | | [4] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1 1/2IN. |
| 15. | 7B-2742 | [8] | BOLT, HEX. HD., 1/4IN.-20 N.C. X 1 1/4IN. | |
| 16. | | [2] | BLOWER MOTOR ASSEMBLY |
| 17. | | [2] | SPACER BAR |
| 18. | | [2] | ELBOW |
| 19. | 0S-1594 | [4] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1IN. | |
| 20. | | [2] | GLOW PLUG, 12 V. |
