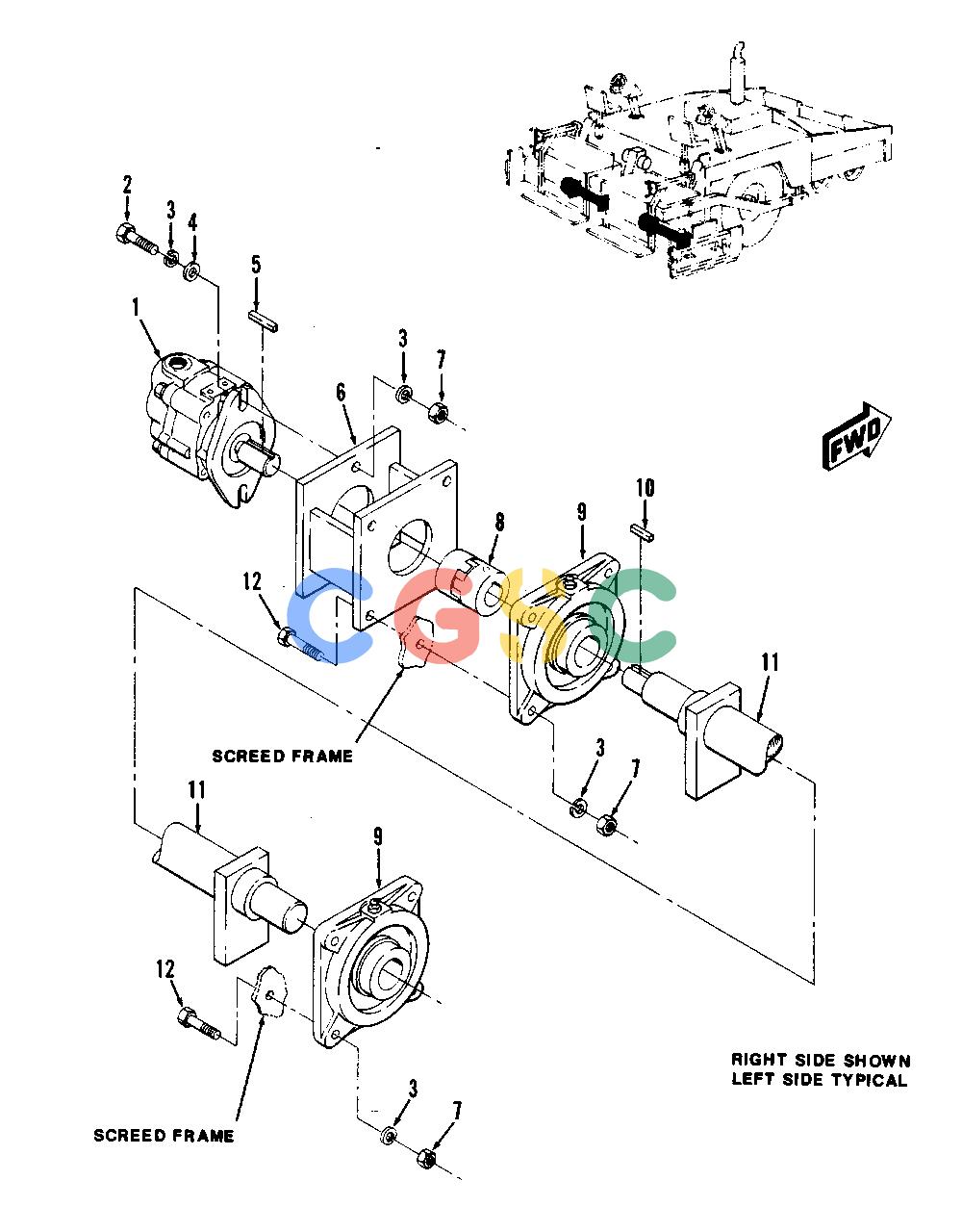

卡特零件查询（8） REAR SCREED VIBRATOR ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
489 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | | [2] | HYDRAULIC MOTOR |
| 2. | 0S-1585 | [4] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/2IN. | |
| 3. | 3B-4508 | [24] | LOCKWASHER, 1/2IN. | |
| 4. | 4B-4280 | [4] | FLATWASHER, 1/2IN. | |
| 5. | | [2] | KEY, 1/8IN. SQ. X 7/8IN. |
| 6. | | [2] | MOUNT, VIBRATOR MOTOR |
| 7. | 1D-4719 | [20] | NUT, HEX., 1/2IN.-13 N.C. | |
| 8. | | [2] | COUPLING |
| 9. | | [4] | BEARING |
| 10. | | [2] | KEY, 1/4IN. SQ. X 1IN. |
| 11. | | [2] | SHAFT, VIBRATOR |
| 12. | 0S-1587 | [16] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 3/4IN. | |
