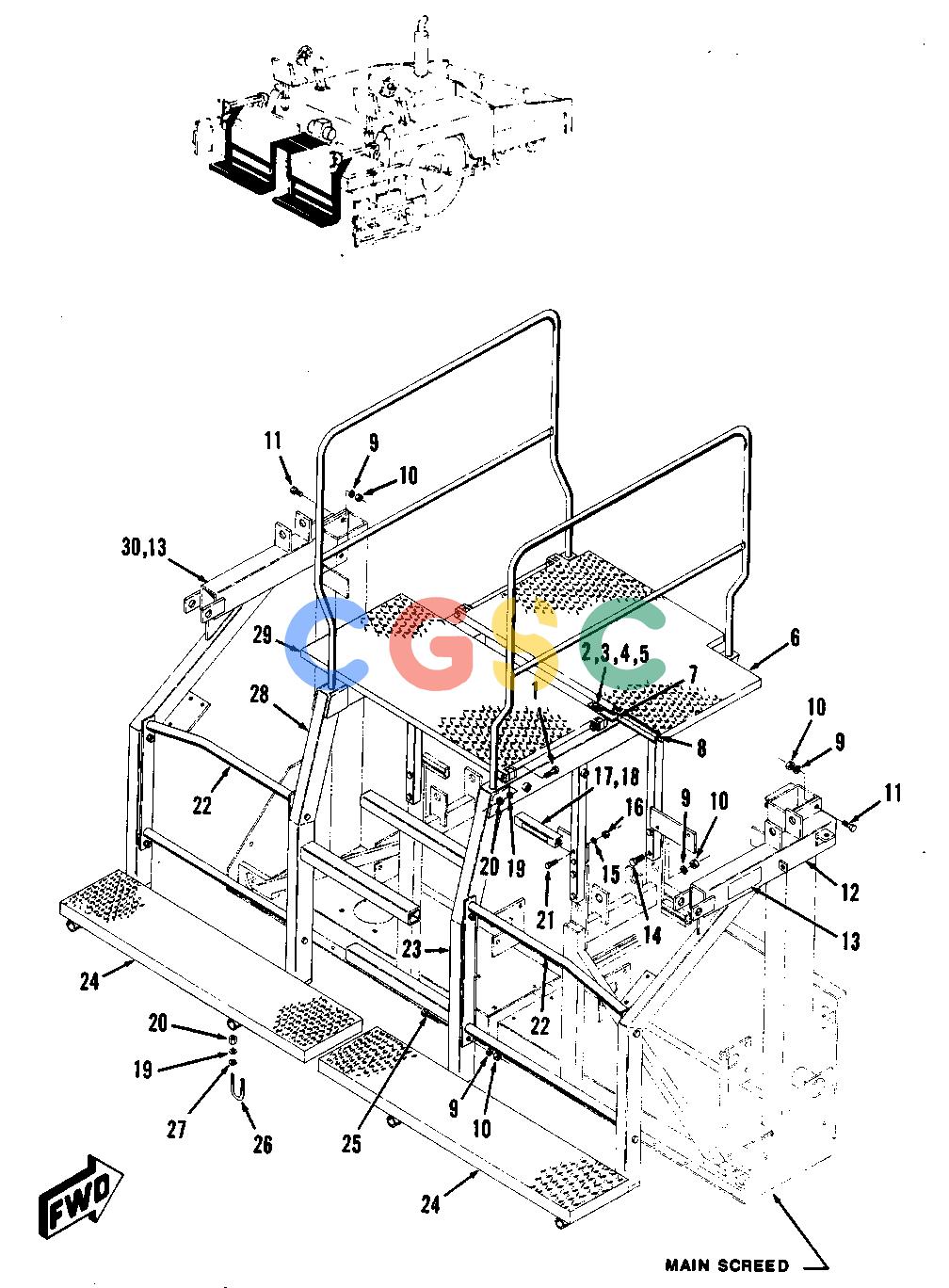

卡特零件查询（8） PLATFORMS AND HANDRAILS ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
582 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | 0L-1143 | [4] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 2 1/2IN. | |
| 2. | 7B-2742 | [1] | BOLT, HEX. HD., 1/4IN.-20 N.C. X 1 1/4IN. | |
| 3. | 1B-4330 | [1] | NUT, HEX., 1/4IN.-20 N.C. | |
| 4. | 4B-4276 | [1] | FLATWASHER, 1/4IN. | |
| 5. | 3B-4504 | [1] | LOCKWASHER, 1/4IN. | |
| 6. | | [1] | PLATFORM |
| 7. | | [1] | INDICATOR |
| 8. | | [1] | DECAL, SLOPE |
| 9. | 3B-4508 | [24] | LOCKWASHER, 1/2IN. | |
| 10. | 1D-4719 | [24] | NUT, HEX., 1/2IN.-13 N.C. | |
| 11. | 0S-1587 | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 3/4IN. | |
| 12. | | [1] | SUPPORT, RIGHT SIDE |
| 13. | | [2] | DECAL, LOCKING LINK |
| 14. | 9S-1366 | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 2 1/2IN. | |
| 15. | 3B-4505 | [2] | LOCKWASHER, 5/16IN. | |
| 16. | | [2] | NUT, HEX., 5/16IN.-18 N.C. |
| 17. | | [1] | FUEL MANIFOLD |
| 18. | | [1] | DECAL, BURNER FUEL SELECTION |
| 19. | 3B-4506 | [20] | LOCKWASHER, 3/8IN. | |
| 20. | 1D-4717 | [20] | NUT, HEX., 3/8IN.-16 N.C. | |
| 21. | | [2] | BOLT, HEX. HD., 5/16IN.-18 N.C. X 2 1/4IN. |
| 22. | | [2] | HANDRAIL |
| 23. | | [1] | PLATFORM SUPPORT, RIGHT SIDE |
| 24. | | [2] | PLATFORM |
| 25. | 0L-1329 | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 3IN. | |
| 26. | | [8] | BOLT, "U", 3/8IN. |
| 27. | 4B-4278 | [16] | FLATWASHER, 3/8IN. | |
| 28. | | [1] | PLATFORM SUPPORT, LEFT SIDE |
| 29. | | [1] | PLATFORM |
| 30. | | [1] | SUPPORT, LEFT SIDE |
