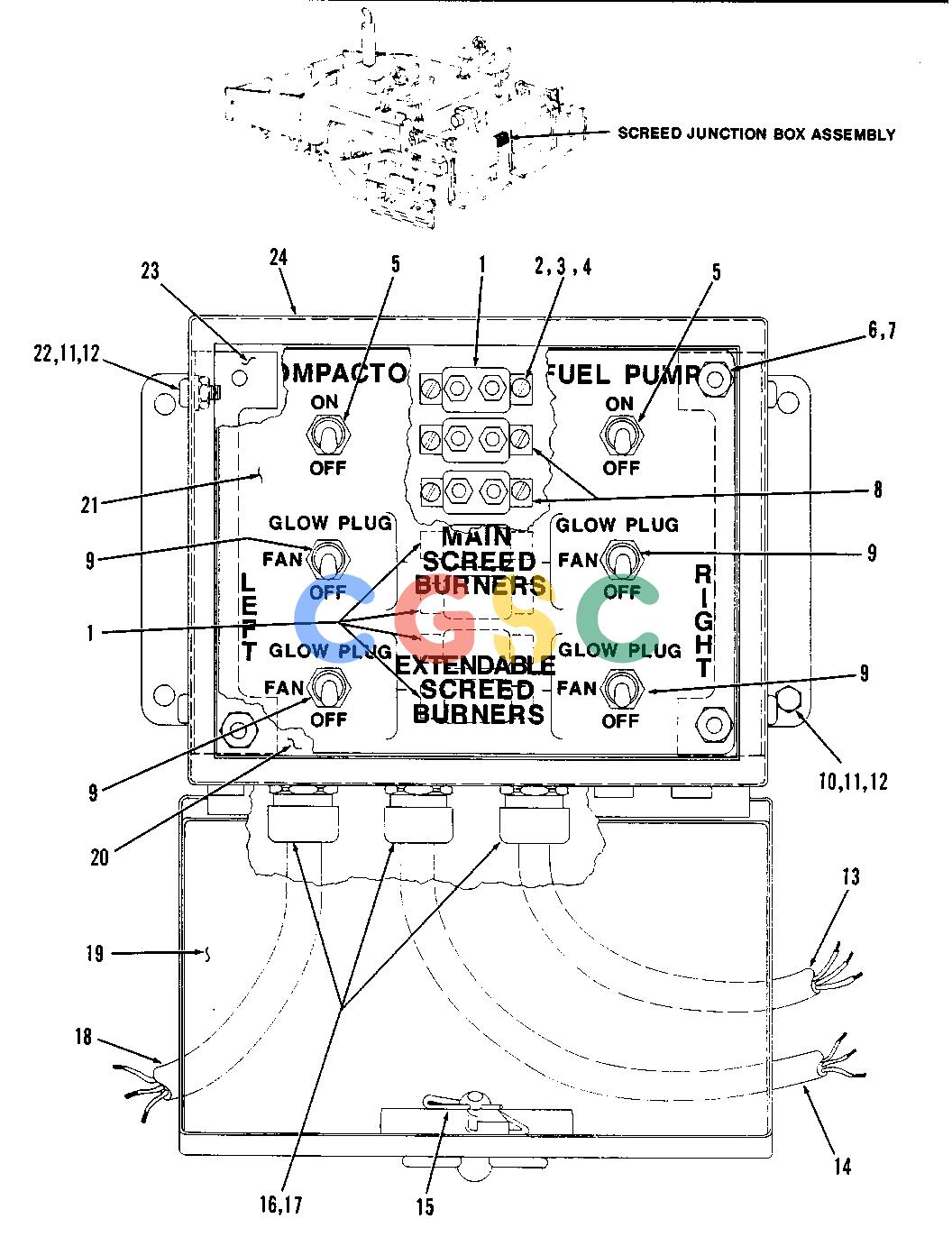

卡特零件查询（8） SCREED MAIN JUNCTION BOX ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
212 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | SCREED MAIN JUNCTION BOX ASSEMBLY |
| 1. | | [5] | BREAKER, CIRCUIT - 10 AMP |
| 2. | 7S-1201 | [14] | SCREW, PAN HD., #8-32 N.C. X 3/8IN. | |
| 3. | | [14] | LOCKWASHER, #8 |
| 4. | | [14] | NUT, HEX., #8-32 N.C. |
| 5. | | [2] | SWITCH, TOGGLE, 1TL1-2 |
| 6. | | [4] | SCREW, PAN HD., #10-32 N.F. X 3/4IN. |
| 7. | | [4] | NUT, ELASTIC STOP, #10-32 N.F. |
| 8. | | [2] | BREAKER, CIRCUIT - 40 AMP |
| 9. | | [4] | SWITCH, TOGGLE, 4TL1-50 |
| 10. | 0S-1616 | [4] | BOLT, HEX. HD., 1/4IN.-20 N.C. X 1IN. | |
| 11. | 3B-4504 | [8] | LOCKWASHER, 1/4IN. | |
| 12. | 1B-4330 | [8] | NUT, HEX., 1/4IN.-20 N.C. | |
| 13. | | [1] | RIGHT CONTROL CABLE |
| 14. | | [1] | POWER CABLE |
| 15. | | [1] | LATCH SPRING |
| 16. | | [3] | CONNECTOR, STRAIGHT (CGB) |
| 17. | | [3] | LOCKNUT |
| 18. | | [1] | LEFT CONTROL CABLE |
| 19. | | [1] | OPERATING INSTRUCTIONS (DECAL) |
| 20. | | [1] | FACE PLATE |
| 21. | | [1] | MAIN SCREED JUNCTION BOX (DECAL) |
| 22. | | [4] | SCREW, PAN HD., 1/4IN.-20 N.C. X 1/2IN. |
| 23. | | [2] | BRACKET, FACE PLATE |
| 24. | | [1] | JUNCTION BOX, MAIN SCREED |
